22 F37 Masport Rear Flued Room Sealed Freestanding Gas Heater
PARTS LIST
1) 560-920 Louvre Assy (Set) - Gold
560-922 Louvre Assy (Set) - Black
4) 730-038 Door Screen (Australia Only)
8) 730-560 Relief Door Assembly
10) 640-034 Mounting Plate Gasket
560-519/P Fan Assembly (240 V)
11) 910-169/P 556071 Fan Motor (240 V)
12) 910-714 560061 Power Cord (240 V)
Pedestal Assembly
16) 730-039 Pedestal Door
17) 904-257 551893 Pedestal Door Magnet
18) 560-025 Pedestal Back
910-073 Spark Generator Battery Holder
19) 730-530 Side Panel Door Assy (Right Side)
20) 730-525 Side Panel Door Assy (Left Side)
21) 560-031 560242 Side Panel Door Hinge
23) 904-258 551891 Side Panel Door Magnet
24) 948-255 556074 Door Latch - c/w J-Hook
25) * Flex Pipe (3" ID)
26) * Clamp for Flex Pipe
27) 910-233 560065 Fan Auto On/Off Thermodisc

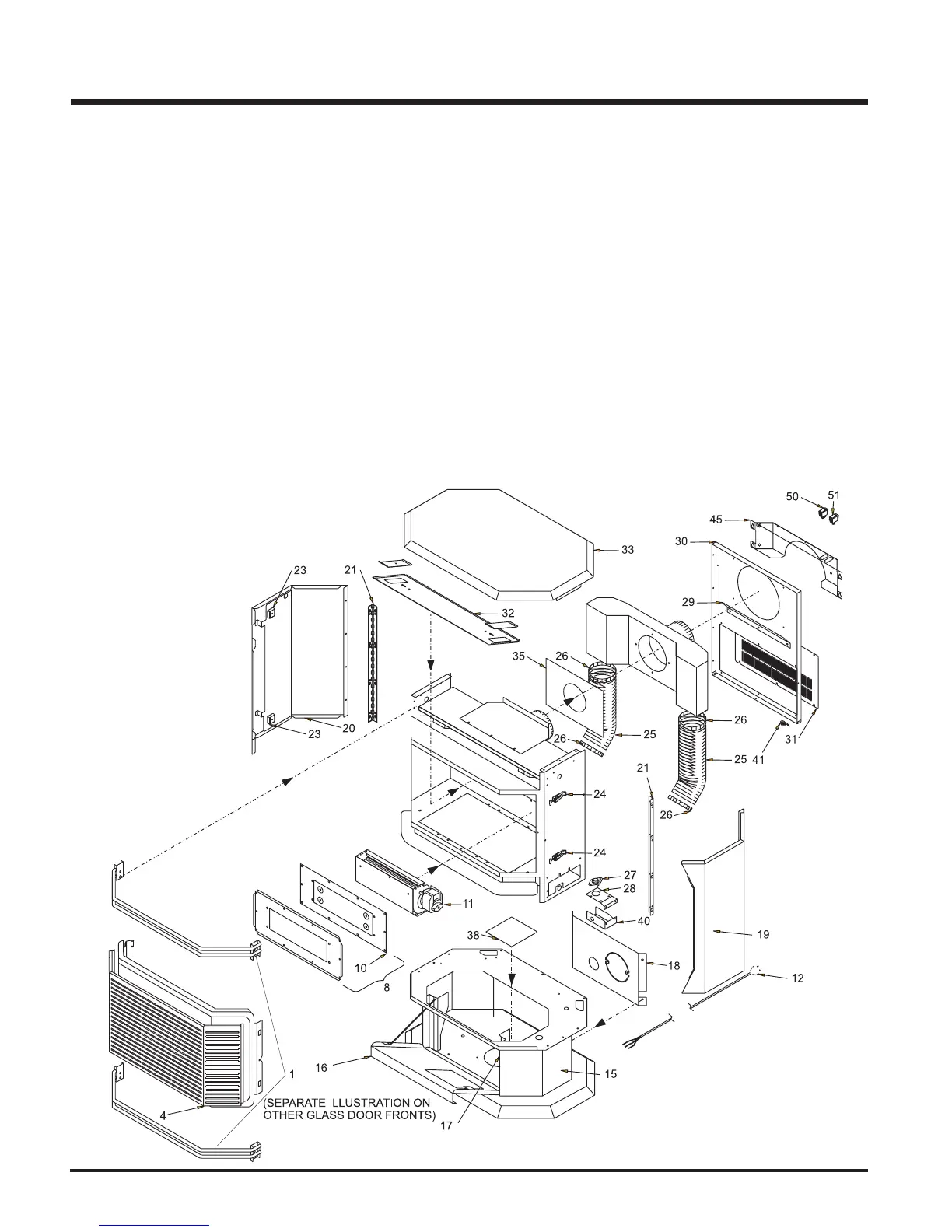

F37 MAIN ASSEMBLY
Part#: Aust. New Zealand Description Part#: Aust. New Zealand Description
28) * Mounting Bracket - Thermodisc
29) * Air Deflector
30) 680-030 Rear Panel
31) 630-021 Fan Access Panel
32) 730-565 Firebox Baffle/Restrictor Assembly
33) 640-520 False Top Assembly
35) 630-011 Air Passage Gasket
38) 820-058 556077 Pedestal Base Cover
40) 730-042 Thermodisc Cover
41) 904-185 Cable Tie - High Temperature
42) 904-186 Cable Tie Mounting Button
910-033 Heat Resistant Sleeve
45) 750-031 Rear Control Panel
50) 910-140 560036 Fan Hi/Off/Low Switch
51) 910-246 560024 Burner On/Off Switch
680-969 Conversion Kit - To LPG
948-217 Logo Plate
918-089 Decal - Top Rear Control Panel
918-080 Manual
*Not available as a replacement part.
