8 F37 Masport Rear Flued Room Sealed Freestanding Gas Heater
PLANNING YOUR FLUEING INSTALLATION
INSTALLATION
FLUEING
The Horizontal Termination Kit includes every-
thing required for a straight through the wall
installation, or add a 45
o
elbow for a corner
installation.
IMPORTANT
Read all instructions carefully before starting
the installation. Failure to follow these instruc-
tions may create a fire or other safety hazard,
and will void the warranty. Be sure to check the
fluing and clearance to combustible require-
ments on pages 6 to 9. Consult your local
building codes before beginning installation.
The location of the termination cap must con-
form to the requirements in the Exterior Flue
Terminal Locations diagram on page 7.
Refer to the Masport Flue Kit in-
structions supplied with each kit.
FLUEING
INSTALLATION
PRECAUTIONS
The Masport Room Sealed System are engi-
neered products that have been designed and
tested for use with the F37-NG, and F37-LPG.
The Masport warranty will be voided and seri-
ous fire, health or other safety hazards may
result from any of the following actions:
1) Installation of any damaged Room Sealed
component
2) Unauthorized modification of the Room
Sealed System
3) Installation of any component part not man-
ufactured or approved by Masport.
4) Installation other than as instructed by
Masport.
Warning: Always maintain required
clearances (air spaces) to nearby
combustibles to prevent a fire haz-
ard. Do not fill air spaces with insu-
lation.
The minimum clearance requirements between
the outer wall of the flue pipe and nearby
combustible surfaces is 40mm. Be sure to
check the flue termination clearance require-
ments from decks, windows, soffits, gas reg-
ulators, air supply inlets and public walkways
as specified on page 7 and in your local building
codes.
The gas appliance and flue system
must be flued directly to the outside
of the building, and never be at-
tached to a chimney serving a sep-
arate solid fuel or gas-burning ap-
pliance.
Each Room Sealed gas appliance must use its
own separate flue system. Common flue sys-
tems are prohibited.
SAFETY
PRECAUTIONS FOR
THE INSTALLER
1) Wear gloves and safety glasses for pro-
tection.
2) Exercise extreme caution when using lad-
ders or on roof tops.
3) Be aware of electrical wiring locations in
walls and ceilings.
See page 7 for Exterior Flue Termination
requirements.

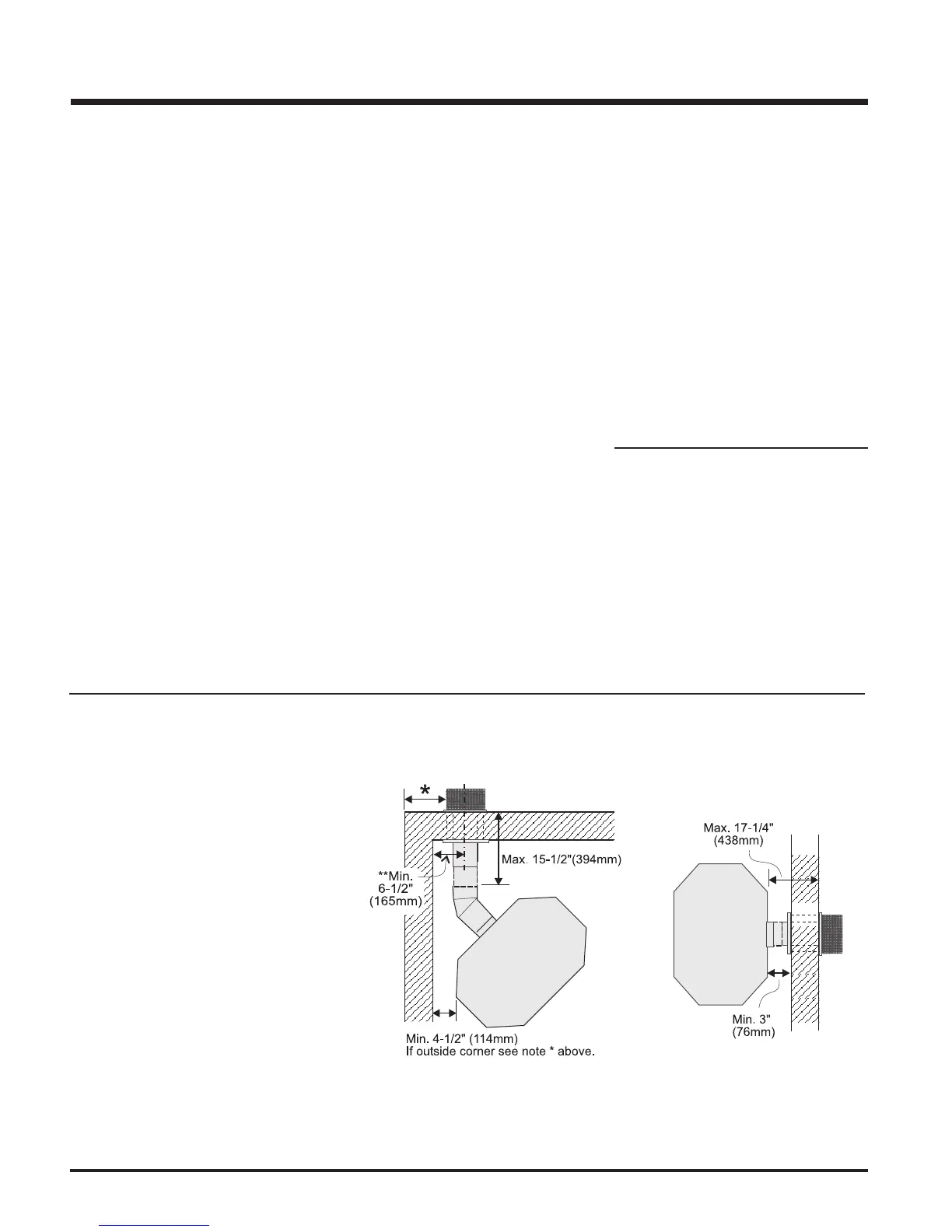

When planning your installation, it will be nec-
essary to select the proper length of flue pipe
for your particular requirements. Determine the
minimum clearance to combustibles from the
rear of the unit to the wall. It is also important to
note the wall thickness. Before cutting the flue
hole through the wall ensure that ALL flue and
termination clearances (see page 7) will be met.
*If this is an outside corner, the minimum distance between the flue and the outside corner
is 500mm. See "C" in the diagram on page 7.
NOTE: Ensure compliance with the outside flue
terminal location before cutting hole as both
dimensions must be met.
For corner installation, Restrictor must
be set at 1-1/4" (32mm) open.
For straight rear installation, Restrictor
must be set at 1-1/8" (28.5mm) open.
