F37 Masport Rear Flued Room Sealed Freestanding Gas Heater 9
INSTALLATION
FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
FOR BOTH RESIDENTIAL & MANUFACTURED HOMES/MOBILE HOMES
Offset to Vertical Terminations
Vertical Terminations

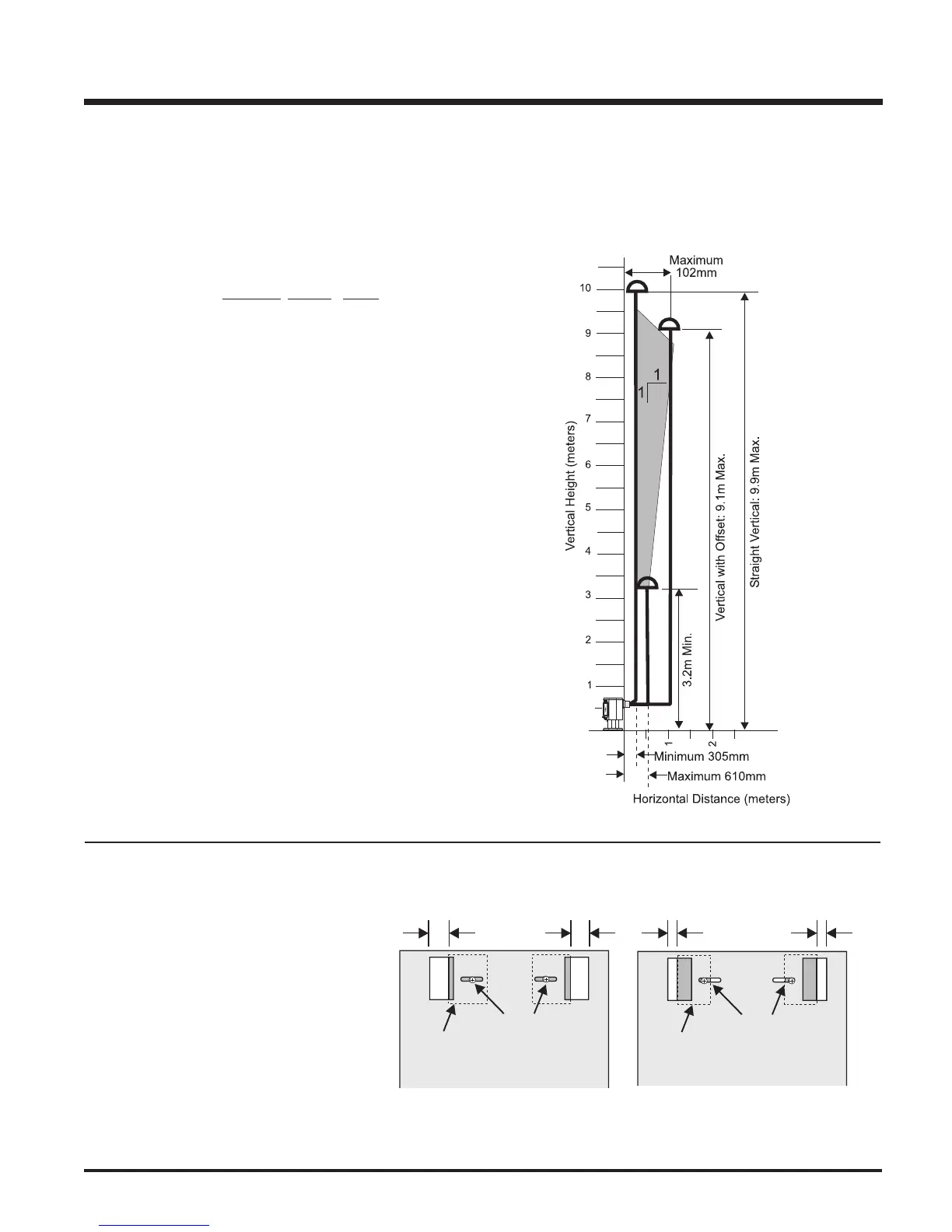

The shaded areas in the two diagrams below show all allowable
combinations of straight vertical and offset to vertical runs with
vertical terminations. Maximum one 90
o
elbow. All vertical and
offset to vertical flue installations require Flue Restrictor to be set to 32mm
open. If the flue is ENCLOSED in a chase (min. size 255mm x 255mm)
maintain a 40mm clearance to combustibles.
Flue Restrictor Position
Vent Restrictor
Vent
Restrictor
Plate
Vent Restrictor
(fully open)
Vent
Restrictor
Plate
44.5mm 44.5mm
32mm 32mm
To set the Flue restriction as indicated in the
diagram, simply loosen the screws and push
the flue restrictor plate to the correct position.
Tighten the screws.
