Master Forge MFX784BDP User Manual

12
ASSEMBLY INSTRUCTIONS
Lowes.com/masterforge
1
2
18
S
17
R

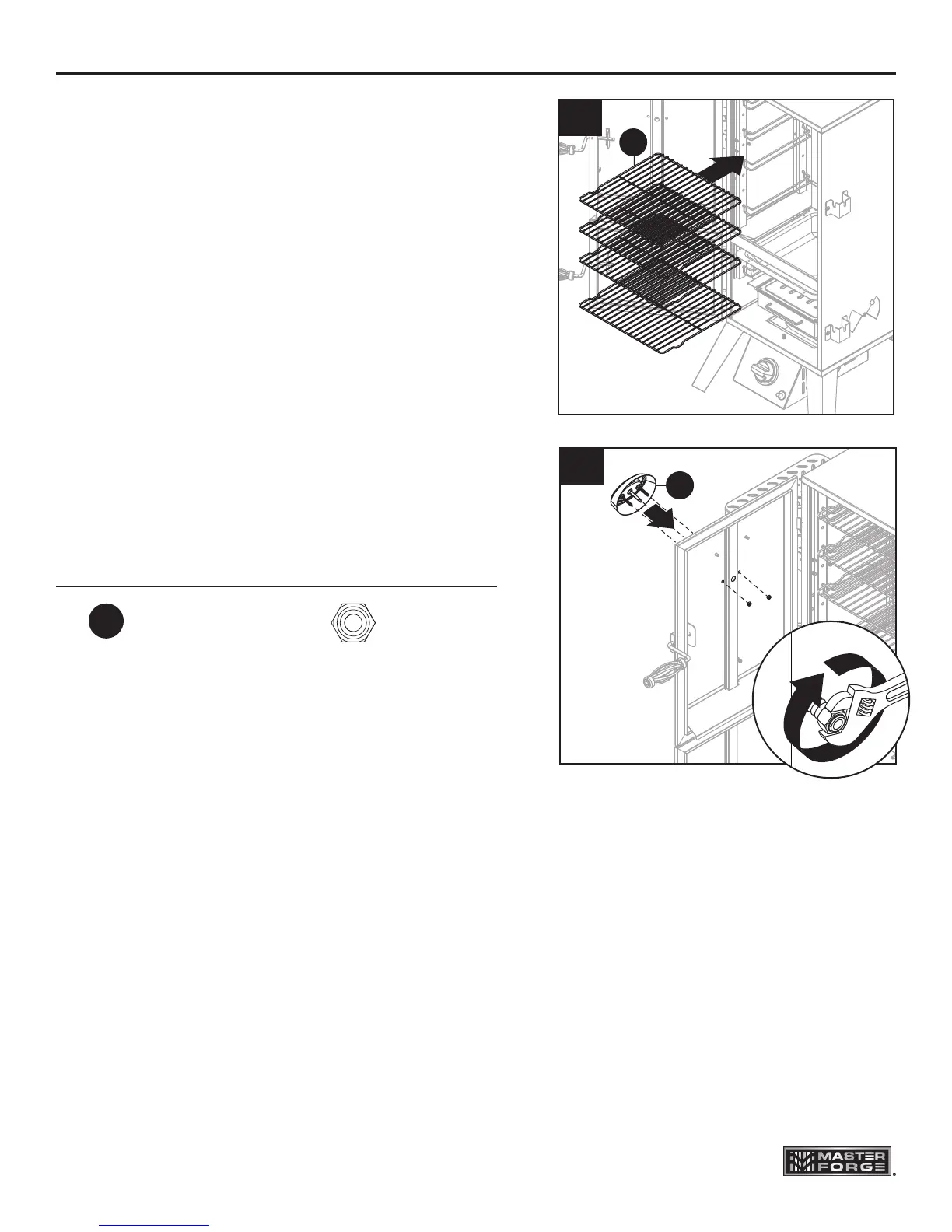

17. Slide the four cooking grates (R) into the top
cooking grate supports (T) inside the smoker
body(K).
18. Insert the probe of the temperature gauge
assembly (S) through hole in top door (U) from
the outside. Secure using two M5 nuts (DD) on
inside panel. Tighten with wrench.
Hardware Used
M5 Nut
x2
DD
M6x12 Bolt
Qty. 34
M5x12 Bolt
Qty. 8
Spring Clip
Qty. 2
M5 Nut
Qty. 2
AA
BB CC
DD

Master Forge MFX784BDP Specifications

General

Brand	Master Forge
Model	MFX784BDP
Category	Grill
Language	English
