8
ITA
8. Collegamento elettrico
CAVO FUNZIONE COLORE
RD +24V ROSSO / RED
BK GND NERO / BLACK
YE OPEN GIALLO / YELLOW
GN CLOSE VERDE / GREEN
BN REED / ALARM MARRONE / BROWN
WH LIN-DATA BIANCO / WHITE

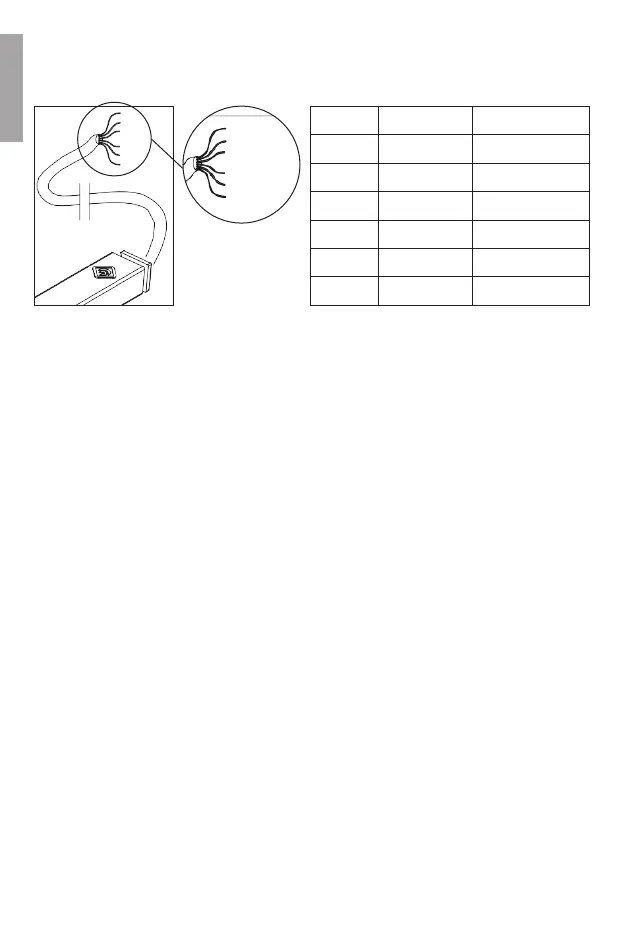

Le motorizzazioni sono corredate con cavo a 6 poli. Per la funzione di ogni singolo cavo vedi tabella seguente.
RD rosso
BK nero
YE giallo
GN verde
BN marrone
WH bianco
1. Connessione per il singolo attuatore: RD to 24V; BK to GND; YE to OPEN; GN to CLOSE
2. Connessione per più attuatori:
A) Master RD to 24V; BK to GND; YE to OPEN; GN to CLOSE; WH to LIN-DATA
B) Slave RD to 24V; BK to GND; WH to LIN-DATA
3. Per altre configurazioni vedi allegati a fine manuale
