MasterCraft csx 220 User Manual

ma r i sta r 230, X -30
40
27
26
25
24
23
14
06
05
10
21
20
22
04
17
30
35
36
39

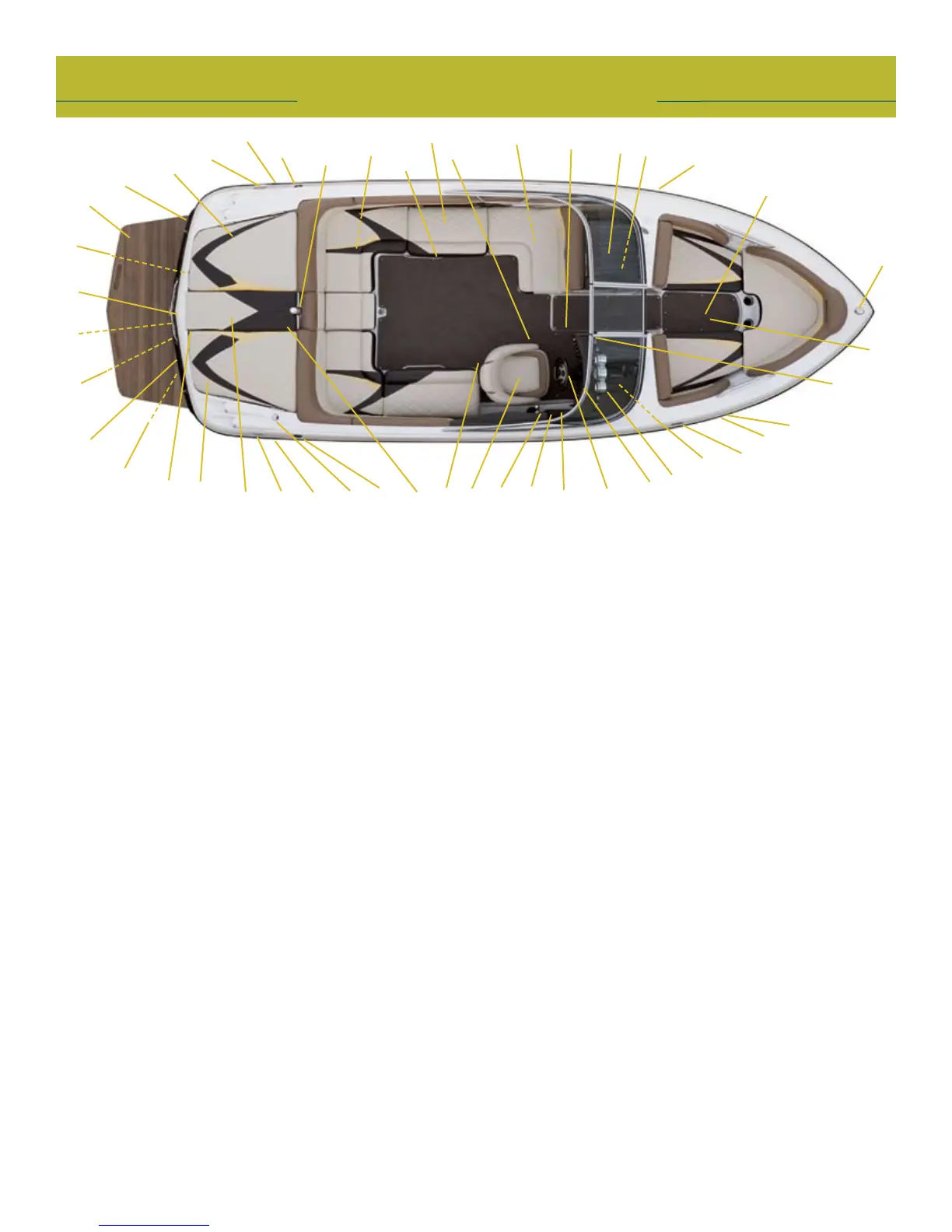

01 Bow light
 02 Bowllercushion(where equipped)
03 Bow cleat
04 Stereo CD Player (inside glove box, where equipped); Sirius
Satellite Radio
(where equipped)
05 Glove box
06 Walk-thru seat (where equipped)
07 Amp (where equipped)
 08 Hand-heldreextinguisher(beneath observer seat)
09 Heated observer seat (where equipped)
10 Center drain plug
11 Cooler (located under seat)
12 Cockpit table mount (where equipped)
13 Batteries (including ON-OFF switch)
14 Ski pylon
 15 Fueltankller
16 Ballast thru-hull vent
17 Stern cleat
 18 Ballasttanklocatedbeneathoorboard
19 Wake adjustment plate (located under swim platform, where
equipped)
20 Swim platform
21 Engine exhaust
22 Transom rail with tow eye
23 Transom drain plug (center beneath swim platform)
24 Under-platform ladder (where equipped)
25 Transom stereo remote (where equipped)
26 Underwater lights (two where equipped under swim platform)
27 Shower wand and switch/Slick Boot wand and switch (where
equipped, inside compartment)
 28 Ballasttanklocatedbeneathoorboard
29 Engine compartment
30 Stern cleat
31 Bilge thru-hull vent
32 Stern light receptacle (if equipped with tower, the light will be in
center aft of tower)
 33 Fueltankller
 34 Automaticreextinguisher
35 Subwoofer
36 Heated seat (where equipped)
37 Armrest stereo remote
38 Shift/throttle control
39 iPod interface (where equipped)
40 Steering wheel
41 Fire suppression unit manual override
42 Instrument panel (details elsewhere in this section)
43 Circuit breaker panel (on kick panel beneath instrument panel)
44 Ballast thru-hull vent
45 Bilge thru-hull outlet
46 Adjustable mirror
47 Bow cleat
 48 Ballasttanklocatedbeneathoorboard 
Boats may also be equipped with towers (standard on X-30),
which may include stereo speakers, lights and/or
tower-mounted mirror
Storage space is located:
Under observer’s seat
Under bow seating
Under aft and wrap-around seating
Under port and starboard sun pads
mastercraft 2010 ow n e r ’s m anual • page 4-8
13
38
03
02
31
34
37
19
01
15
29
32
07, 08, 09
12
16
33
41
42
43
44
45
18
11
28
46
47
48
