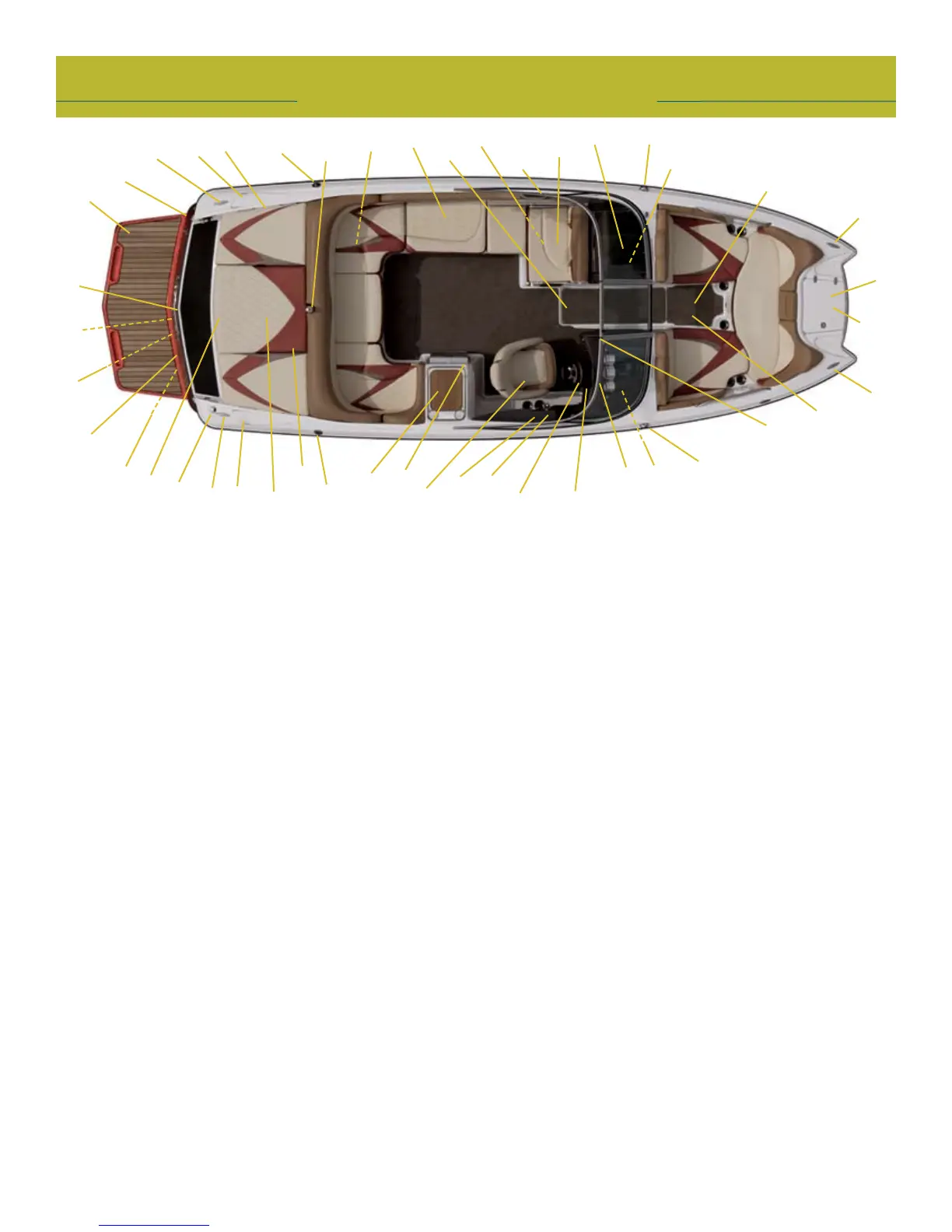

01 Bow cleat
 02 Bowllercushion(where equipped)
03 Stereo CD Player (inside glove box, where equipped); Sirius
Satellite Radio (where equipped)
04 Amp (where equipped)
05 iPod interface (where equipped)
06 Nav/anchor light
07 Glove box
08 Convertible observer’s seat
09 Subwoofer (where equipped)
10 Hand-heldreextinguisher(beneath observer seat)
11 Center drain plug
12 Cooler (located under seat)
13 Batteries (including ON-OFF switch)
14 Ski pylon
 15 Fueltankller
16 Freshwater tank (in locker, where equipped)
17 Engine exhaust (two, on top of port and starboard deck near
transom)
18 Stern cleat
19 Wake adjustment plate (located under swim platform, where
equipped)
20 Swim platform
21 Transom rail with tow eye
22 Transom drain plug (center beneath swim platform)
23 Under-platform ladder (where equipped)
24 Transom stereo remote (where equipped)
25 Underwater lights (four where equipped under swim platform)
26 Shower wand and switch/Slick Boot wand and switch (where
equipped, inside compartment)
27 Stern light receptacle (if equipped with tower, the light will be in
center aft of tower)
28 Stern cleat
29 Engine exhaust (two, on top of port and starboard deck near
transom)
30 Engine compartment
 31 Automaticreextinguisher
 32 Fueltankller
33 Sink and shower (where equipped)
34 Upright refrigerator (under sink, where equipped)
35 Heated seat (where equipped)
36 Armrest stereo remote
37 Shift/throttle control
38 Steering wheel
39 Fire suppression unit manual override
40 Instrument panel (details elsewhere in this section)
41 Circuit breaker panel (on kick panel beneath instrument panel)
42 Nav/anchor light
43 Adjustable mirror
 44 Ballasttanklocatedbeneathoorboard
45 Bow cleat
46 Ladder
47 Anchor
Boats may also be equipped with towers (standard on X-35),
which may include stereo speakers, lights and/or
tower-mounted mirror
Storage space is located:
Under observer’s seat
Under bow seating
Under aft and wrap-around seating
Under port and starboard sun pads
mastercraft 2010 ow n e r ’s m anual • page 4-9
