MasterCraft csx 220 User Manual

ma r i sta r 245, X-45
45
31
29
28
27
26
25
16
05
04
12
20
22
24
03
18
33
35
38
41
44

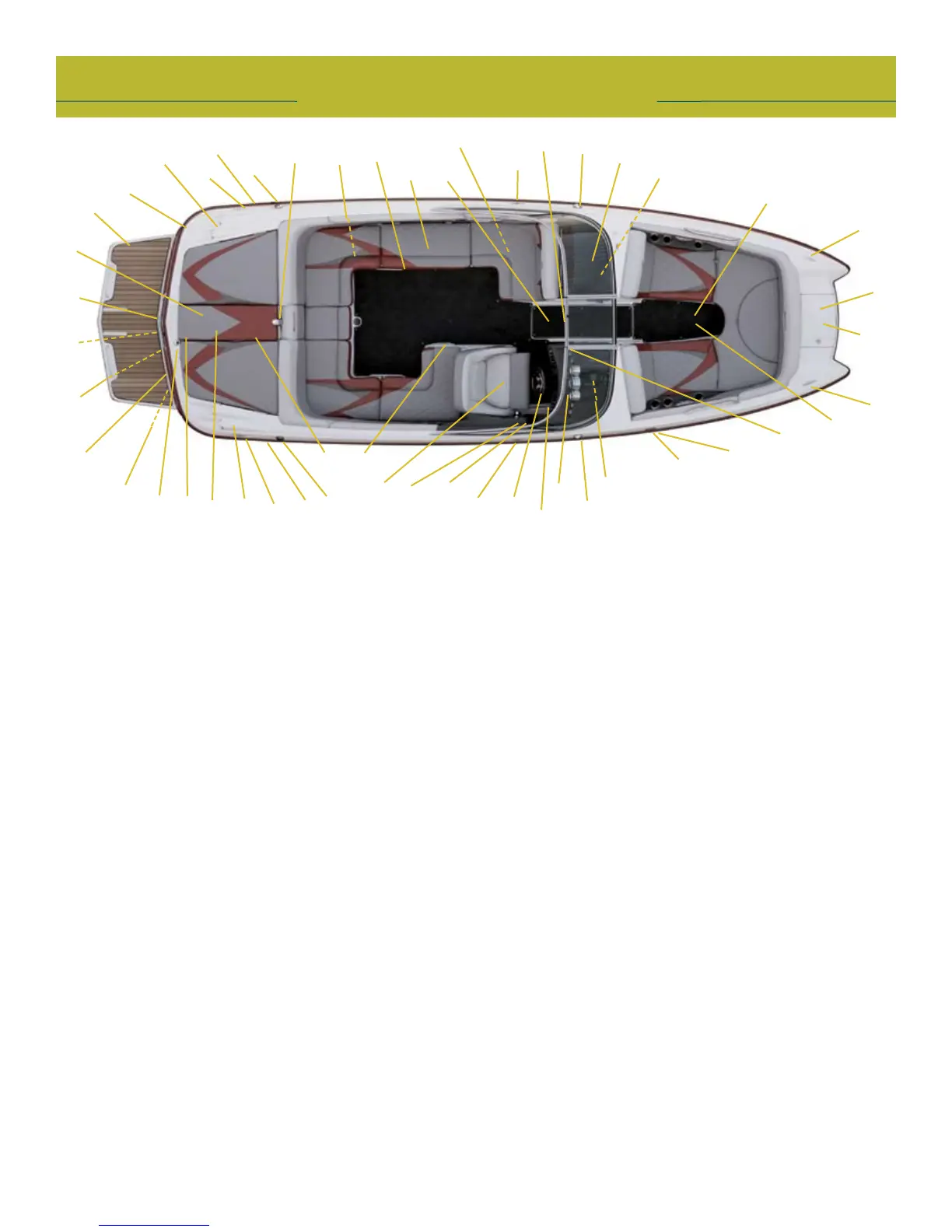

01 Bow cleat
 02 Bowllercushion(where equipped)
03 Stereo CD Player (inside glove box, where equipped); Sirius
Satellite Radio (where equipped)
04 Glove box
05 Nav/anchor light
06 Center drain plug
07 Midship cleat
08 Amp (where equipped)
09 iPod interface (where equipped)
 10 Hand-heldreextinguisher(beneath observer seat)
11 Heated observer seat (where equipped)
12 Walk-thru seat (where equipped)
13 Cooler (located under seat)
14 Cockpit table mount (where equipped)
15 Batteries (including ON-OFF switch)
16 Ski pylon
 17 Fueltankller
18 Ballast thru-hull vent
19 Stern cleat
20 Engine exhaust (two, on top of port and starboard deck near
transom)
21 Wake adjustment plate (located under swim platform, where
equipped)
22 Swim platform
 23 Sundeckllercushion
24 Transom rail with tow eye
25 Transom drain plug
(center beneath swim platform)
26 Under-platform ladder (where equipped)
27 Transom stereo remote (where equipped)
28 Underwater lights (two where equipped under swim platform)
29 Stern light receptacle (if equipped with tower, the light will be in
center aft of tower)
30 Shower wand and switch/Slick Boot wand and switch (where
equipped, inside compartment)
31 Engine compartment
32 Engine exhaust (two, on top of port and starboard deck near
transom)
33 Stern cleat
34 Bilge thru-hull vent
 35 Fueltankller
 36 Automaticreextinguisher
37 Subwoofer
38 Heated seat (where equipped)
39 Armrest stereo remote
40 Shift/throttle control
41 Midship cleat
42 Steering wheel
43 Fire suppression unit manual override
44 Instrument panel (details elsewhere in this section)
45 Nav/anchor light
46 Circuit breaker panel (on kick panel beneath instrument panel)
47 Ballast thru-hull vent
48 Bilge thru-hull outlet
49 Adjustable mirror
 50 Ballasttanklocatedbeneathoorboard
51 Bow cleat
52 Ladder
53 Anchor
Boats may also be equipped with towers (standard on X-45),
which may include stereo speakers, lights and/or
tower-mounted mirror
Storage space is located:
Under observer’s seat
Under bow seating
Under aft and wrap-around seating
Under port and starboard sun pads
mastercraft 2010 ow n e r ’s m anual • page 4-10
15
43
01
02
34
36
42
21
51
17
50
23
32
07
37
06
08, 09, 10, 11
13
14
19
30
39
40
46
47
49
48
52
53
