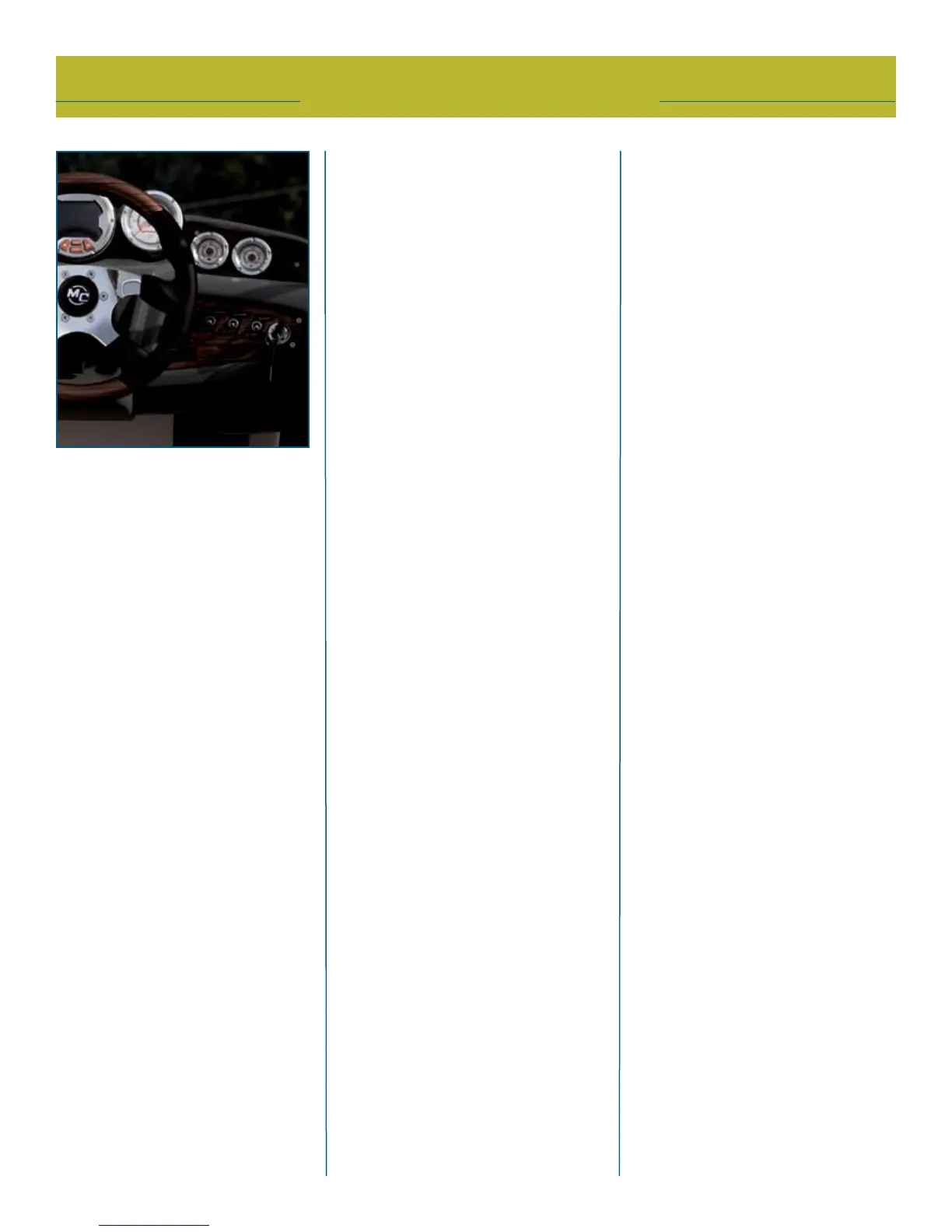

i n st rum e n t pane l s
ProStar 190, ProStar 197, X-1, X-7,
ProStar 214, X-14, 214V, X-14V
Top row of gauges from left:
Oil pressure gauge
Engine temperature gauge
Speedometer
Multi-function/tachometer
Speedometer or Perfect Pass
Voltmeter
Fuel gauge
Lower left panel:
Horn
Seat Heat switch
Heater switch
Courtesy lights switch
Lower right panel:
Speedo adjustment switch
Nav/anchor lights switch
Bilge pump switch
Blower switch
Ignition key slot
X-Star, MariStar 280, X-80
Top row of gauges from left:
Tachometer
Speedometer
Video display gauge
Middle left panel:
Oil pressure gauge
Engine temperature gauge
Middle right panel:
Voltmeter
Fuel gauge
Lower left panel:
Horn
Courtesy lights switch
Shower switch
Heater switch
Ballast port switch
Ballast KGB switch
Ballast starboard switch
Lower right panel:
Tower light switch
Blower switch
Bilge pump switch
Nav/anchor lights switch
Ignition switch
MariStar 200, MariStar 215,
MariStar 230, MariStar 245, X-2,
X-15,X-30, X-45
Top row of gauges from left:
Oil pressure gauge
Engine temperature gauge
Video display gauge (where equipped)
Speedometer
Perfect Pass (option)
Fuel gauge
Voltmeter
Lower left panel:
Horn
Seat heat switch
Heater switch
Wash down switch
Courtesy lights switch
12-volt receptacle
Lower right panel:
Display selector switch
Nav/anchor lights switch
Forward bilge switch
Aft bilge switch
Blower switch
Ignition key slot
MariStar 235, X-35, 255, X-55
Top row of gauges from left:
Oil pressure gauge
Engine temperature gauge
Tachometer gauge
Speedometer with display
Unused billet ller
Fuel gauge
Voltmeter
Top row of gauges from left with optional
Video Display:
Oil pressure gauge
Engine temperature gauge
Tachometer gauge
Video Display Screen
Speedometer gauge
Fuel gauge
Voltmeter
Lower left panel:
Horn
Seat Heat switch
Heater switch
Wash down switch
Courtesy lights switch
12-volt receptacle
Lower right panel:
Display “Disp” switch
(on Video Display Screen-equipped, dash
dimmer)
Nav/anchor lights switch
Forward bilge switch
Aft bilge switch
Blower switch
Ignition key slot
CSX 265
Gauge panel upper:
Port engine tachometer
Video display gauge
Starboard engine tachometer
Gauge panel lower:
Port engine multiple gauge: gas (upper left);
voltmeter (upper right); engine temperature
(lower left); oil pressure (lower right).
Starboard engine multiple gauge: gas (upper
left); voltmeter (upper right); engine temper-
ature (lower left); oil pressure (lower right).
Switch panel, upper row:
Navigation/anchor light switch
Courtesy light switch
Tower light switch, foreward
Tower light switch, aft
Switch panel, lower row:
Three (3) bilge switches
Blower switch
Engine hatch switch
CSX 220
Upper panel:
Tachometer
Speedometer
Perfect Pass (option)
Display selector (multi-purpose gauge)
Starboard switch: speedometer calibration
Engine temperature gauge
Oil temperature gauge
Voltmeter
Fuel gauge
Port side switches, top row from left:
Navigation/anchor light switch
Forward/aft tower light switch
Courtesy light switch
Port side switchs, bottom row from left:
Forward bilge auto/manual switch
Aft bilge auto/manual switch
Freshwater switch
Up/down motor box hatch actuator switch
On/off bilge blower switch
Center switches:
Port ballast system ll/empty switch
KGB ballast system ll/empty switch
Starboard ballast system ll/empty switch
Starboard side console:
Glovebox
Garmin GPS/chartplotter/sounder (op-
tional)
Clarion stereo AM/FM radio and CD player
(optional)
12-volt courtesy outlet
MP3/iPod input
Below steering helm:
Emergency engine safety switch
Ignition switch
mastercraft 2010 ow n e r ’s m anual • page 4-16
