MasterCraft csx 220 User Manual

cs X 265
46
27
26
22
21
19
30
28
38
11
45

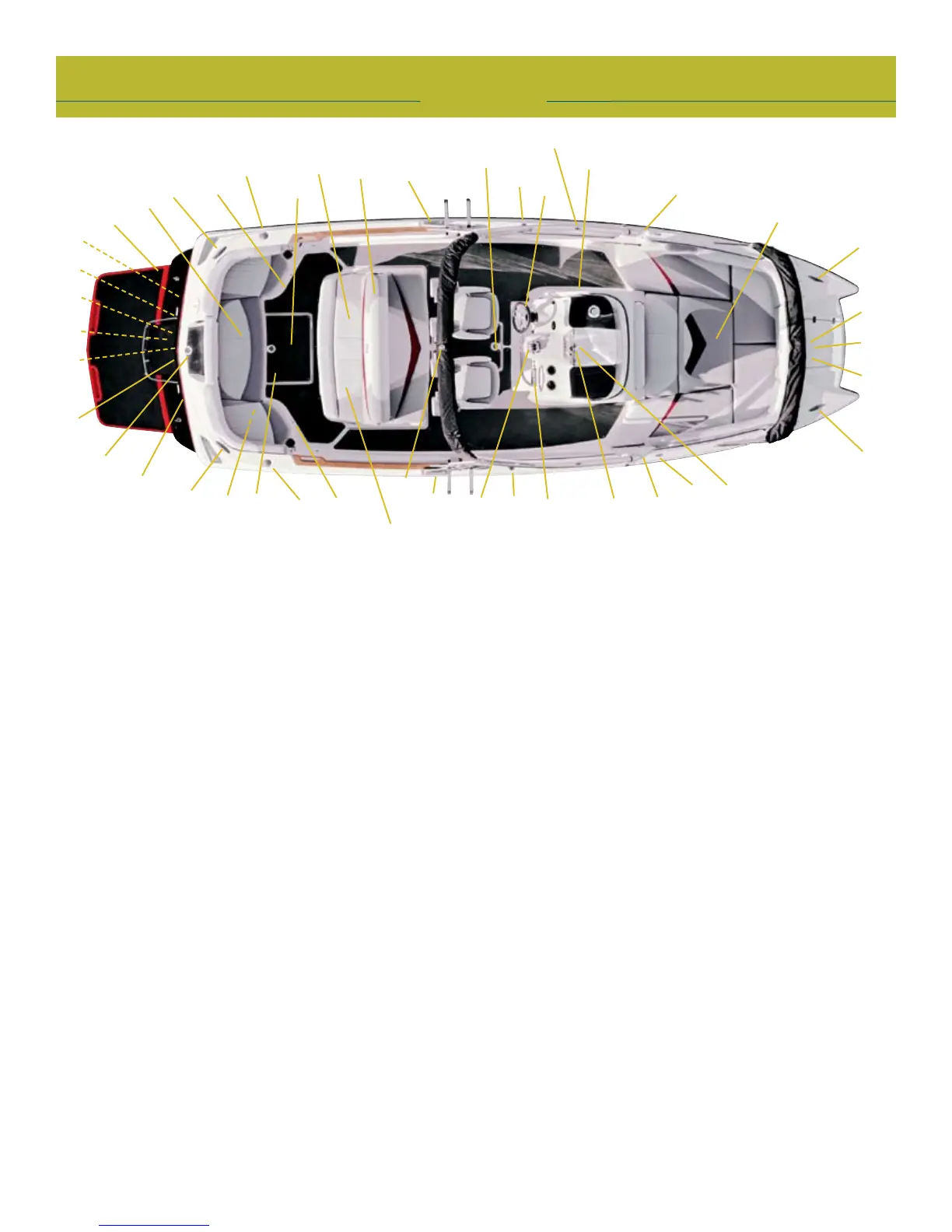

01 Bow cleat
 02 Bowllercushion
03 Bow chaise lounge seating (where equipped)
04 Sirius Satellite Radio antenna (where equipped)
04 Circuit breaker panel
05 Head
06 Circuit breaker panel (located inside head)
07 Amp (where equipped)
08 iPod interface (where equipped)
 09 Hand-heldreextinguishers(insidehead)
10 Nav/anchor light
11 Steering wheel
12 Holding tank pump-out
13 Center drain plug (beneath seating)
14 Midship cleat
 15 Automaticreextinguisher
16 Engine compartment and seacock (sea strainer) access
 17 Freshwaterushport
 18 Fueltankller
19 Subwoofer
20 Stern cleat
21 Cooler
22 Swim platform
23 Engine exhaust
24 Under-platform ladder (where equipped)
25 Telescopic, removable dive ladder (where equipped)
26 Zinc anode bonding system (under swim platform)
27 Transom drain plug (center, beneath swim platform)
28 Underwater lights (two where equipped, under swim platform)
29 Ski pylon
30 Transom stereo remote (where equipped)
31 Stern cleat
32 Battery circuit breaker panel (including batteries ON-OFF switch)
33 Batteries
 34 Fueltankller
35 Subwoofer
36 Shower, sink and cooler access; shower wand and switch/
(where equipped)
37 Water heater (where equipped)
38 Anchor light
39 Midship cleat
40 Shift/throttle control
 41 Freshwatertankll
42 Stereo CD Player (where equipped); Sirius Satellite Radio (where
equipped)
43 Instrument panel (details elsewhere in this section)
44 Nav/anchor light
45 GPS antenna
46 Windshield-mounted mirror
47 Bow cleat
48 Bow ladder
49 Anchor (where equipped)
50 Windlass (where equipped)
Boats may be equipped with towers, which include a storage box,
red & white dome lights, navigation lights, and may also
have cockpit oodlights and/or Xtreme mirror
Storage space is located:
Between helm seats
Inside consol
Under bow seating
Under aft seating
(Atpresstime,thenaldeterminationofthelocationoftheresuppres-
sionsystemmanualoverridehadnotbeennalized.Priortooperating
theboatforthersttime,theboatownermustdeterminethisinformation
fromanauthorizedMasterCraftdealer.)
mastercraft 2010 ow n e r ’s m anual • page 4-15
32, 33
01
02, 03
36, 37
42
49
17
47
13
15
29
39
44
04
23
48
05, 06, 07, 08, 09
14
35
12
16
18
20
24
34
40
41
43
10
25
31
50
