Mastervolt chargemaster plus 12/100-3

15
 Socket wrench 10mm to fix the Safety ground
connection
 Flat blade screw driver 1.0 x 4.0 mm to fix the screw
terminals of the AC wiring
 Tools to fix the screws / bolts (Ø 6mm) with plugs to
mount the enclosure to a surface
 Philips screw driver nr. 2 to open the connection
compartment

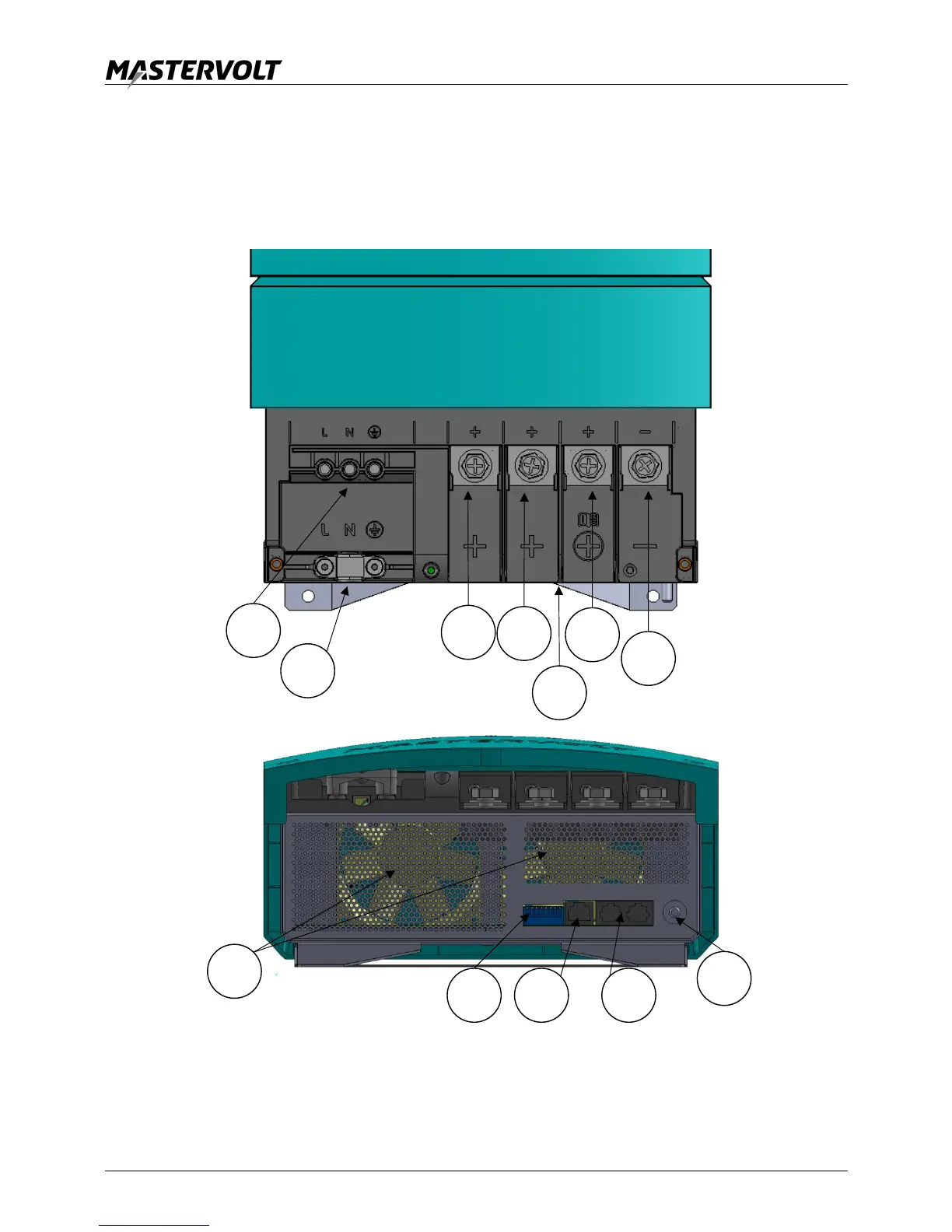

4.6 OVERVIEW CONNECTION COMPARTMENT
1
Screw terminals AC input
7
Common negative output terminal
2
Cable clip for AC-wiring
8
Ventilation openings
3
Isolation walls for DC connections
9
DIP-switches
4
Positive terminal charge output 1
10
Temperature sensor connection
5
Positive terminal charge output 2
11
MasterBus connection
6
Positive terminal charge Smart terminal
12
Safety ground connection
1
2
3
4
5
6
7
8
9
10
11
12
Figure 5:
connection
compartment
