4.9 COMMISSIONING AFTER INSTALLATION
4.9.1 General
When your ChargeMaster Plus is not new,
you have to take into account that former
users may have changed the settings. Reset
the ChargeMaster Plus back to factory
settings when there is any doubt (see section
5.2).
The factory settings of the ChargeMaster Plus are optimal
for most installations. With some applications however, it
is desirable to change these settings. Therefore several
adjustments can be made. See chapter 5
NOTE:
The DIP-switches must be adjusted prior to
commissioning; all other settings can only be
made after commissioning.

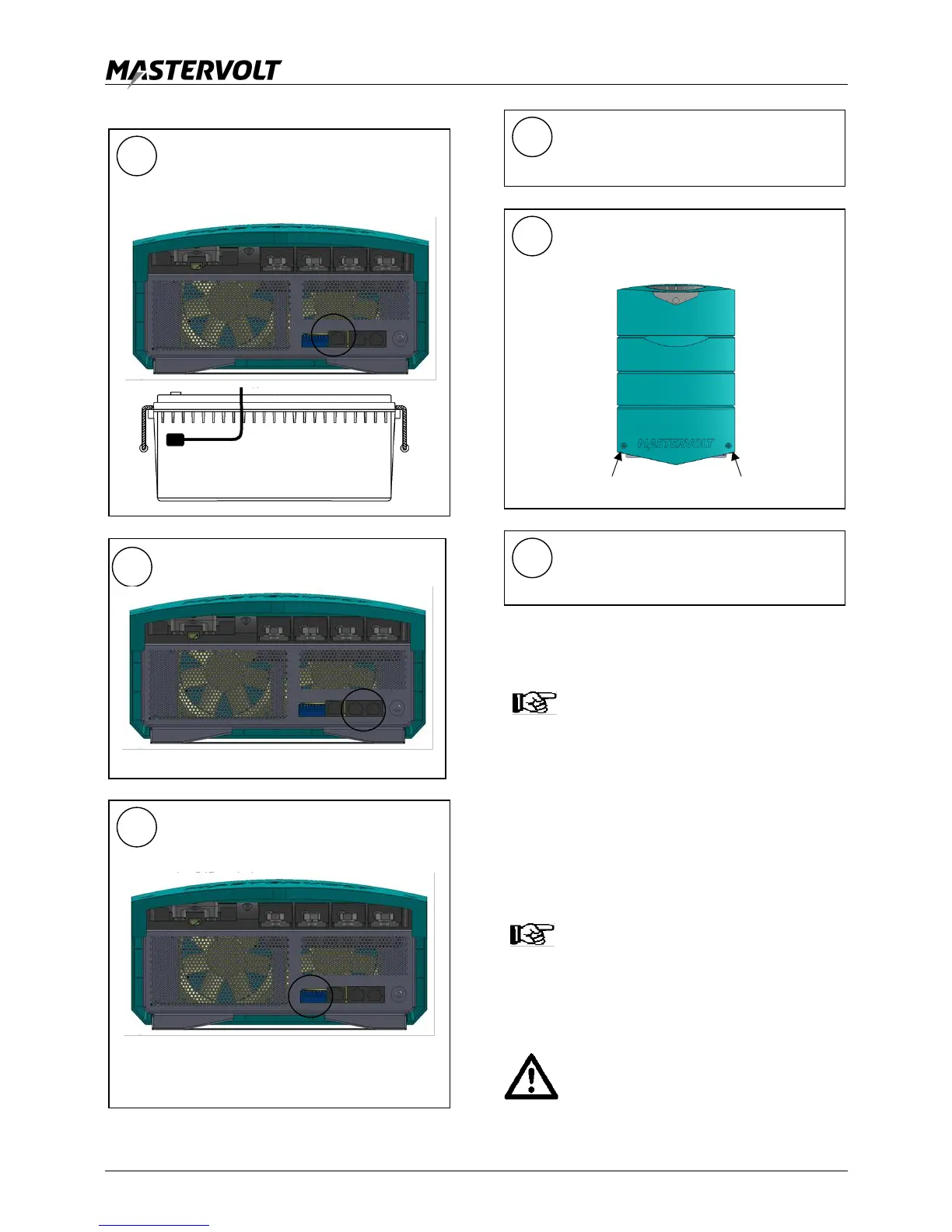

4.9.2 Commissioning step-by-step
CAUTION!
Check the polarity of all wiring before
commissioning: positive connected to positive
(red cables), negative connected to negative
(black cables).
9
Attach the battery temperature sensor to the
casing of battery bank 1.
Plug the temperature sensor cable into the
“temp.sensor” jack.
Option: Connect the ChargeMaster to the
MasterBus network.
10
11
If required, change DIP-settings. See section
5.1 for adjustment.
Use a small screw driver for adjustment of
the DIP-switches.
12
Check all wiring; see also figure 6 for wiring
details.
13
Close the connection compartment by fixing
the four screws.
14
Continue with section 4.9 for commissioning
of the ChargeMaster.
