Mastervolt chargemaster plus 12/100-3 User Manual

10

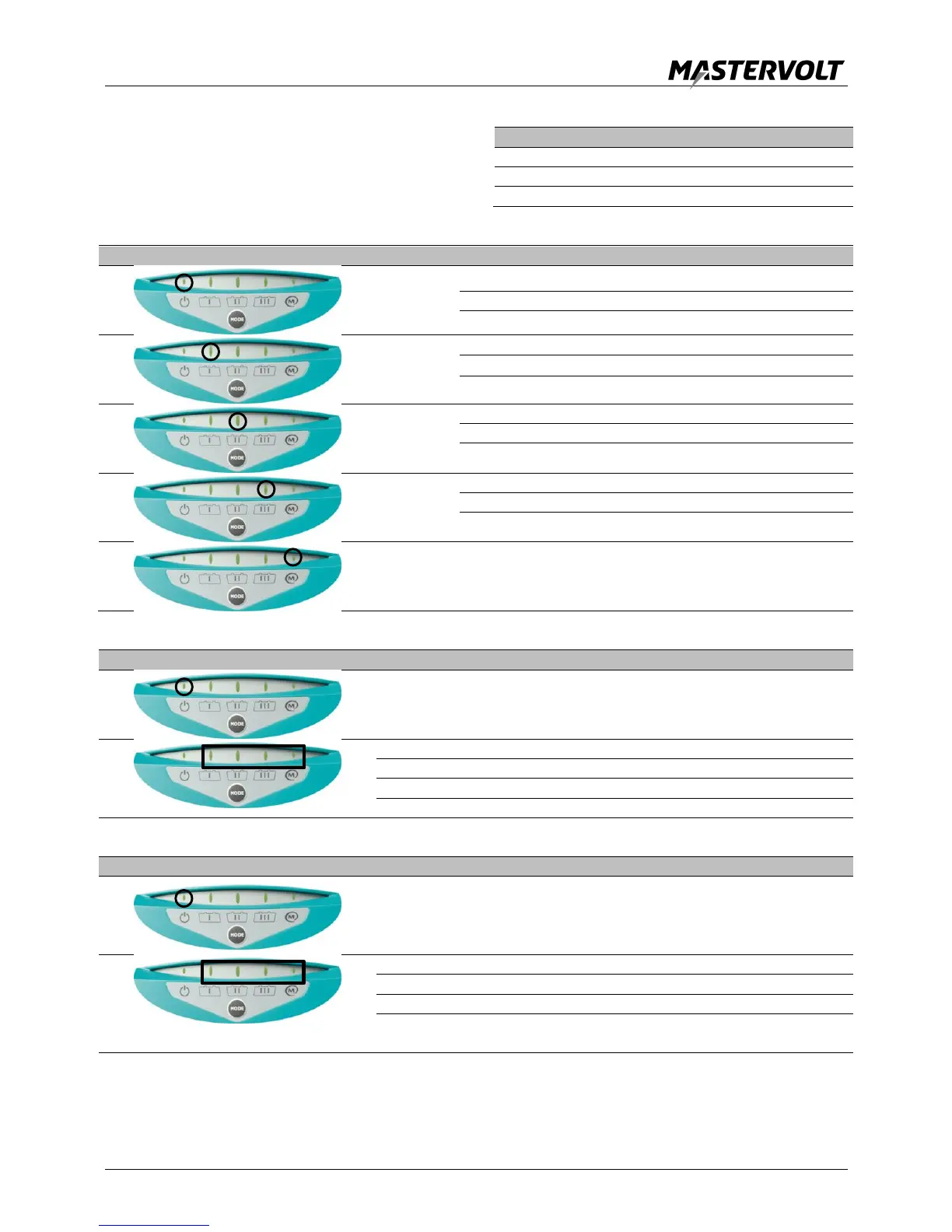

3.3 STATUS-DISPLAY
The status display has a 3 level menu. Menu navigation is
done by shortly pressing the MODE switch. After each
press the next menu level is shown. The MODE LED color
indicates the level that is being shown.
Menu
MODE LED color
Meaning
Level 1
Green
Status menu
Level 2
Orange
Output power menu
Level 3
Red
Error menu
3.3.1 Status
Display
LED
State
Meaning
MODE
Solid green
ChargeMaster Plus on
Solid red
ChargeMaster Plus stand-by
Blink fast red
Error, navigate to error menu
Battery I
Blinking medium fast green
Battery in bulk stage
Blinking slow green
Battery absorption stage
Solid green
Battery in float stage
Battery II
Blinking medium fast green
Battery in bulk stage
Blinking slow green
Battery absorption stage
Solid green
Battery in float stage
Battery III
Blinking medium fast green
Battery in bulk stage
Blinking slow green
Battery absorption stage
Solid green
Battery in float stage
MasterBus
Blinking green
MasterBus communication
3.3.2 Output power
Display
LED
State
Meaning
MODE
Solid orange
Output power menu
Battery I
Solid orange
Total output power 0-25%
Battery II
Solid orange
Total output power 26-50%
Battery III
Solid orange
Total output power 51-75%
MasterBus
Solid orange
Total output power 76-100%
3.3.3 Error
Error
LED
State
Meaning
What to do
MODE
Blink fast red
Error menu
Battery I
Blink fast red
Reverse polarity
Check battery connection
Battery II
Blink fast red
AC error
Check AC voltage/frequency
Battery III
Blink fast red
DC error
Check battery voltage
MasterBus
Blink fast red
Temperature
sense error
Check temperature sensor
