CombiMaster 120V Series – User and Installation Manual
19
5 SETTINGS
Adjustment of the settings of the CombiMaster Inverter/Charger can be made in two different ways:
• By means of DIP switches.
• From a laptop connected to the CombiMaster Inverter/Charger via a USB Interface. Some settings,
like the AC IN Limit setting for example, can only be changed in this way.
CAUTION!
Invalid settings of the CombiMaster Inverter/Charger can cause serious damage to your
batteries and/or the connected load! Adjustment of settings must be carried out by authorized
personnel only.
5.1 DIP switch settings
Use a small screwdriver to carefully set the required settings.
DIP switch 1 = CZone network (0) or MasterBus network (1).
DIP switch 2 = MasterBus powering off (0) or on (1)
DIP switches 3 to 10 are either used as CZone address or for
MasterBus battery and 3
rd
output settings.

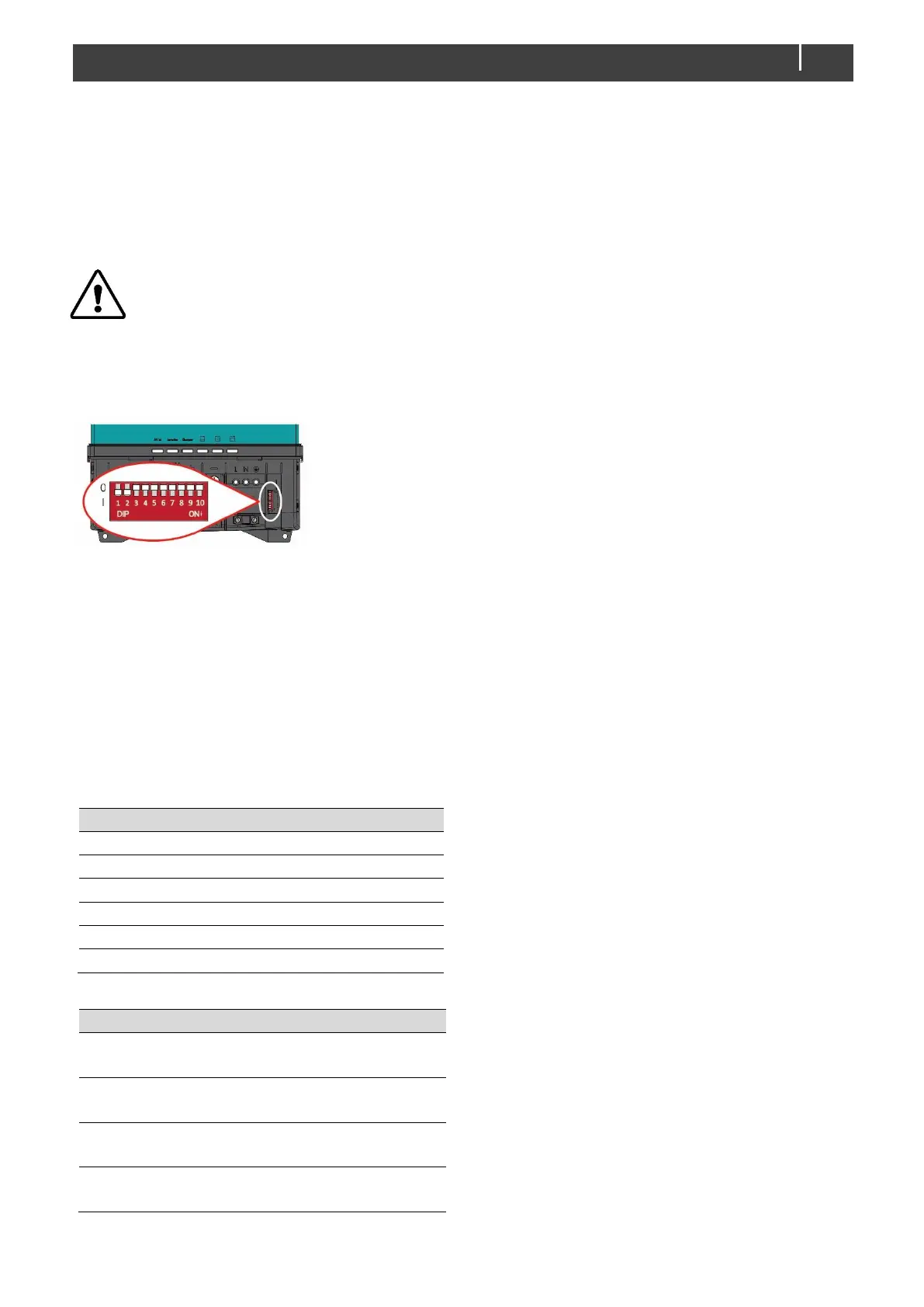

Figure 4. DIP switches (factory settings)
In a CZone network:
DIP switch 1 must always be set to the OFF position (0 ).
DIP switch 2 must always be set to the OFF position (0 ).
DIP switches 3 to 10 must match the unique address used in the CZone network; the dipswitch (see the
CZone Configuration Tool Instructions manual).
In a MasterBus network:
DIP switch 1 must always be set to the ON position (1 ).
DIP switch 2 is MasterBus Powering ON (1 ) or OFF (0 ). By default, this is OFF.
DIP switches 3 to 5 are used for battery type selection:
DIP switch
3
4
5
MasterBus settings (Flooded)
1
0
0
0
Flooded (fixed)
0
0
1
AGM (fixed)
0
1
0
Gel (fixed)
0
1
1
MLI (fixed)
1
0
0
Constant voltage (13,25V)
2
1
1
1
The following table lists the settings for DIP switches 6 to 9.
DIP switch
6
7
8
9
Inverter frequency 60Hz
Inverter frequency 50Hz
0
1
AC input support mode off
AC input support mode on
0
1
AC voltage input window wide
AC voltage input window narrow
0
1
Energy saving mode off
Energy saving mode on
0
1
1
If all DIP switches are in the OFF position
(0 ), the settings suit a Flooded battery
but can be changed in MasterAdjust.
2
Constant voltage has no temperature
compensation.
