Mastervolt MASS COMBI 12/1600-60

INSTALLATION
EN / Mass Combi 12/1600-60; 12/2200-100; 24/1800-35; 24/2600-60 / January 2015 19
5.4 THINGS YOU NEED
Make sure you have all the parts you need to install the
Mass Combi:
 Mass Combi (included)
 Battery temperature sensor with cable and plug
(included);
 AC wiring. Double insulated three wire cable with wire
colours according to the locally applicable standards.
The applicable length and wire diameter depend on the
electrical installation. See section 5.3.1;
 DC-wiring to connect the DC connections of the Mass
Combi to the DC-distribution; see section 5.3.2;
 DC-fuse holder with a DC-fuse, to be integrated in the
positive DC-cable. For specifications see section 5.3.2;
 Screws / bolts (Ø 6mm) (with plugs) to mount the
cabinet to a surface. Use mounting materials which are
suitable to carry the weight of the Mass Combi;
 Batteries. Refer to section 9.1 for specifications;
 Appropriate and reliable cable terminals, cable lugs,
battery terminals and cord end terminals;
 In case of Parallel operation (section 3.4): Modular
communication cable 8 pole (maximum length 15m) for
communication between the two Mass Combi’s. See
figure 20.
We recommend as a minimum tool kit:
 Socket wrench 13mm to fix the DC-input (battery)
cables
 Flat blade screw driver 1.0 x 4.0 mm to fix the screw
terminals
 Tools to fix the screws / bolts (Ø 6mm) with plugs to
mount the cabinets to a surface
 Philips screw driver to open the connection area of the
Mass Combi

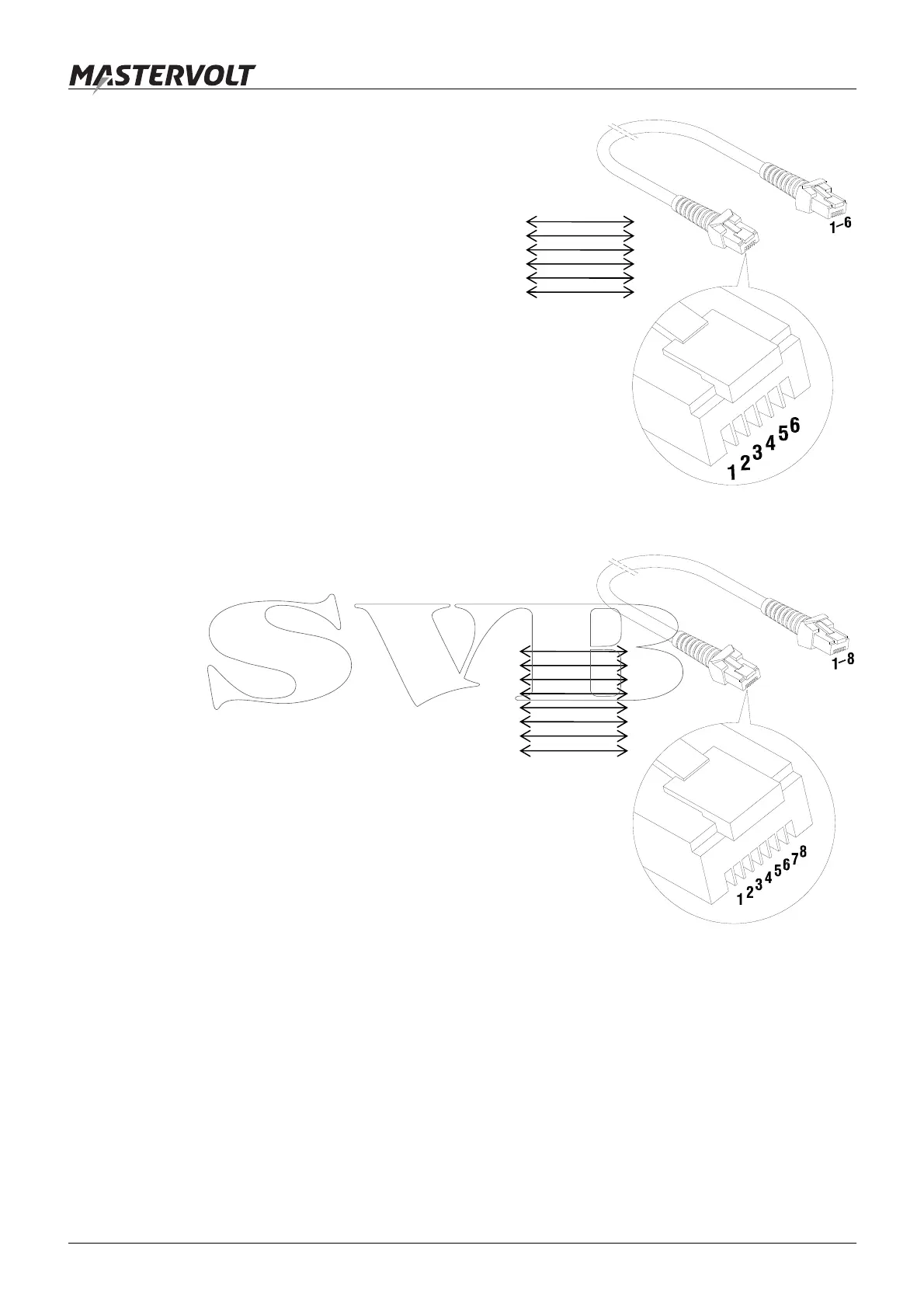

Figure 19: Modular communication cable, 6 pole, cross
wired. For connection of remote control panels
Figure 20: Modular communication cable, 8 pole, cross
wired. For communication between two Mass Combi’s
(parallel operation)
1
2
3
4
5
6
6
5
4
3
2
1
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
