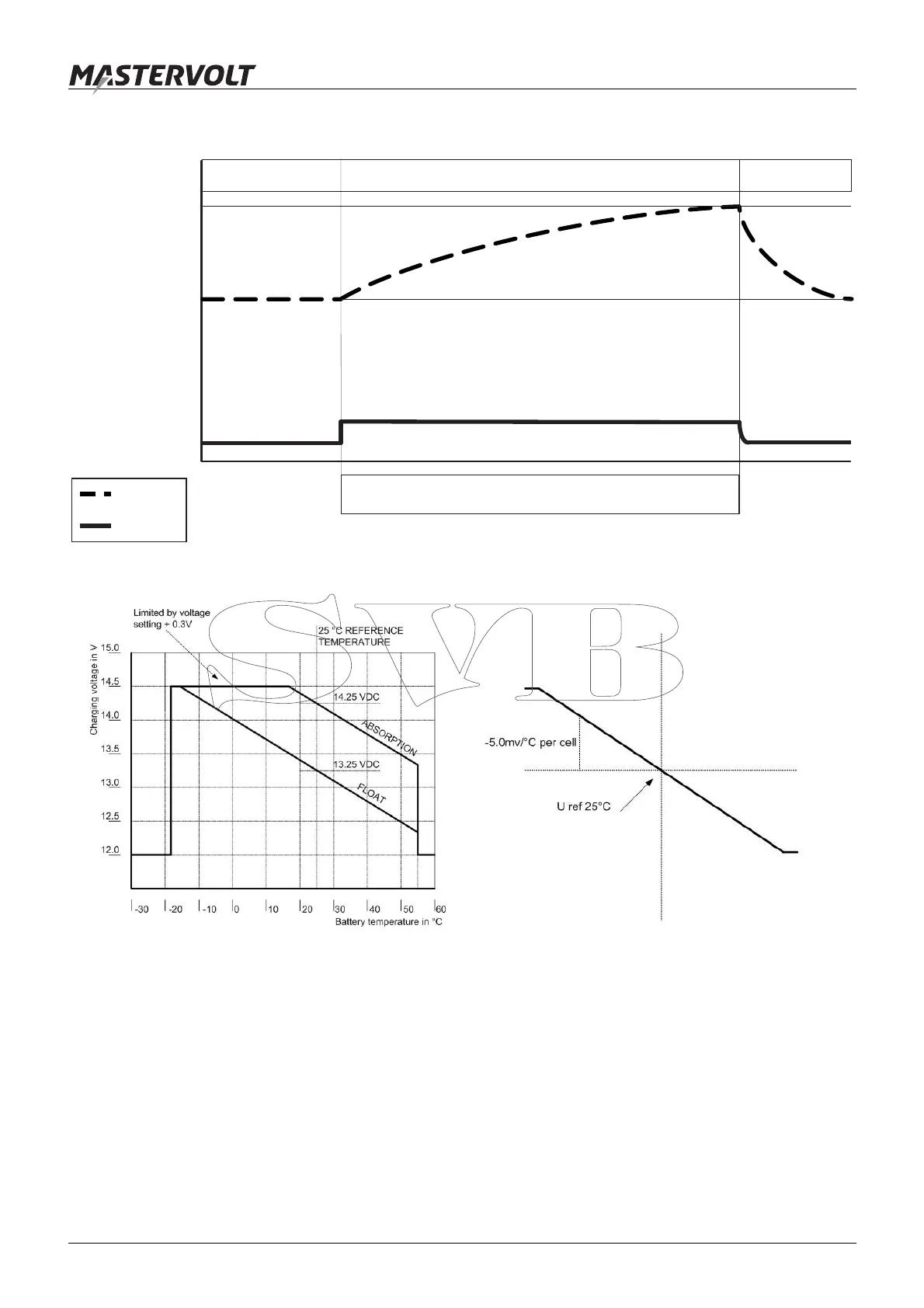

Figure 37: Charge characteristic of the equalize charge cycle, 12V Combi (see section 6.2.6) (@ 25°C / 77°F)
Figure 38: Temperature compensation characteristic (charge voltage versus temperature)
Temperature variation
standard –5mV/°C per cell
Reference voltage 25°C
Battery Charging is not
allowed above +55°C and
below –20°C
12 Volt system: –30mV/°C
24 Volt system: –60mV/°C
48 Volt system: –120mV/°C
FLOAT EQUALIZE FLOAT
Float voltage + 2.25V
= 15.50VDC
Float voltage
= 13.25VDC
10% of Imax
Max equalize time = 6hr
Start equalize cycle by jumper change (disabled when Gel)
= voltage
= current
