Matrix ETERNITY NE User Manual

6 Matrix ETERNITY NE Quick Start

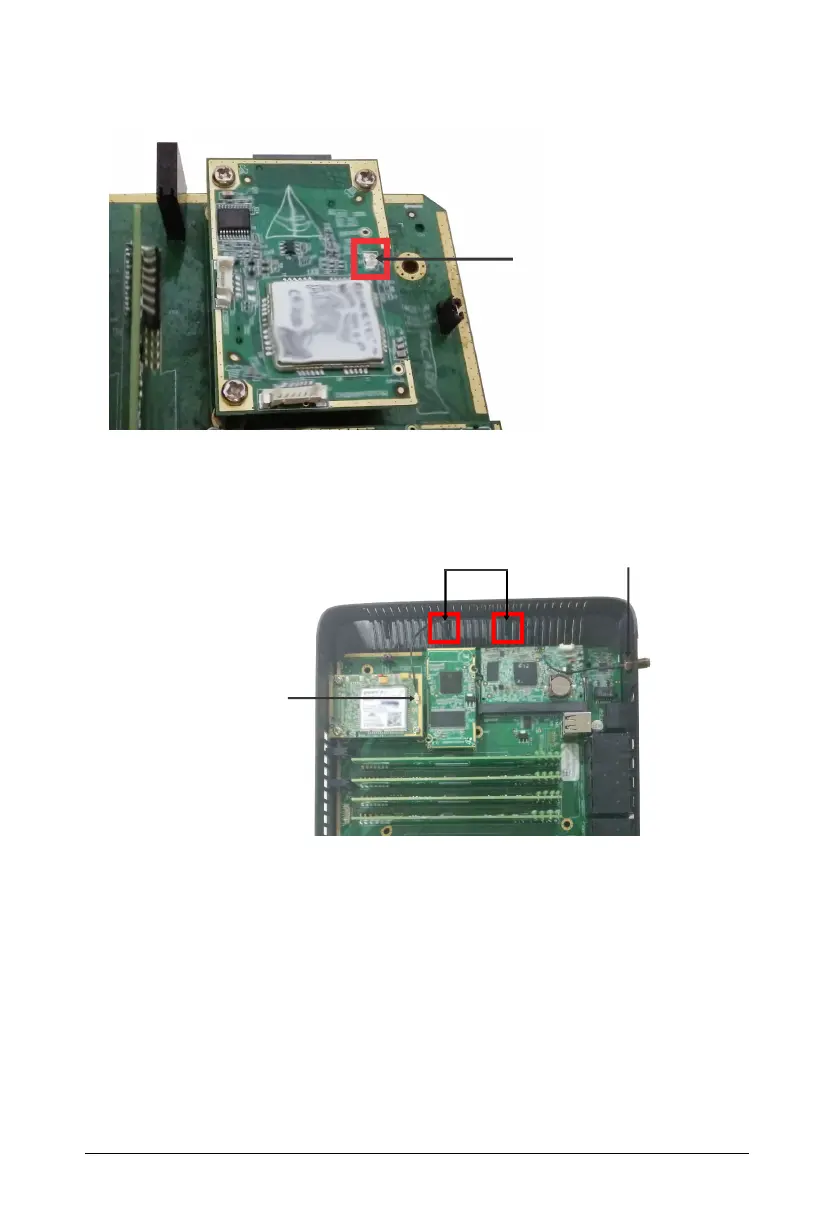

• Locate the patch antenna connector on the GSM/UMTS Module.
• Fix the antenna wire in the clamp and route the cable carefully to the GSM/UMTS module.
Press the antenna wire connector onto the patch antenna connector on the GSM/UMTS
Module as shown below.
• Similarly, you can install another GSM/UMTS module.
• If you do not want to install any other module, replace the top cover and secure the cover with
the screws.
Patch Antenna
Connector
Antenna wire connector
connected to Patch antenna
connector
Wire Clamp
Antenna Holder

Matrix ETERNITY NE Specifications

General

Brand	Matrix
Model	ETERNITY NE
Category	PBX
Language	English
