Matrix G7-S13-02 User Manual

17
CHAPTER 5
：
PARTS REPLACEMENT
5.3 REPETITION COUNTER

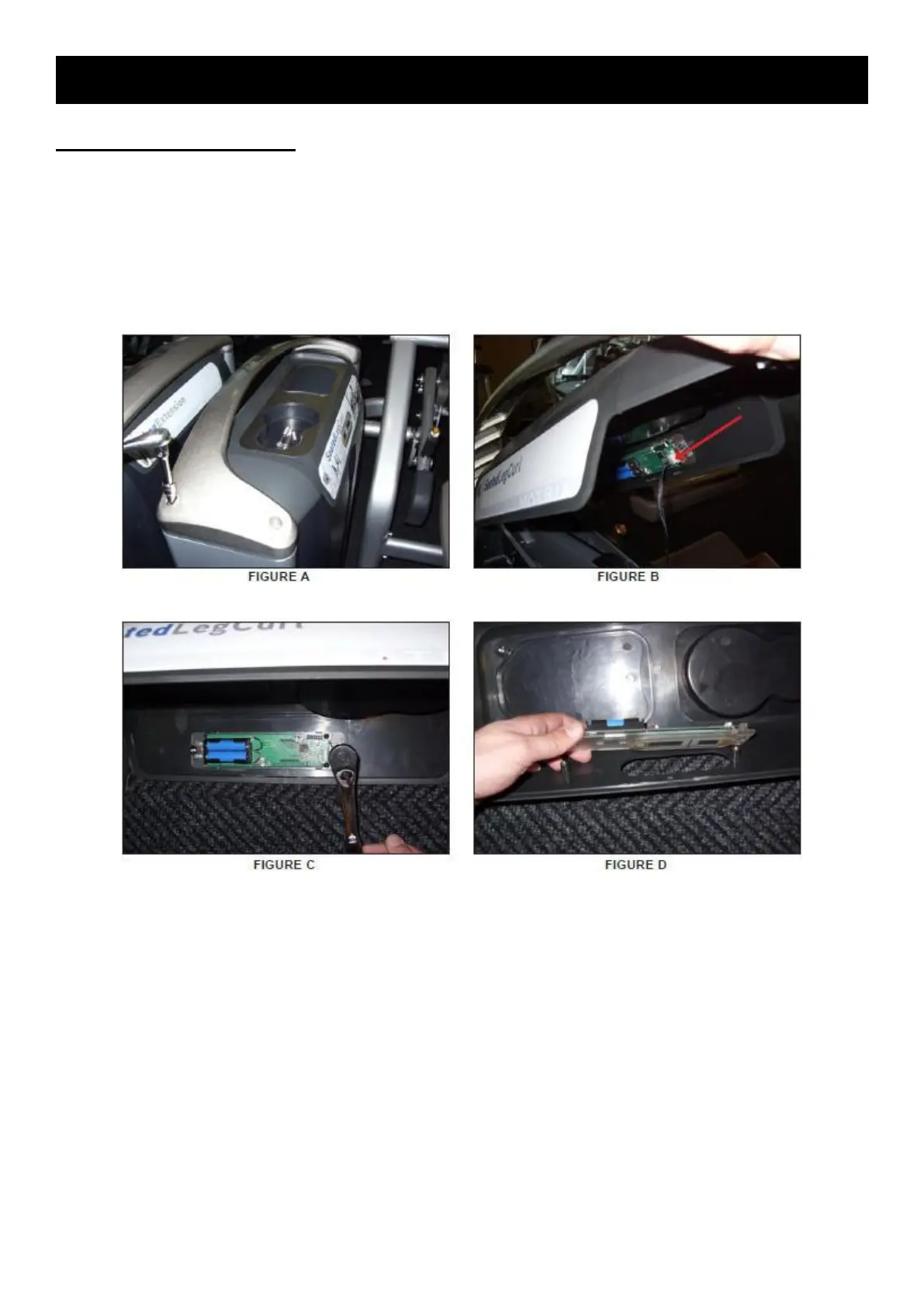

1) Remove the 4 screws going through the aluminum wing into the top cover of the weight stack
(Figure A).
2) Disconnect the repetition counter wire and remove the aluminum wing and top cover from the
weight stack (Figure B).
3) Remove the 2 screws attaching the repetition counter to the top cover (Figure C).
4) Remove the repetition counter from the top cover (Figure D).
5) Reverse Steps 1-4 to install a new repetition counter. (1000096514)
