Matrix G7-S13-02 User Manual

20
CHAPTER 5
：
PARTS REPLACEMENT
5.6 INCREMENTAL WEIGHT PIN
1) Remove the side covers as outlined in Section 5.4.

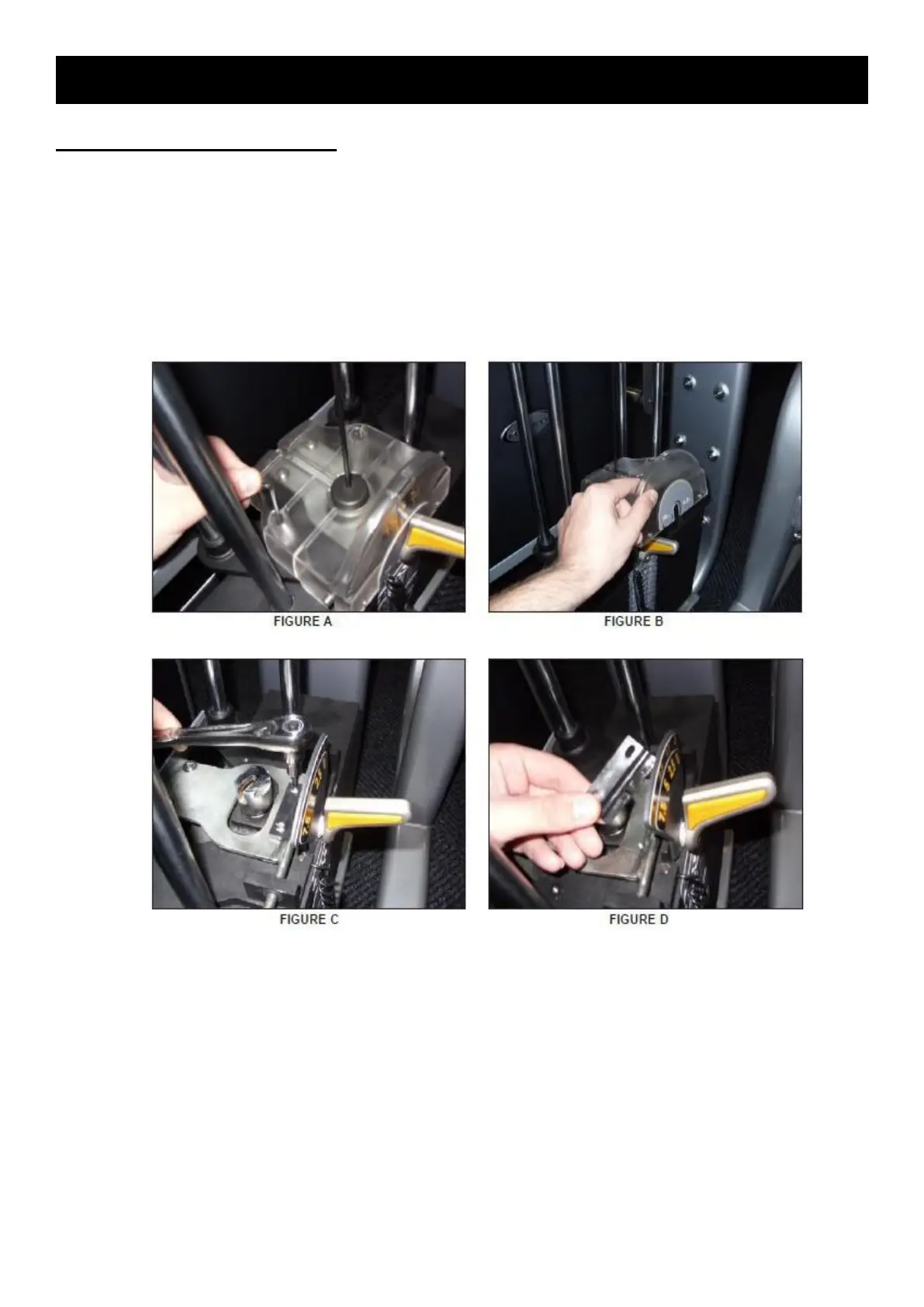

2) Remove the 4 screws holding on the clear plastic cover over the incremental weight pin and
remove it (Figures A & B).
3) Remove the 2 screws holding on the reaction block and remove it (Figures C & D).
4) Remove the snap ring holding the incremental weight pin to the top weight plate and remove the
incremental weight pin (Figures E, F, & G).
5) Reverse Steps 1-4 to install a new incremental weight pin.(1000398254)
