CHAPTER 5
：
PARTS REPLACEMENT

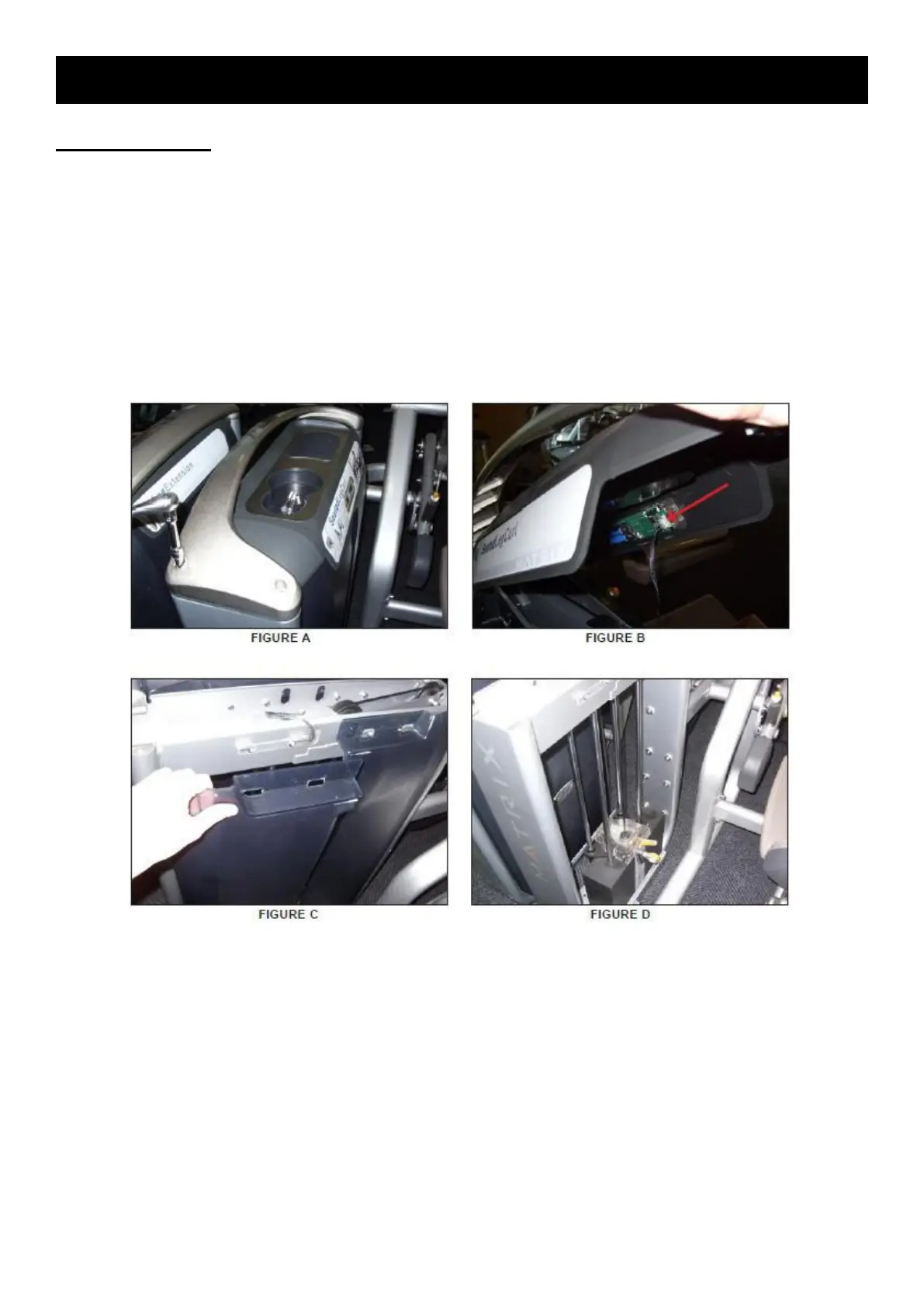

5.4 SIDE COVER
1) Remove the 4 screws going through the aluminum wing into the top cover of the weight stack
(Figure A).
2) Disconnect the repetition counter wire and remove the aluminum wing and top cover from the
weight stack (Figure B).
3) Pull up on each weight stack shroud and remove it from the weight stack frame (Figure C).
4) Figure D shows the weight stack with all 3 side covers removed.(098985/098988/
1000397883)
5) Reverse Steps 1-3 to install new side covers.
