Matrix G7-S13-02 User Manual

19
CHAPTER 5
：
PARTS REPLACEMENT
5.5 REPETITION SENSOR

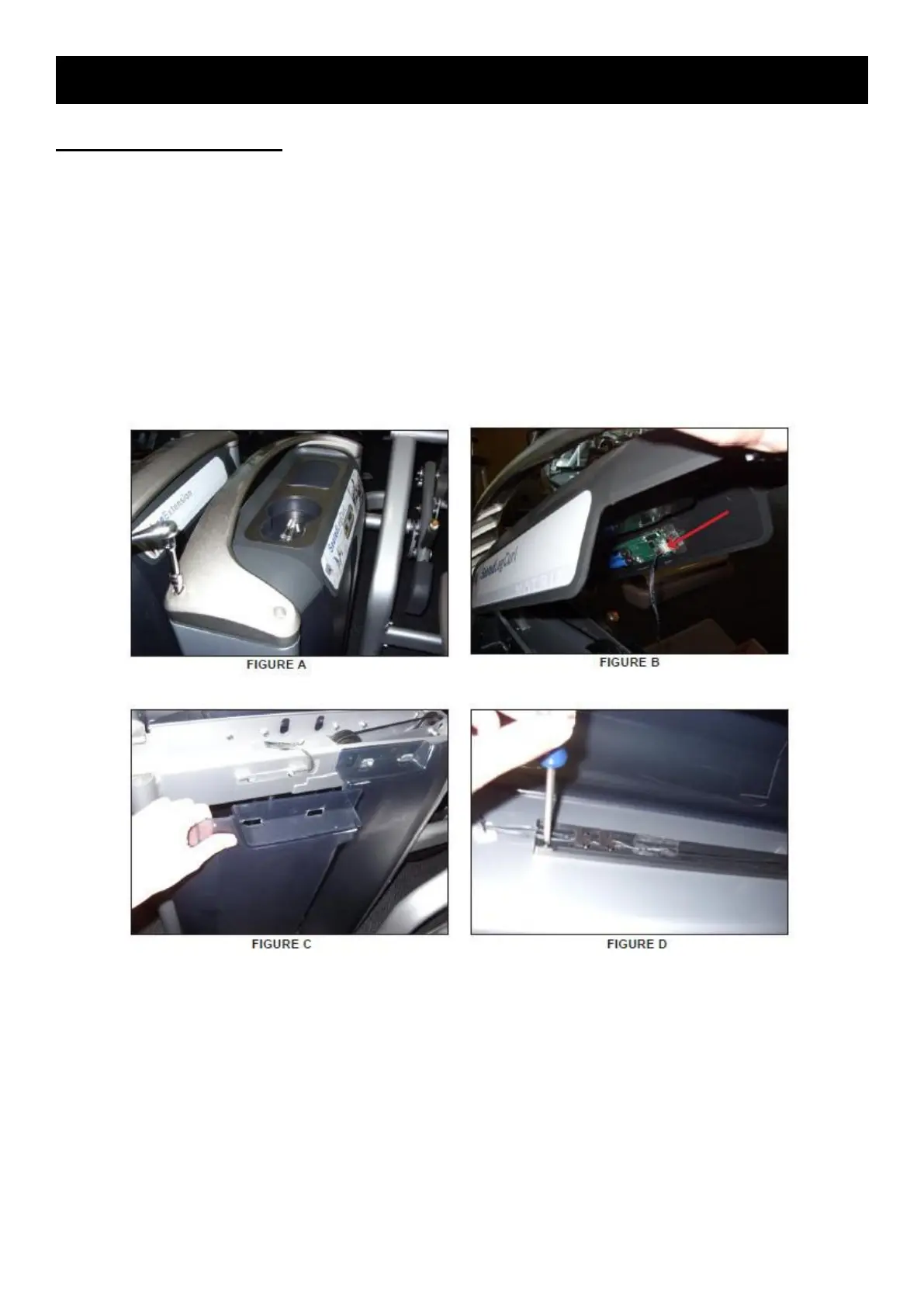

1) Remove the 4 screws going through the aluminum wing into the top cover of the weight stack
(Figure A).
2) Disconnect the repetition counter wire and remove the aluminum wing and top cover from the
weight stack (Figure B).
3) Remove the side covers from the weight stack frame (Figure C).
4) Remove the 4 screws holding the repetition sensors to the weight stack frame (Figure D).
5) Remove the tie straps holding the repetition sensor wires in place, and remove the repetition
sensors.
6) Reverse Steps 1-5 to install new repetition sensors.(1000096531)
