CHAPTER 5
：
PARTS REPLACEMENT
5.11 CONNECTION ROD

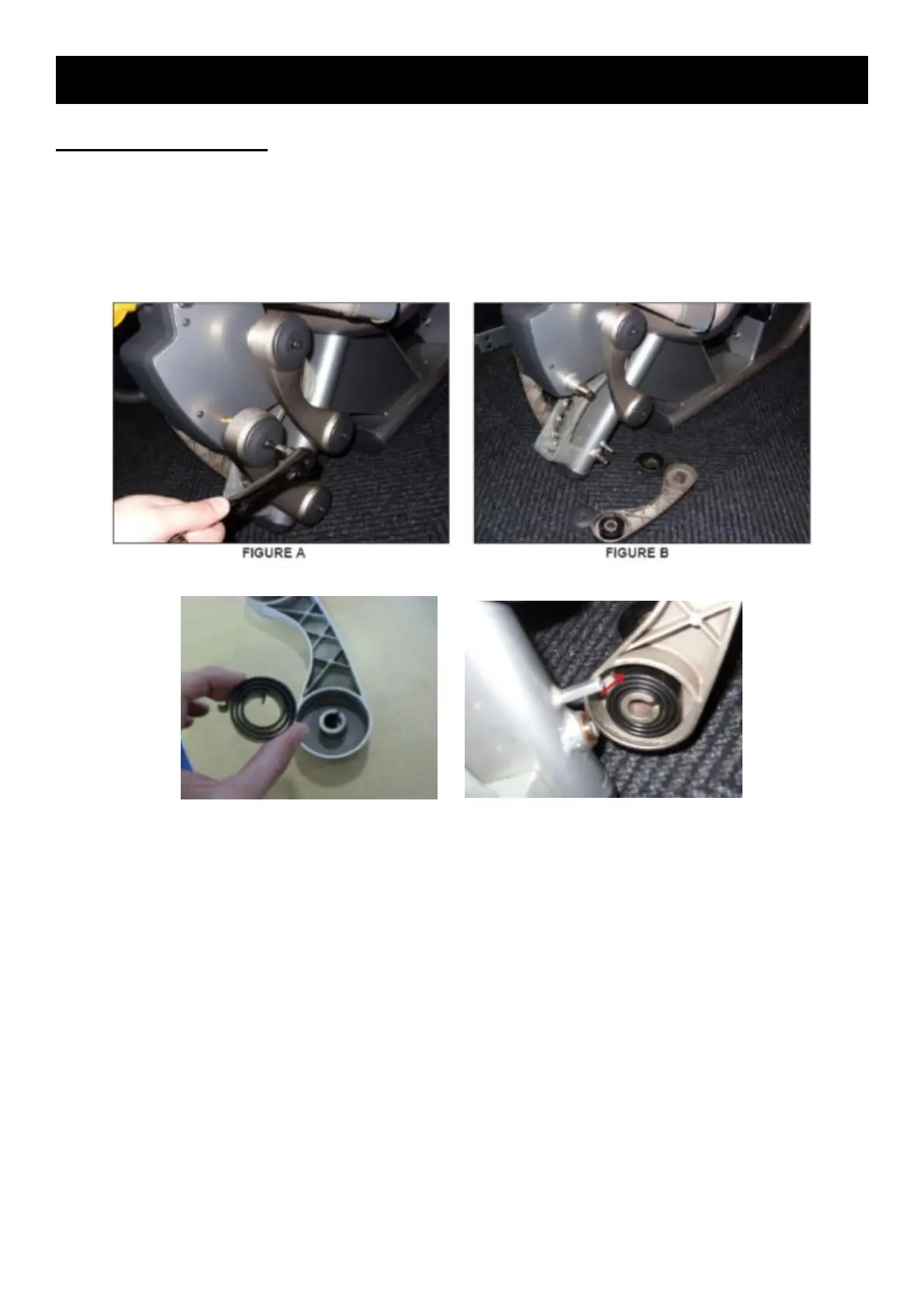

1) Remove the 2 screws going into the connecting rod (Figure A).
2) Remove the connecting rod (Figure B). (1000398860)
3) When installing a new connecting rod, make sure that the swirl spring is present and properly
installed (there should be at least 2 swirl springs for each set of 4 connecting rods) (Figures C & D).
FIGURE C FIGURE D
