Matrix G7-S13-02 User Manual

27
CHAPTER 5
：
PARTS REPLACEMENT
5.10 ADJUSTABLE HANDLE - CONTINUE

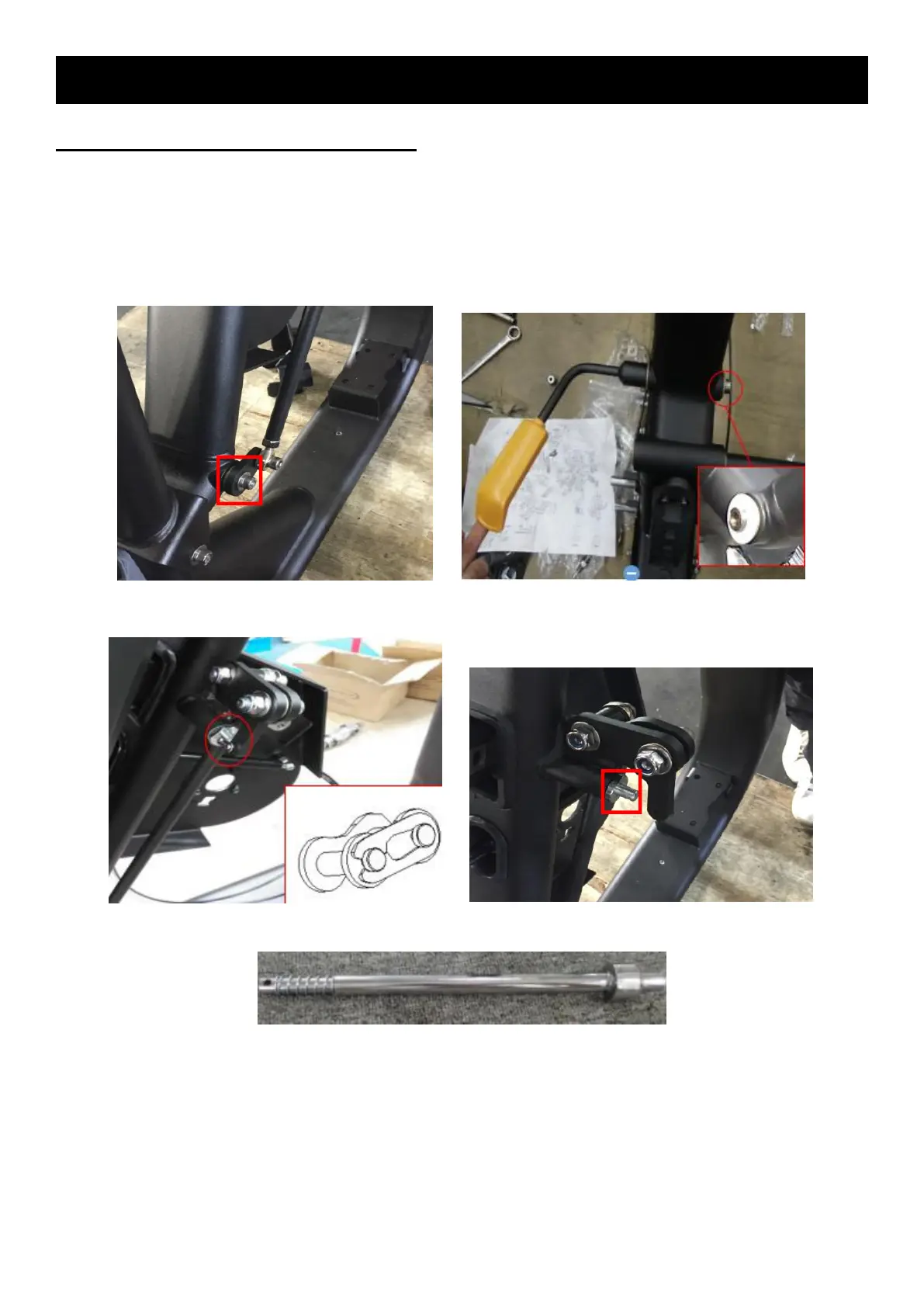

1) Remove the fixing screw and the connection plate (Figure A).
2) Remove the stopper block and remove the handle(Figure B).(1000427175)
3) Remove the chain and the stopper block (Figure C & D).
4) Remove the pull pin(Figure E).(1000406193)
FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E
