Matrix G7-S13-02 User Manual

22
CHAPTER 5
：
PARTS REPLACEMENT
5.7 WEIGHT PLATE
1) Remove the outside cover as outlined in Section 5.2&5.4.

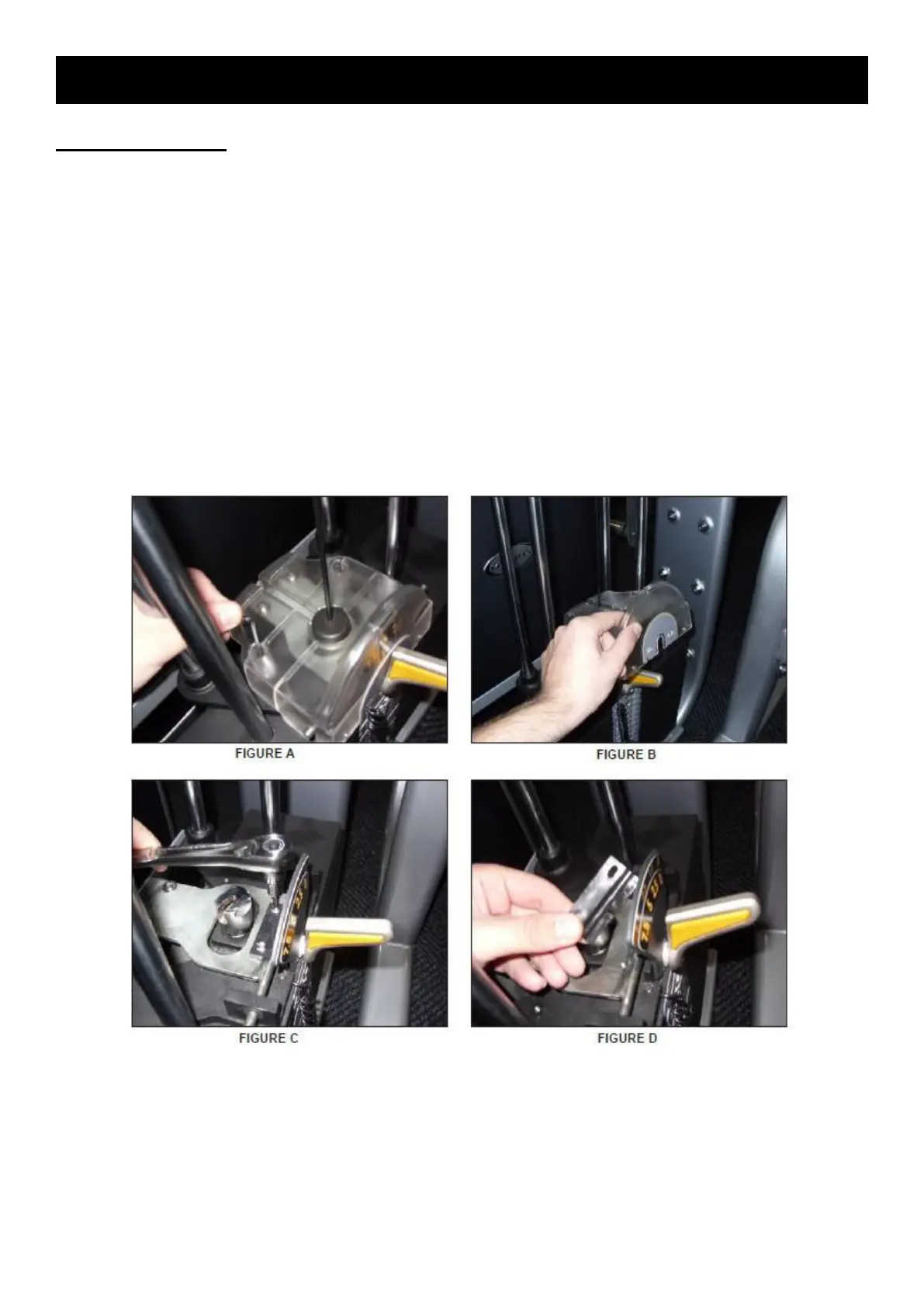

2) Remove the 4 screws holding on the clear plastic cover over the incremental weight pin and
remove it (Figures A & B).
3) Remove the 2 screws holding on the reaction block and remove it (Figures C & D).
4) Move the rubber cover on the cable by pulling up on it (Figure E).
5) Turn the cable retainer counter clockwise until there is enough slack in the cable to remove it
(Figure F & G).
6) Remove the incremental weight pin as outlined in Section 5.6.
7) Remove the snap ring from the top of the weight stack guide rods (Figure H).
8) Lean the guide rod and leave the fixing rack away from the weight stack (Figure I).
9) Lean the weight stack towards the frame and remove the weight plates as needed (Figure J).
10) Reverse Steps 1-9 to install a new weight plate (096088).
