Matrix G7-S13-02 User Manual

24
CHAPTER 5
：
PARTS REPLACEMENT
5.8 WEIGHT STACK PULLEY
1) Remove the side covers as outlined in Section 5.4.
2) Remove the 4 screws holding on the clear plastic cover over the incremental weight pin and
remove it (see Section 5.6 for pictures).

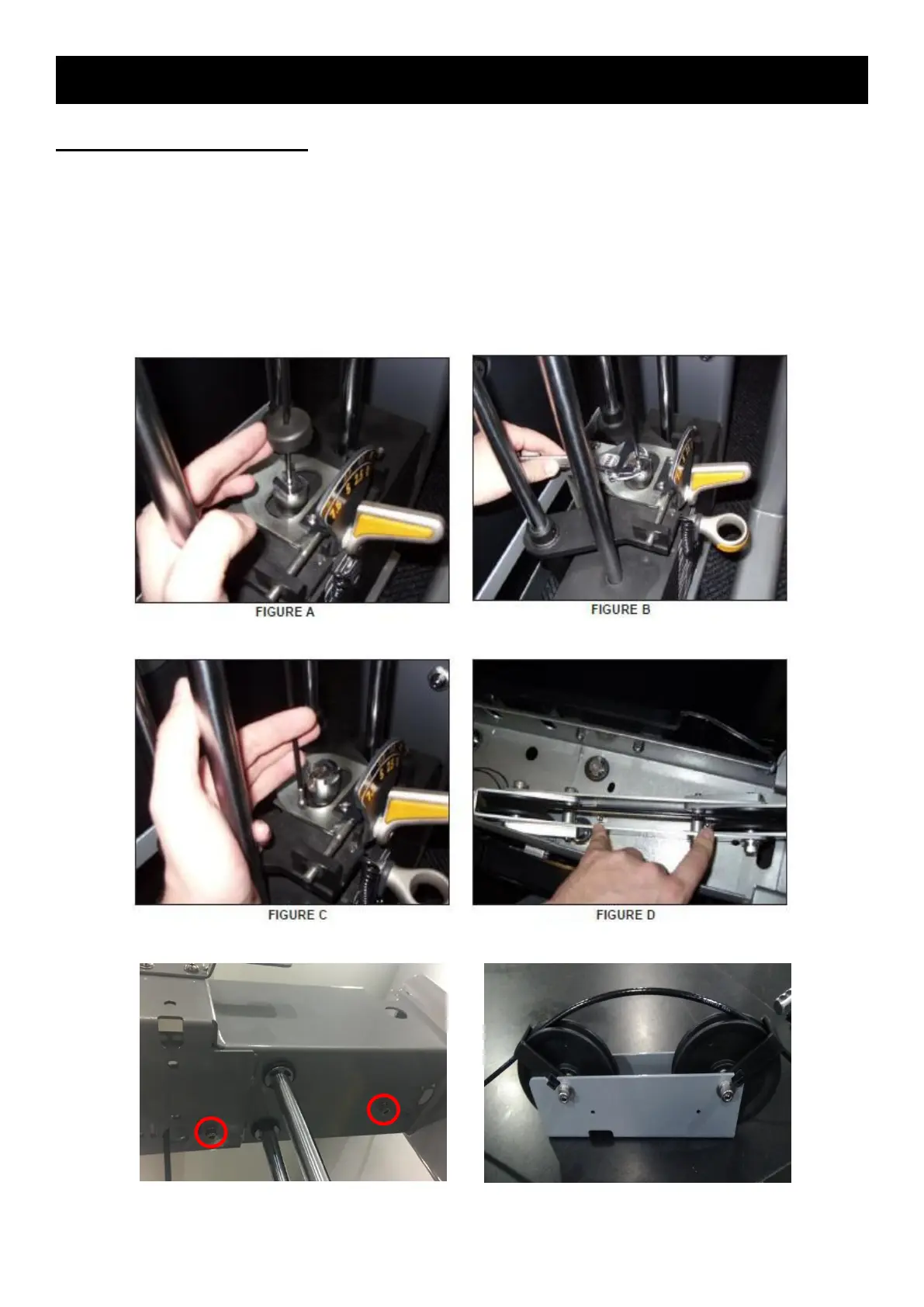

3) Move the rubber cover on the cable by pulling up on it (Figure A).
4) Turn the cable retainer counter clockwise until there is enough slack in the cable to remove it
(Fig. B & C).
5) Remove the 2 screws fix the weight stack pulley and remove it (Figure D & F).(1000397609)
FIGURE F
