10.1.3 How to set up the “WIFI” function
1. Create a WiFi config file
Step 1: Use your computer and use "note" function to create a wifi config file (the name is called 'wifi_set.cfg’ - Figure A).
Step 2: Check your AP data and modifying SSID & Key (password) required by facility Access Point (AP) to 'wifi_set.cfg' files. Once this is
completed, put the 'wifi_set.cfg' file to USB flash drive (the access should read \MATRIX\FW\ - Figure B).
2. Install WiFi config software for WiFi connection.
Step 1: Insert USB driver with ‘wifi_set.cfg’ file to console (Figure C).
Step 2: Enter Manager Mode by pressing and holding down the Quick Speed 1 and Quick Elevation 1 keys.
Step 3: Use the quick key Speed UP and Speed DOWN LEVEL keys to select “Internet” and press PAUSE Key to enter (Figure D).
Step 4: Pres the PAUSE key to enter Enable/Disable setup (Figure E).
Step 5: Use the quick key Speed UP and Speed DOWN LEVEL keys to select to select "Enable" and press PAUSE Key to save (Figure F).

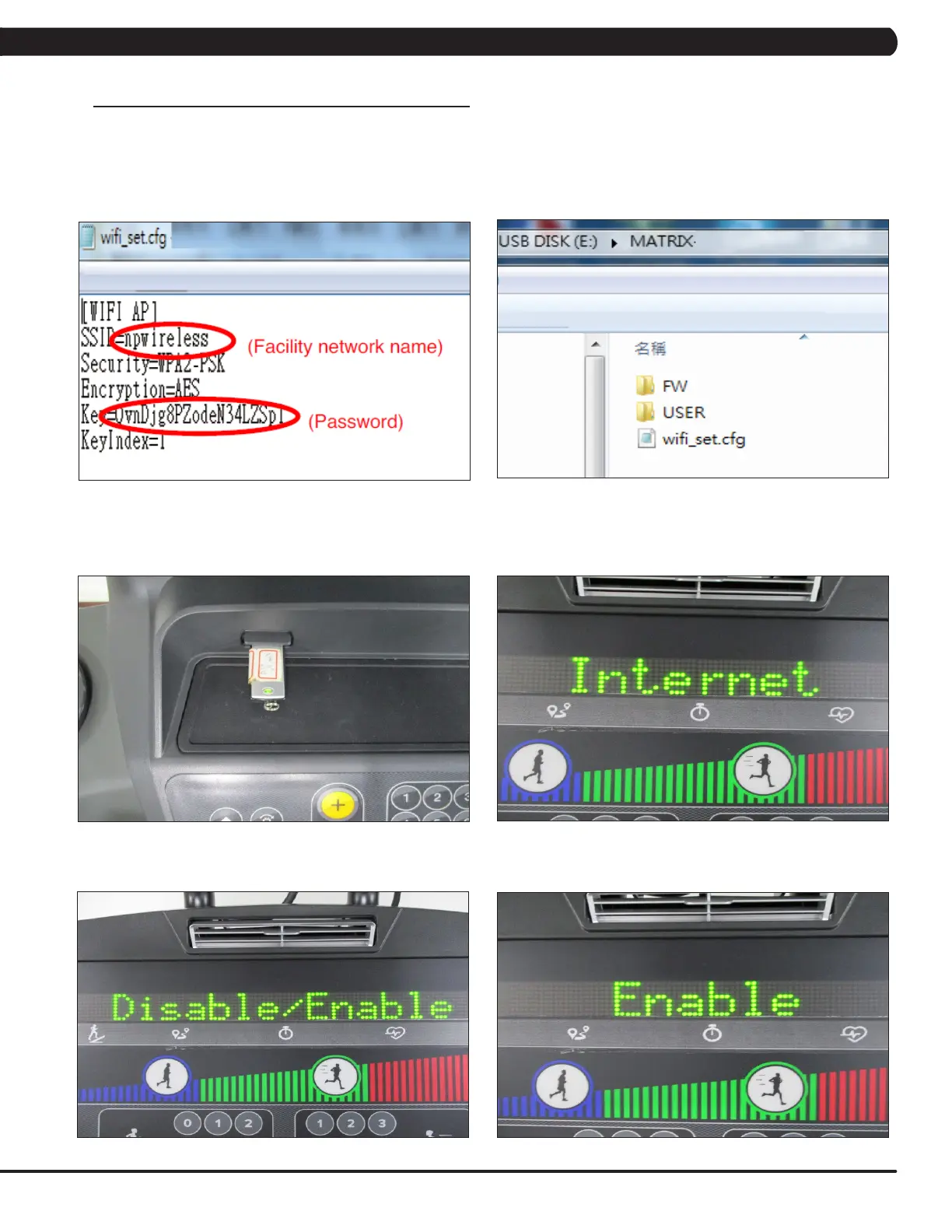

FIGURE BFIGURE A
FIGURE DFIGURE C
FIGURE FFIGURE E
