Matrix T5X GROUP TRAINING User Manual

37
CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE
10.4 T5X PCTV BRACKET INSTALLATION INSTRUCTIONS
1) Remove the 4 screws holding the console back cover to the front and remove the console back cover (Figures A & B).
2) Slide the TV bracket between the console frame and the fan frame (Figure C).
3) Secure the TV bracket to the console using the 4 socket head screws sent with the bracket kit (Figure D).
4) Attach the coax cable from the TV bracket kit to the coax cable coming up the console mast (Figure E). NOTE: There is an adaptor to hook
the 2 male coax cable ends together included with the TV bracket kit.
5) Attach the 4 pin black connector side of the power wire to the TV power wire coming up the console mast (Figure F).

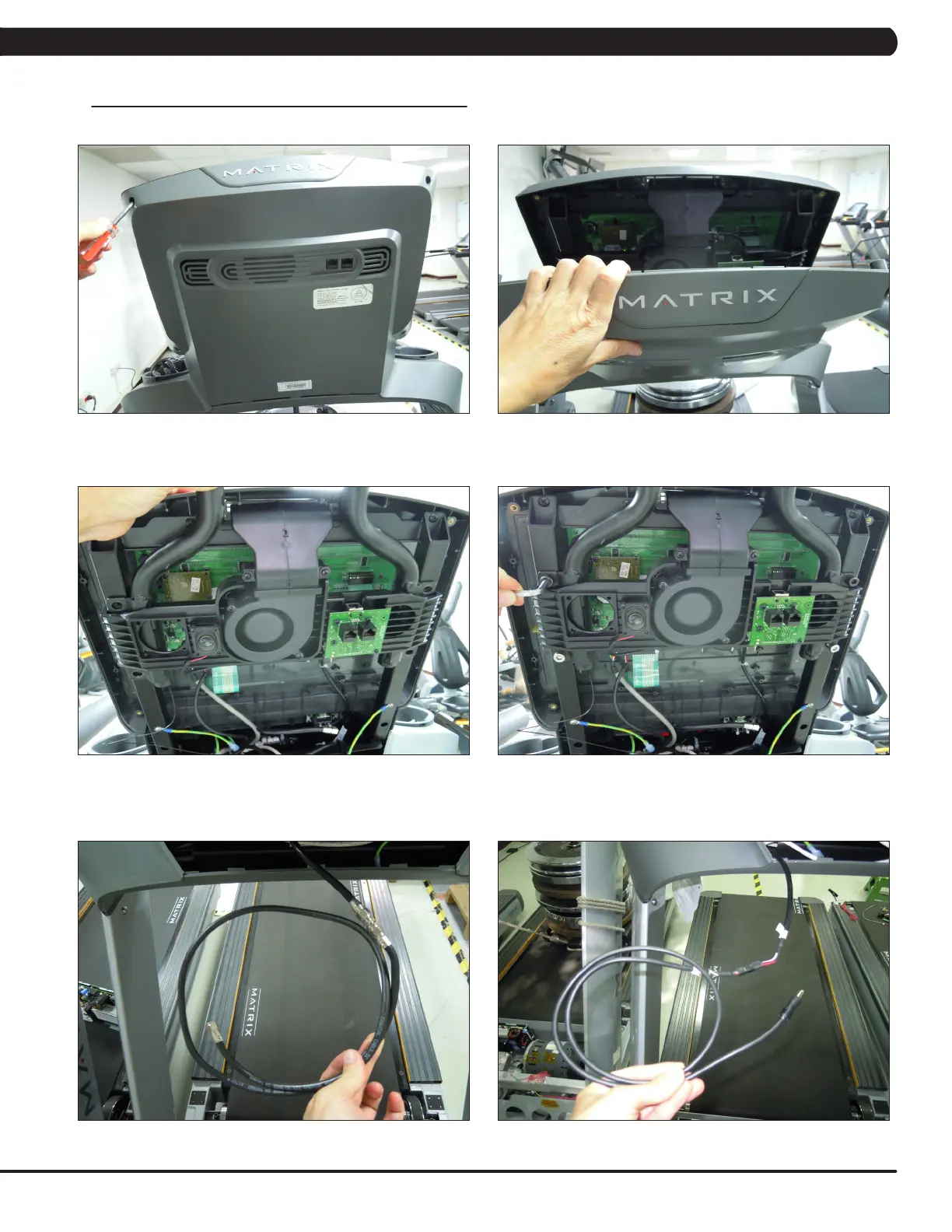

FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
