Matrix T5X GROUP TRAINING User Manual

33
CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE
The Matrix Treadmill is capable of having a MYE Entertainment or Web Ready (PCTV) television installed using an integrated bracket. Follow
the instructions below to install the MYE TV and TV bracket and Section 10.7 for installation of a PCTV with a bracket, then use the instructions
located in the TV owner's manual to program the TV. NOTE: Both the MYE TV and PCTV use the same bracket kit, which means that there will
be unused wiring depending on which type of TV is being installed.

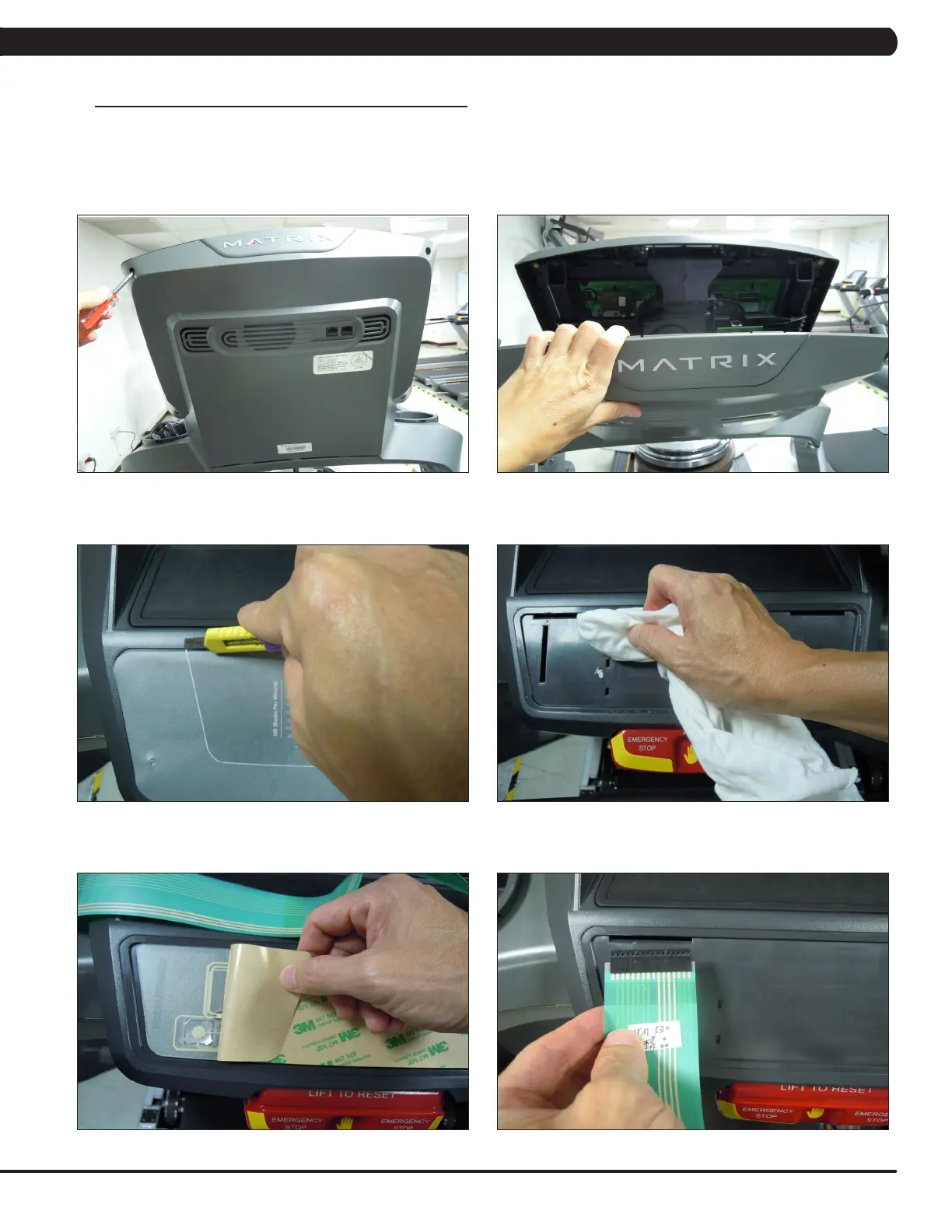

1) Remove the 4 screws holding the console back cover to the front and remove the console back cover (Figures A & B).
2) Use a razor to remove the heart rate overlay from the lower portion of the console (Figure C).
3) Clean the console area with alcohol to remove any left over adhesive from the overlay (Figure D).
4) Peel the protective film off of the new entertainment keypad (Figure E).
5) Slide the ribbon cable of the new entertainment keypad through the slot in the console plastic (Figure F).
FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
10.3 T5X MYE TV BRACKET INSTALLATION INSTRUCTIONS
