CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE
6) Stick the keypad to the cutout in the console plastic and press down to completely adhere the keypad to the plastic (Figure G).
7) Peel the protective film from the back of the entertainment overlay (Figure H).
8) Stick the overlay to the cutout in the console plastic and press down to completely adhere the overlay to the plastic and keypad (Figure I).
9) Plug the keypad ribbon cable into the open pins on the UCB (Figure J). NOTE: Make sure that all pins are engaged by the ribbon cable.
10) Slide the TV bracket between the console frame and the fan frame (Figure K).
11) Secure the TV bracket to the console using the 4 socket head screws sent with the bracket kit (Figure L).

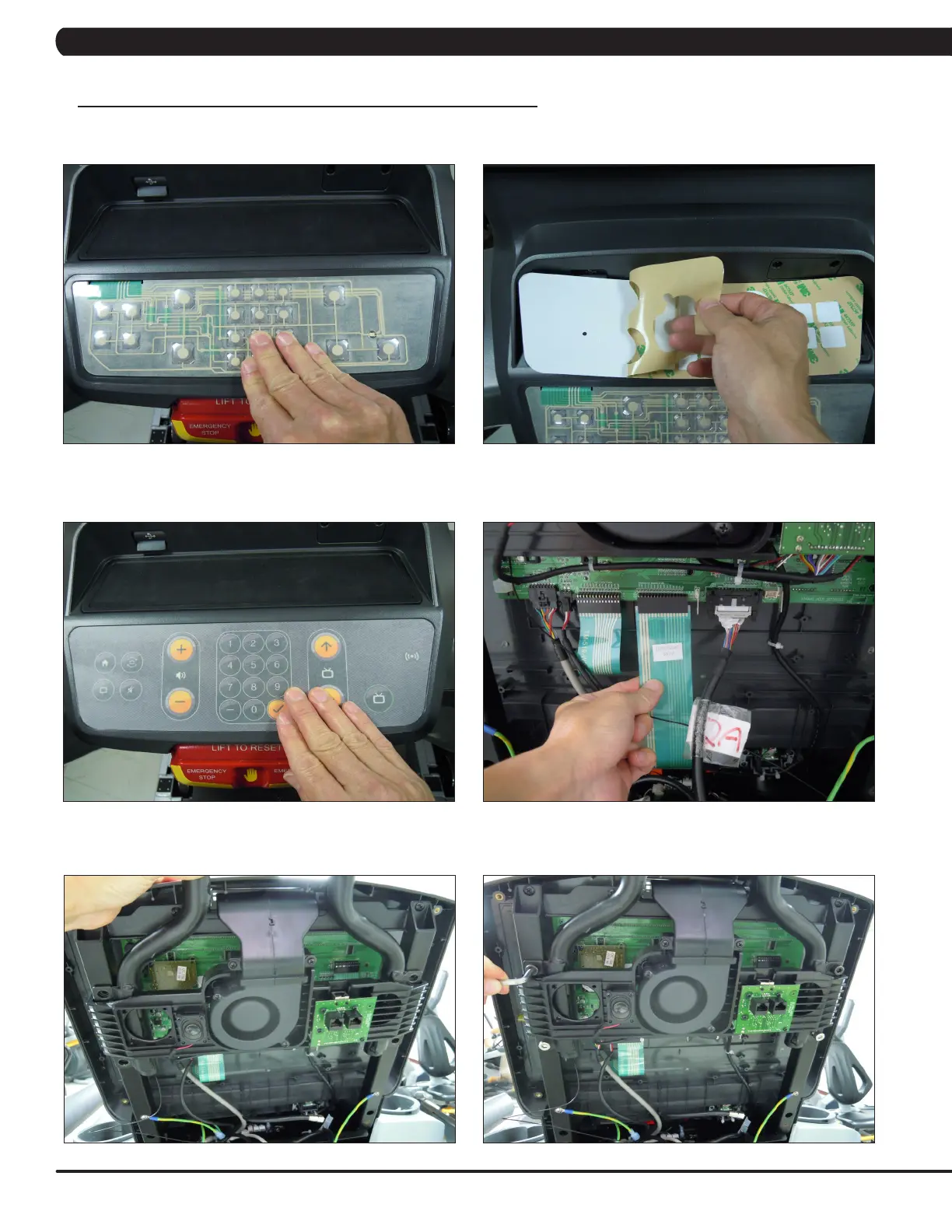

FIGURE G FIGURE H
FIGURE I FIGURE J
FIGURE K FIGURE L
10.3 T5X MYE TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
