CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE

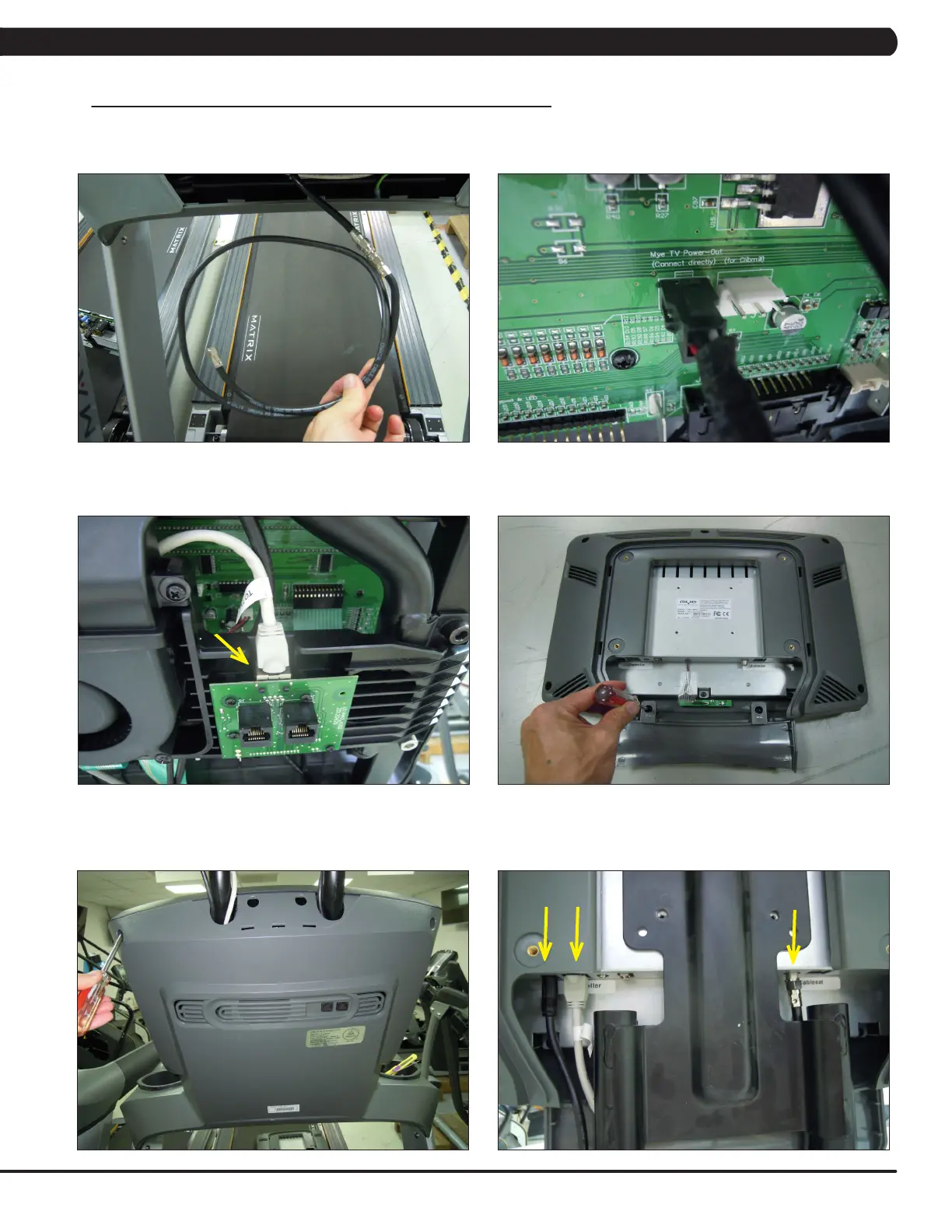

12) Attach the coax cable from the TV bracket kit to the coax cable coming up the console mast (Figure M). NOTE: There is an female
adaptor to hook the 2 male coax cable ends together included with the TV bracket kit.
13) Attach the 4 pin black connector side of the power wire to the Mye TV Power port on the UCB (Figure N).
14) Plug the side of the controller wire marked TO CONSOLE into the TV port of the CSafe board in the console (Figure O).
15) Mount the front plate to the MYE TV using 2 screws sent with the TV bracket kit (Figure P).
16) Install the console back cover using the 4 screws removed in Step 1 (Figure Q). NOTE: Make sure to route the wiring through the holes in
the back cover so that none of the wiring is pinched. The MATRIX logo portion of the back cover will not be used with a TV bracket.
17) Plug the coax cable, power wire and controller wire into the MYE TV (Figure R).
FIGURE M
FIGURE N
FIGURE O FIGURE P
FIGURE Q FIGURE R
10.3 T5X MYE TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
