26 Chapter 2: Hardware installation
To access the signals of internal auxiliary I/O connector 2/3, you can install the
cable adapter bracket.
• External auxiliary I/O connectors 2 and 3 (panel mount HD-15). Each used to
transmit and receive auxiliary signals.

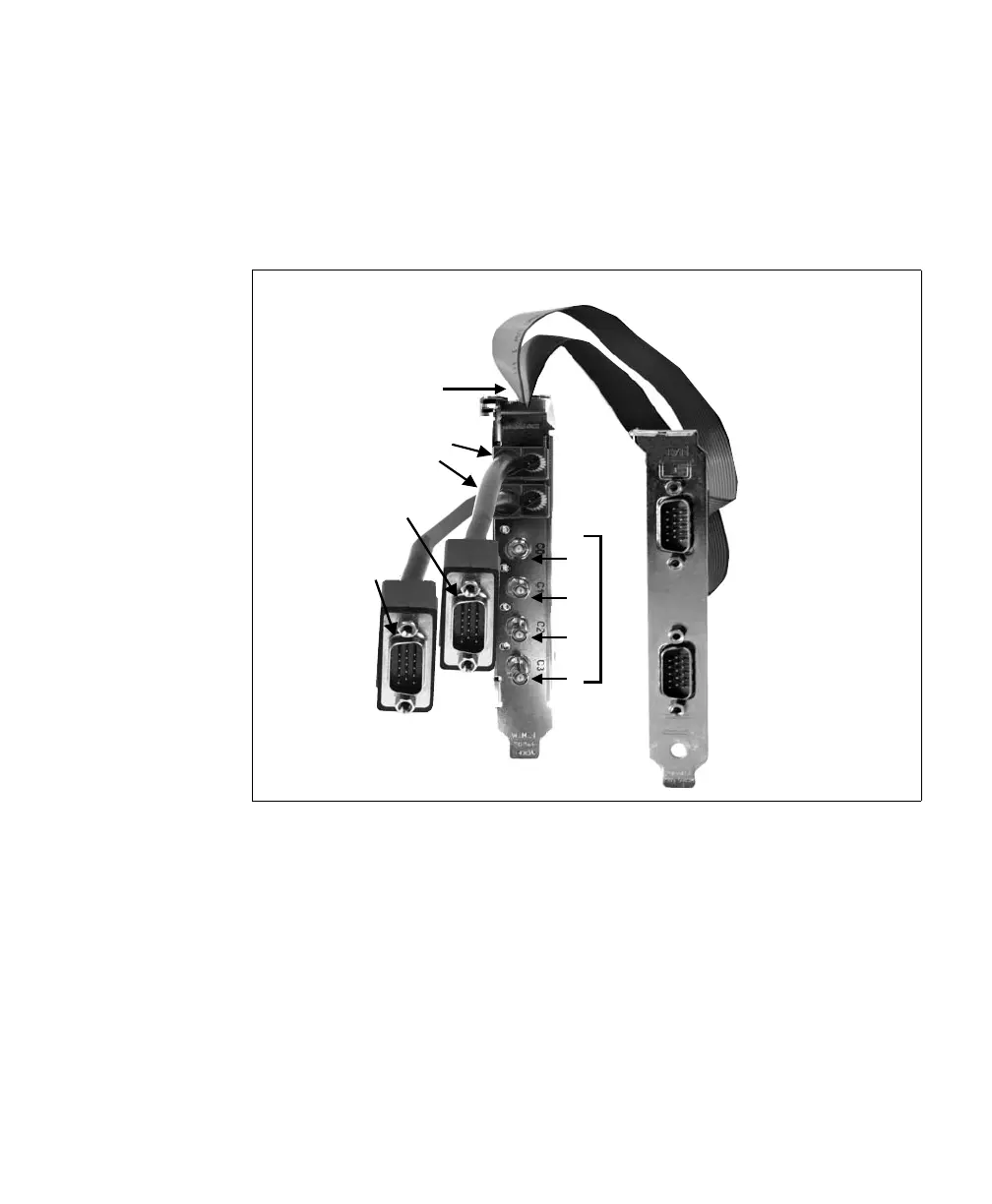

CoaXPress video input connectors
Auxiliary I/O
connector 0
CXP 2
CXP 3
CXP 1
CXP 0
Auxiliary I/O
connector 1
Attached
cables
External
auxiliary I/O
connector 2
External
auxiliary I/O
connector 3
Internal auxiliary
I/O connector
