Matrox Rapixo CXP - Internal Auxiliary 12 V Power Connector

Connectors on the Matrox Rapixo CXP board 65
To build your own cable, you can purchase the following parts:
These parts can be purchased from third parties such as Digi-Key Corporation
(www.digikey.com).
Internal auxiliary 12 V power connector
The internal auxiliary 12 V power connector on Matrox Rapixo CXP is a standard
6-pin, 12 V connector. If this connector is attached to the computer’s power supply
cable that has a 6-pin, compatible, mating 12 V connector, Matrox Rapixo CXP
can provide power-over-CoaXPress (PoCXP) to the devices connected to the
CoaXPress input connectors, at up to 13 W per connection at a nominal voltage
of 24 V.

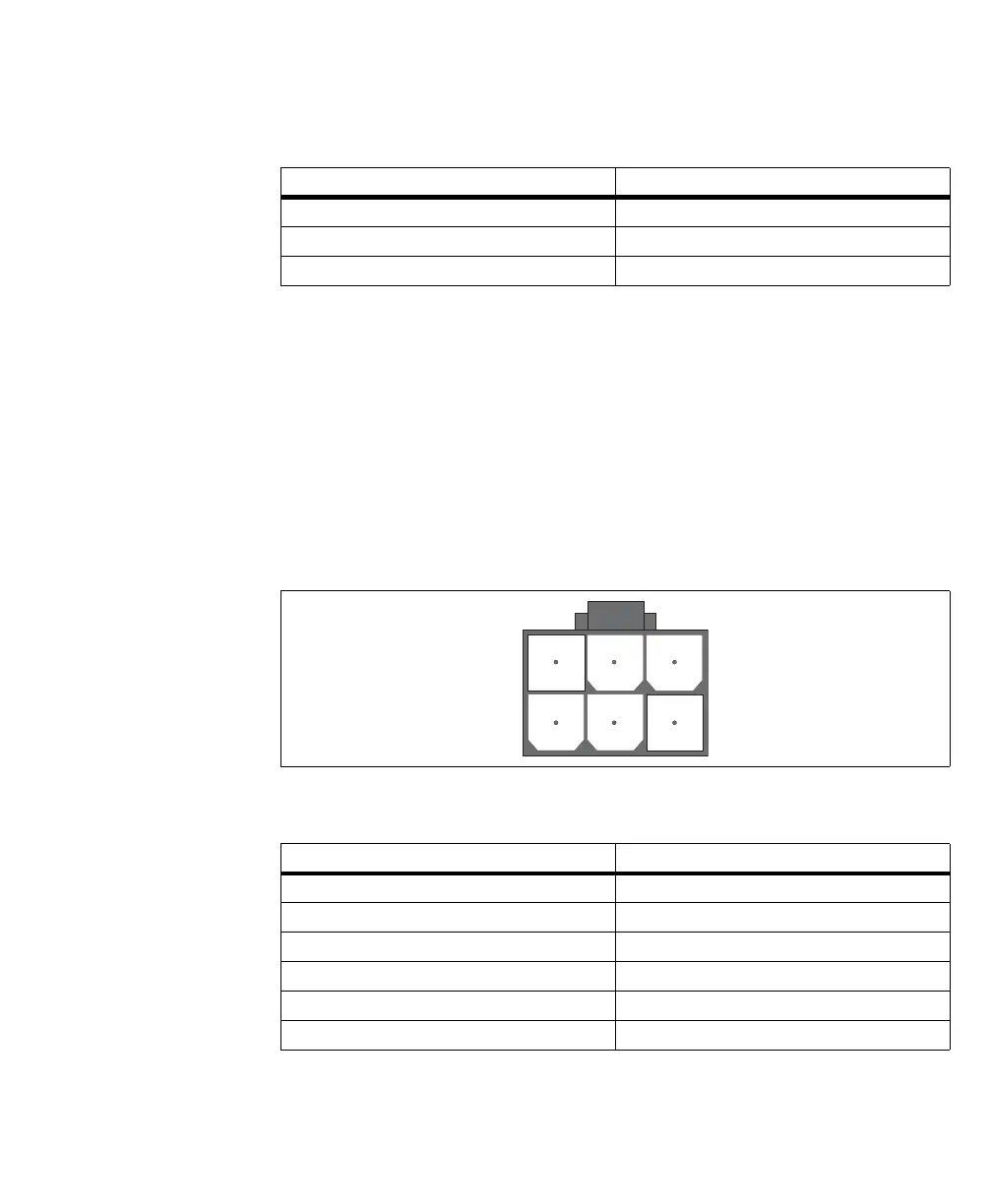

The pinout for the auxiliary 12 V power connector is as follows:
Mating information
Manufacturer: NorComp, Inc.
Connector: 180-015-203L001
Backshell: 970-015-010-011
Pin Description
1 +12 V
2 +12 V
3 +12 V
4 Ground
5Sense
6 Ground
321
6
5
4
