The Matrox Rapixo CXP board has the following connectors on its bracket:
• CoaXPress video input connectors. Used to receive video streams from the
CoaXPress video sources. These connectors are also used to transmit CoaXPress
trigger signals, as well as transmit and receive control and acknowledgment
messages.
• mDP connectors. Used to connect the mDP-to-HD15 adapter cable. The HD-15
connector on the adapter cable is called an external auxiliary I/O connector. This
connector is used to transmit and receive auxiliary signals.

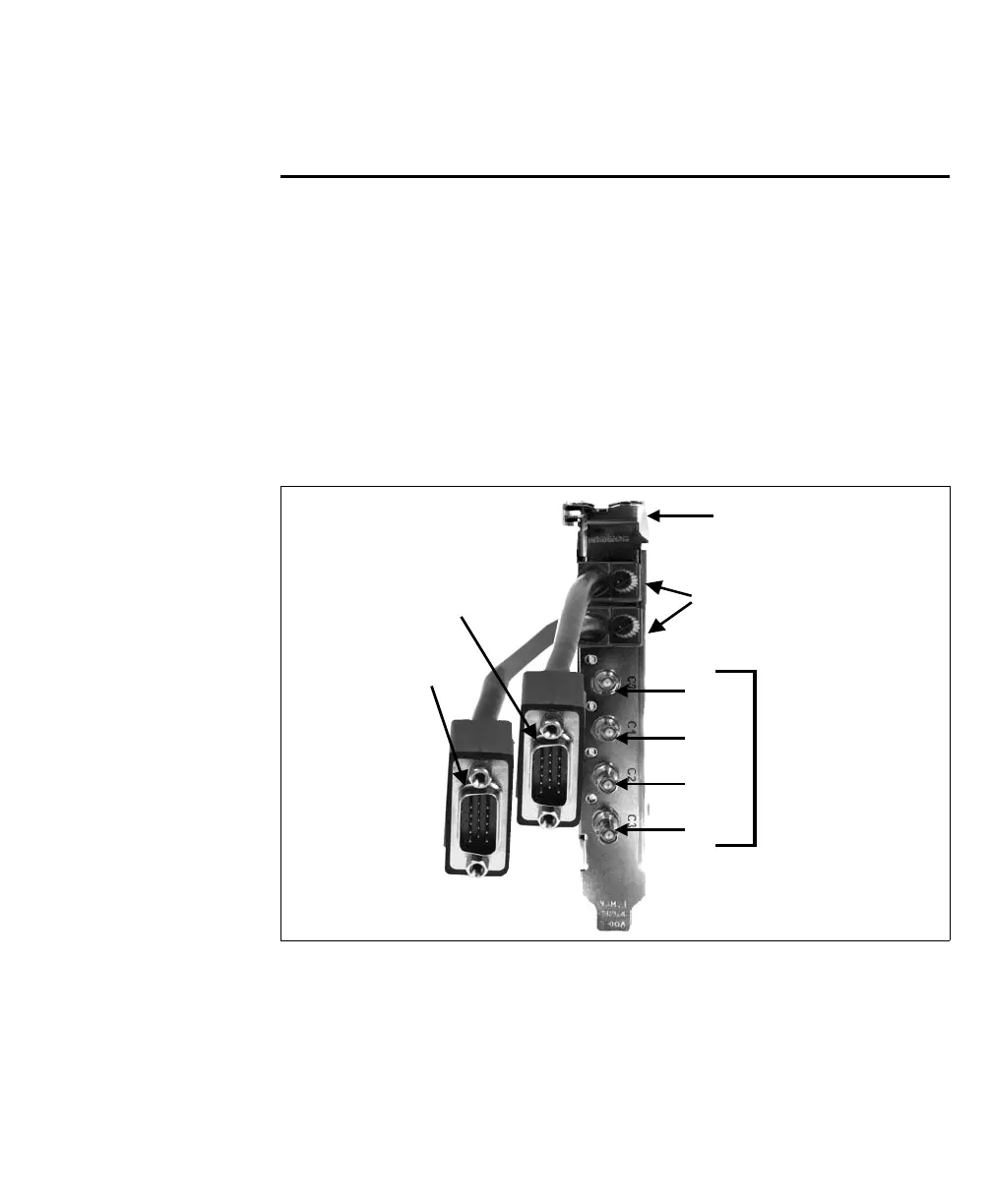

CoaXPress
video input
connectors
Auxiliary I/O
connector 0
Internal auxiliary
I/O connector
CXP 2
CXP 3
CXP 1
CXP 0
Auxiliary I/O
connector 1
Attached cables
To Next Page
