Chapter 3 Installation
- 27 -
Step
Item Task
5 Confirming drying
hopper condition

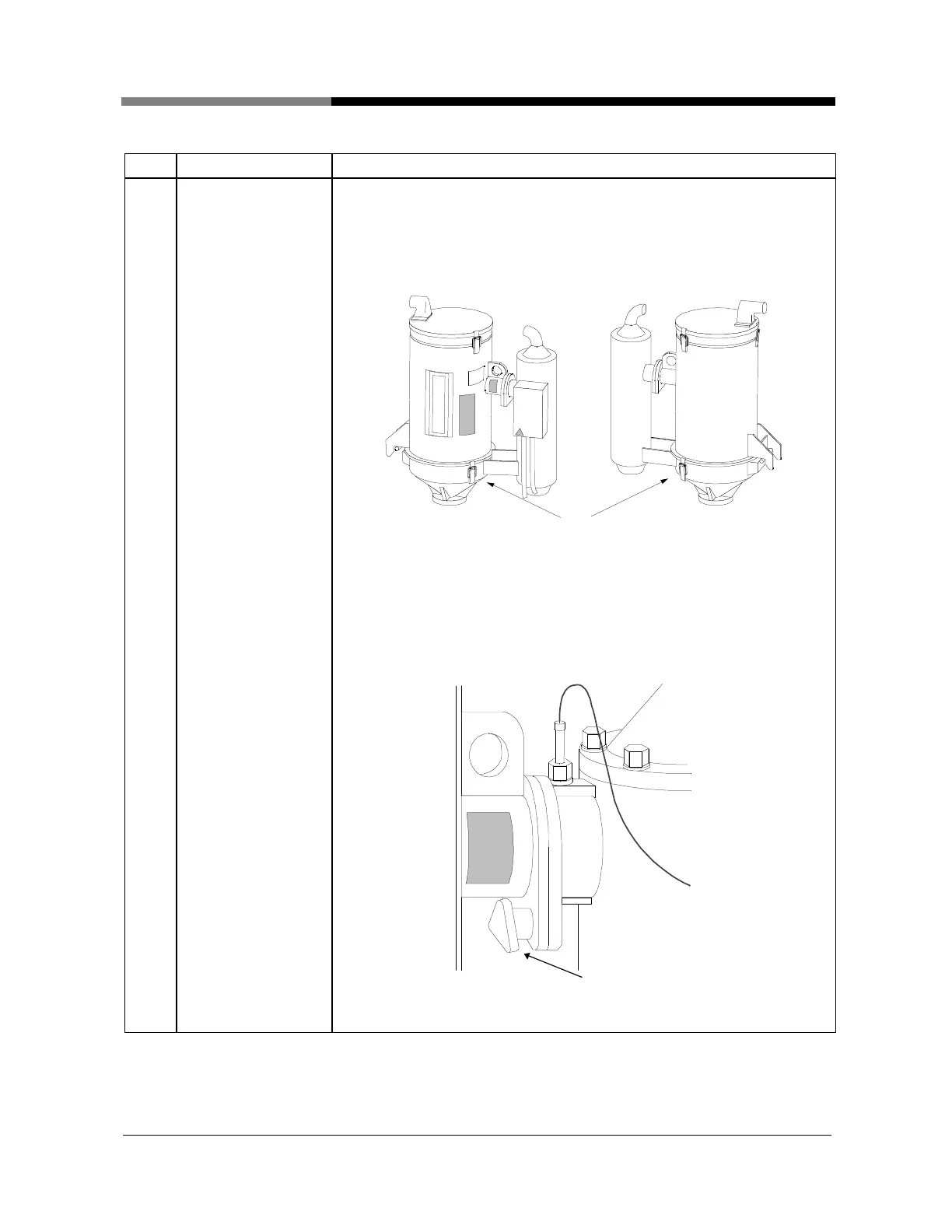

Please check before lifting and moving dehumidifying dryer main body.
• Please make sure that no drying material is in the drying hopper.
• Be sure that catchclips (2 pieces
) fastening drying hopper cylindrical
section and base are securely set as shown in Figure28.
(Only for HD-10～50 type)
catchclips
Picture 28
• Be sure that U-bolt of connect with the drying
section and hot air pipe are securely set as shown in Figure29.
(Only for HD-10～50 type)
Utype bolt
HD－10～50
Picture 29
To Next Page
