Chapter 4 Preparation for Operation
- 36 -
Step Task
4 After inspection and cleaning of inside, fix the removed parts again
Lid
Packing
b
Diffuser fixing part
Separator packing fixing part
b
Packing fixing part
a
Pin
Diffuser
※Please fix diffuser with the
pin
surely
.
Packing
a
Please set the packing in
the groove as shown in figure.
※
Please set the separator and
packing surely so as not to
Shift as shown in figure .
b
Please fix the
lid surely
with
the
catchclips (3 pieces)
catchclips
Lid

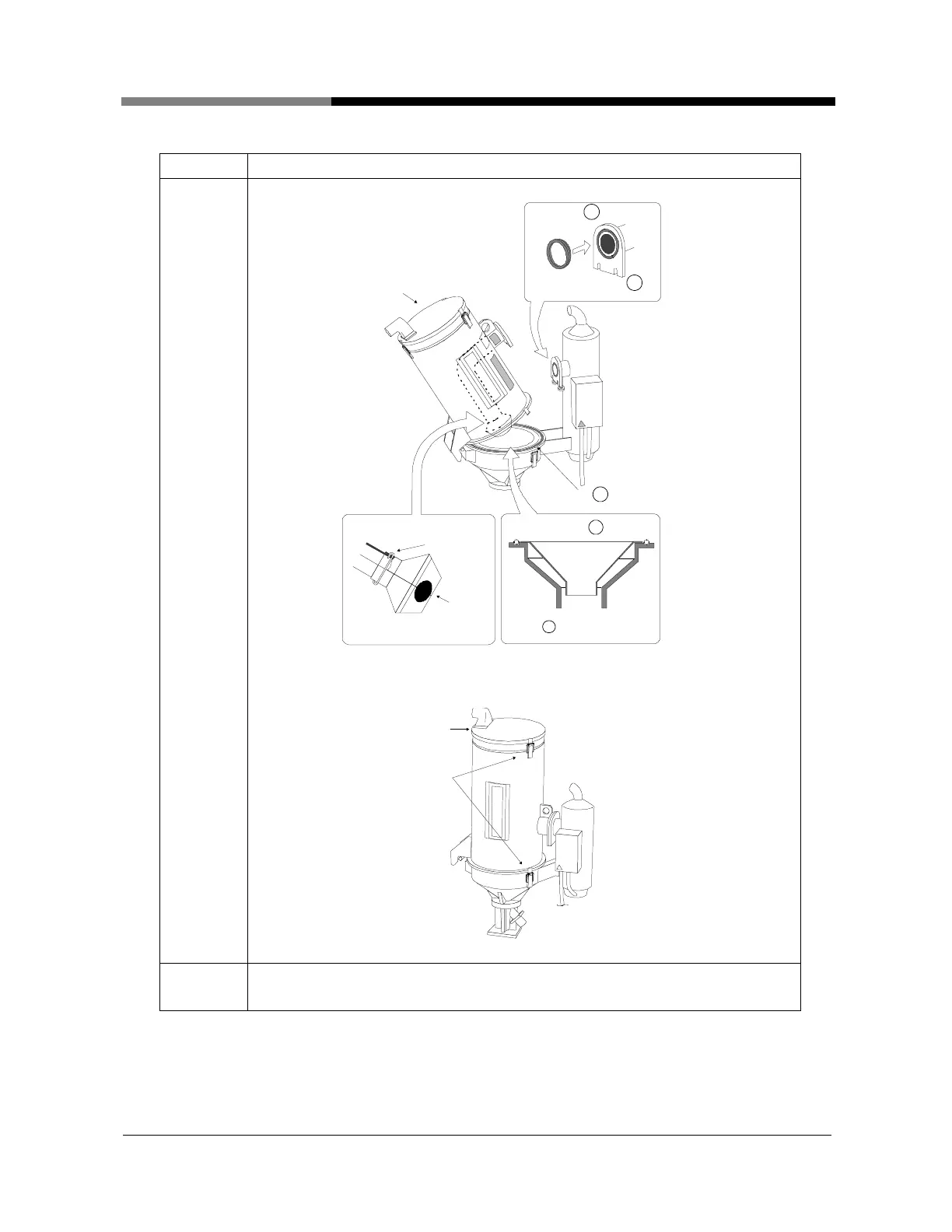

Picture 40
5 After assembly, close cylindrical section and according to procedure 1 or
procedure 2 and set with catchclips and U-bolt surely.
