BEFORE USE
BEFORE USE
PACKAGE CONTENTS

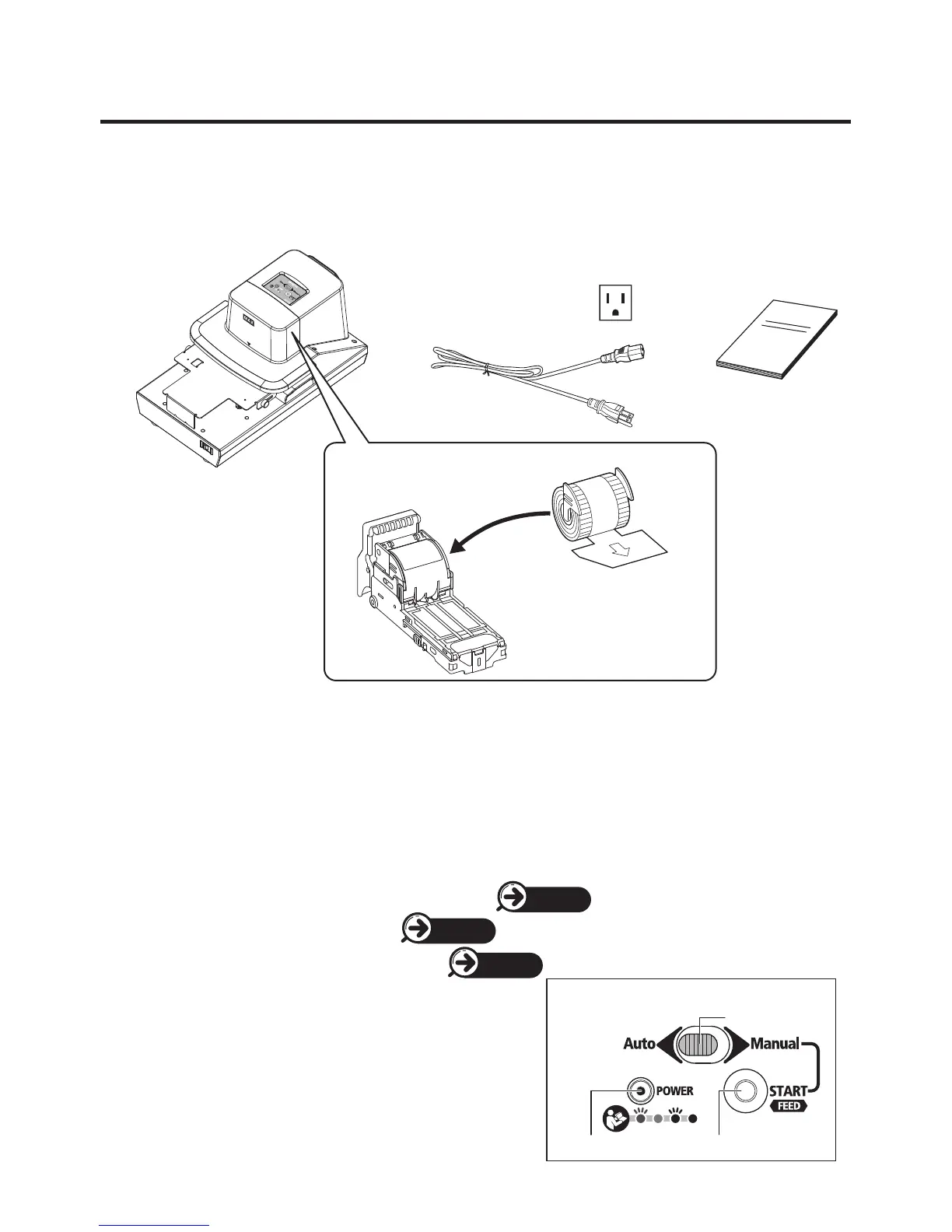

Unpack and check that the following items are all included.
⑤
Instruction manual
②
Power cord (3-pin plug)
①
EH-110F
* Be sure to connect a
grounding conductor
to a 3-pin plug
socket.
The plug is different
depending on each model.
③
Cartridge
* Already set in the main
body.
④
Staple refills
(No. 110FE)
* Already set in
the cartridge.
MAIN FUNCTIONS OF OPERATING
SECTION AND LAMPS
Selector switch: A switch to select Auto (automatic stapling) or Manual (manual stapling)
LED indication lamps:
Illuminated in green: Ready to operate.
Illuminated in red: Replace the staple rells.
Blinking in green: Feed a staple.
Blinking in red: Clear jammed staples.
Illuminated in orange: Set the cartridge in the
main body.
START button: Used for manually stapling the
paper or feeding a staple.
PAGE 12
PAGE 14
PAGE 15
Indications on Top of Main Body
Selector switch
START button
LED indication lamp
