Max EH-110F - Name of Each Section; Preparation

7
BEFORE USE

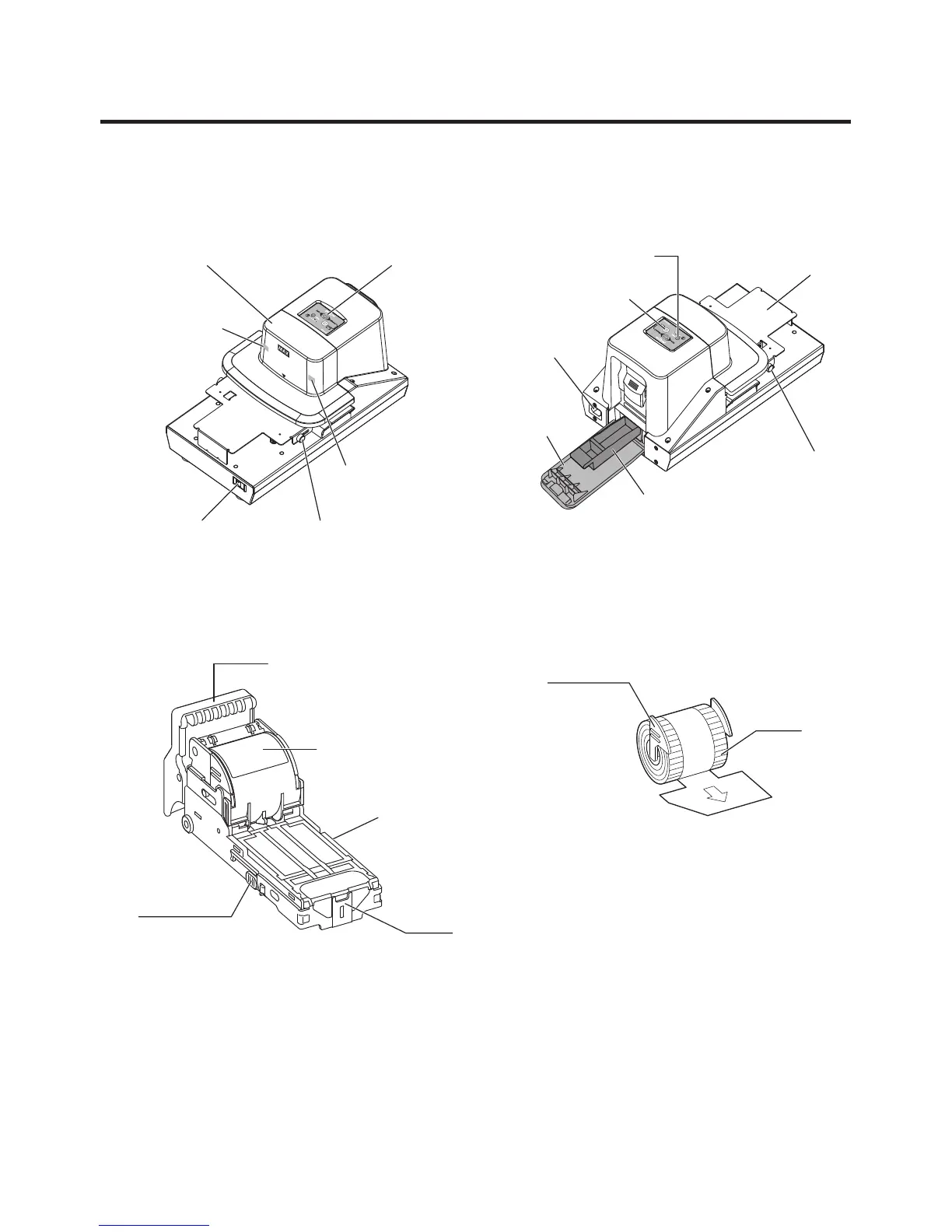

NAME OF EACH SECTION
[Front of the Main Body] [Back of Main Body]
[Cartridge] [Staple rells (consumable)]
Preparation
The cartridge and staple refills have already been set in the main body. Connect the
power cord to the power cord connection port of the main body and the plug socket, and
turn on the power switch. Once the green LED indication lamp is illuminated, the machine
is ready for operation.
Power switch
Selector switch
Front cover
Depth control slider
Stapling
position sensor
(red)
Stapling position
sensor (red)
Paper
table
LED indication lamp
START button
Staple trim tray
Depth control
slider
Rear cover
Power cord
connection port
Lever
Staple cover
Lock button
Face
plate
Lock button
Plastic rell
Staple
