Max ER-2500 - Parts Descriptions; How to Open and Close Front Cover; Display and Keyboard; Display Layout

- 6 -

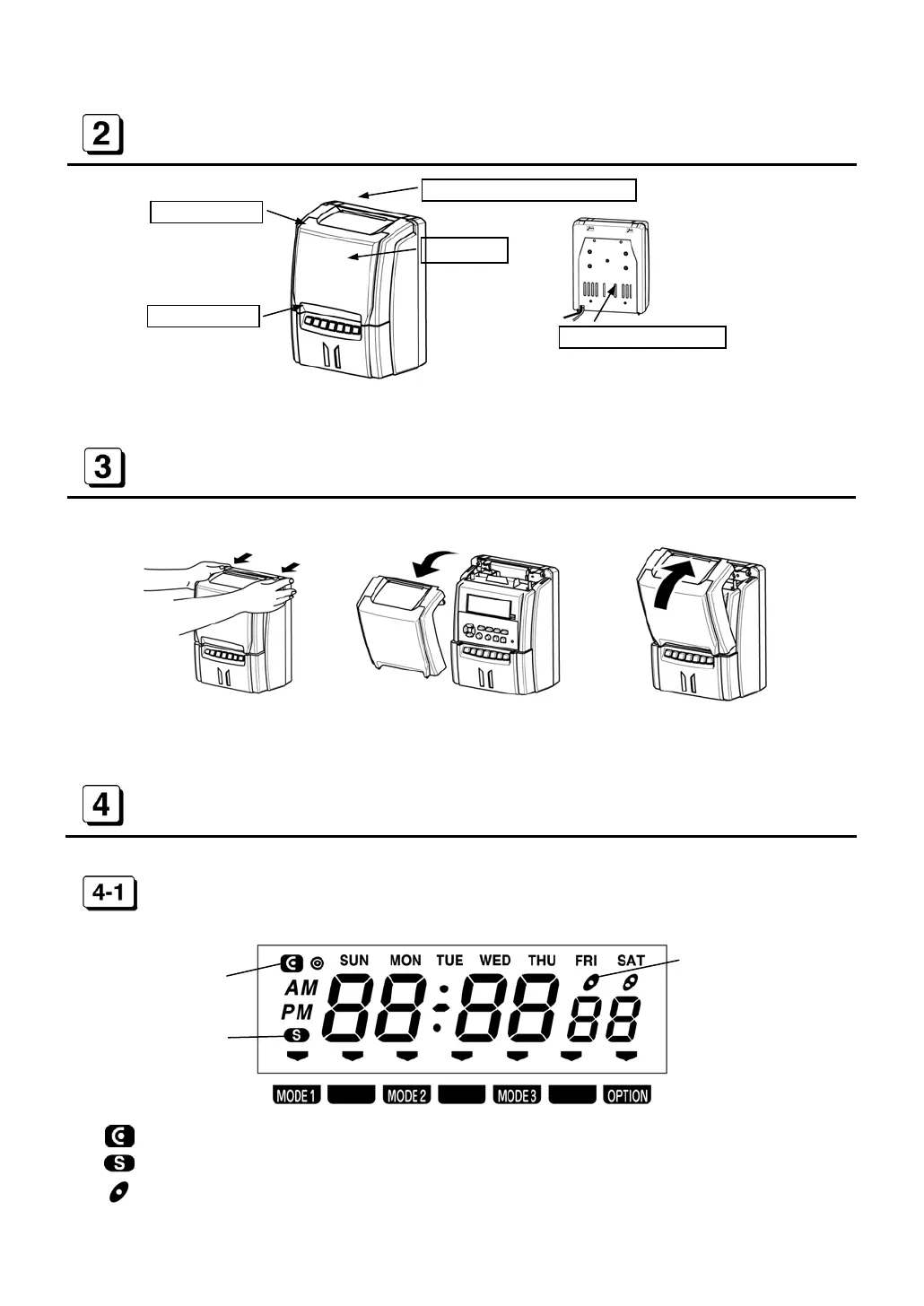

PARTS DESCRIPTIONS
HOW TO OPEN AND CLOSE FRONT COVER
Time card insertion slot
DISPLAY AND KEYBOARD
DISPLAY LAYOUT
(A) symbol appears under setting mode.
(B) symbol appears Daylight Saving Time activates.
(C) symbol appears while you set IN/OUT program for Special day.
Pull as illustrated above. Remove a front cover. Push as illustrated above.
Display
External ke
y
Front cove
r
Wall mountin
g
plate
(C)
(A)
(B)
