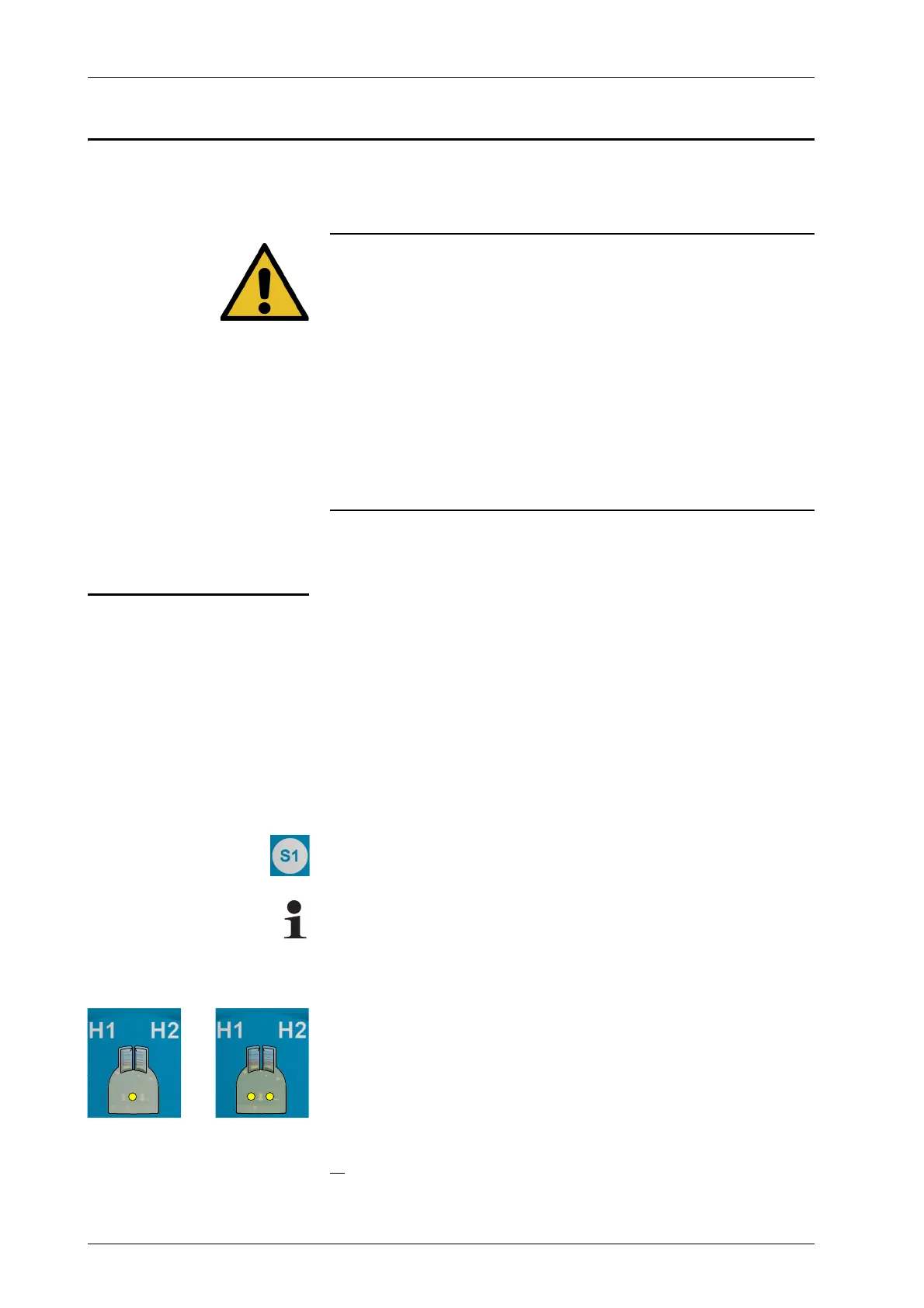

COMMISSIONING5 - 1
DSE-15 www.maxcess.euMI 1094 1
5 COMMISSIONING
WARNING
Unexpected movements of the machine may lead to injuries or
death.
The sensor must not be placed in operation unless it has
been securely mounted.
Commissioning must only be performed while the machine is
stopped and protected against being turned on again.
Make certain there is no one in the hazardous area of the
drives.
Setting up the sensor
and reflector Precondition:
– There must not be any material between the sensor and
reflector.
– The protector of the sensor and the reflector must be clean.
Setup 1. Switch the web guide controller to "Manual" operation mode
2. Align the light beam of the sensor to the reflector
3. Place a finger on the S1 key
Check: The green LED H2 is lit
Note:
If LED H2 is not lit, increase the coverage of your finger on
the S1 key, for example by using your thumb.
4. Do not remove your finger from the S1 key until the LED
display matches the adjacent bit pattern, alternating with it
Check: The green LED H2 goes out
The sensor performs the setup for the reflector
automatically.
5.
The sensor is now ready for operation.
