INSTALLATION3 - 2
DSE-15 www.maxcess.euMI 1094 1
Mounting location –Protection Class: IP65
– Operating temperature: 5°C ... 60°C
– Relative humidity: max. 90%, non-condensing
– Operating altitude above sea level: maximum 3000m
– Protected from vibrations
– Do not place close to strong magnetic fields:
The electronic components may be damaged.
– Do not place close to strong electrostatic fields:
The electronic components may be damaged.
– Not in places where there is a risk of explosions.
Dimensions
Mechanical fastening Drill holes are available on the housing for fastening the sensor
in place. A large variety of assembly options are possible in con-
nection with the various sensor mountings.
Note:
Faults such as tilting or a loosely attached sensor can lead to
imprecise guiding of the material web.
52.3
8
2
.
5
P
5.3(3x)
5.3
0
4.5
6.5
70
5
5
.
6
24.6
1 Red light beam
2 Drill holes for sensor bracket
3 Connection cable length 270mm (without plug)

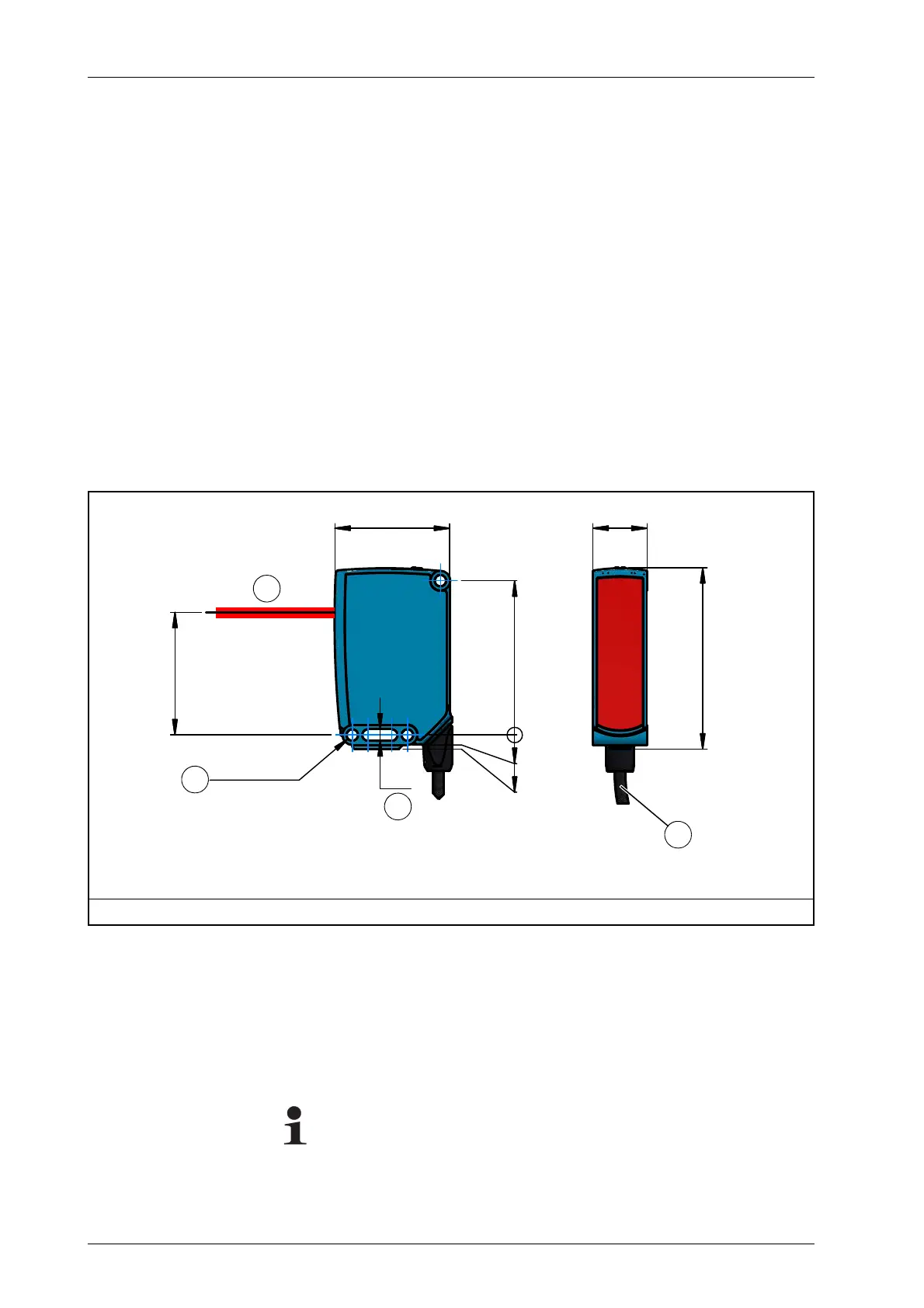

Figure 3.1: DSE-15 Dimensions
2
1
3
2
