INSTALLATION 3 - 3
DSE-15www.maxcess.eu MI 1094 1
Installation.fm
Procedure
1. Assemble the mounting bracket on the sensor using the
fastening material included with delivery
ATTENTION
Tighten the M5 fastening screws to a max. torque of
1,3Nm.

figure 3.2
2. Fasten the sensor onto the sensor bracket
Sensor bracket Type MO
figure 3.3
Sensor bracket Type MB figure 3.4
Special sensor brackets available on request
3. Slide the mounted unit onto the square bar and fasten it with
the star grip
4. Set up distance between reflector and sensor
page
3-5
5. Set up arrangement of reflector and sensor
page
3-6
6. Electrical connection
page
3-8
1 Tightening torque M
A
= 1.3Nm 2 Area free of metal

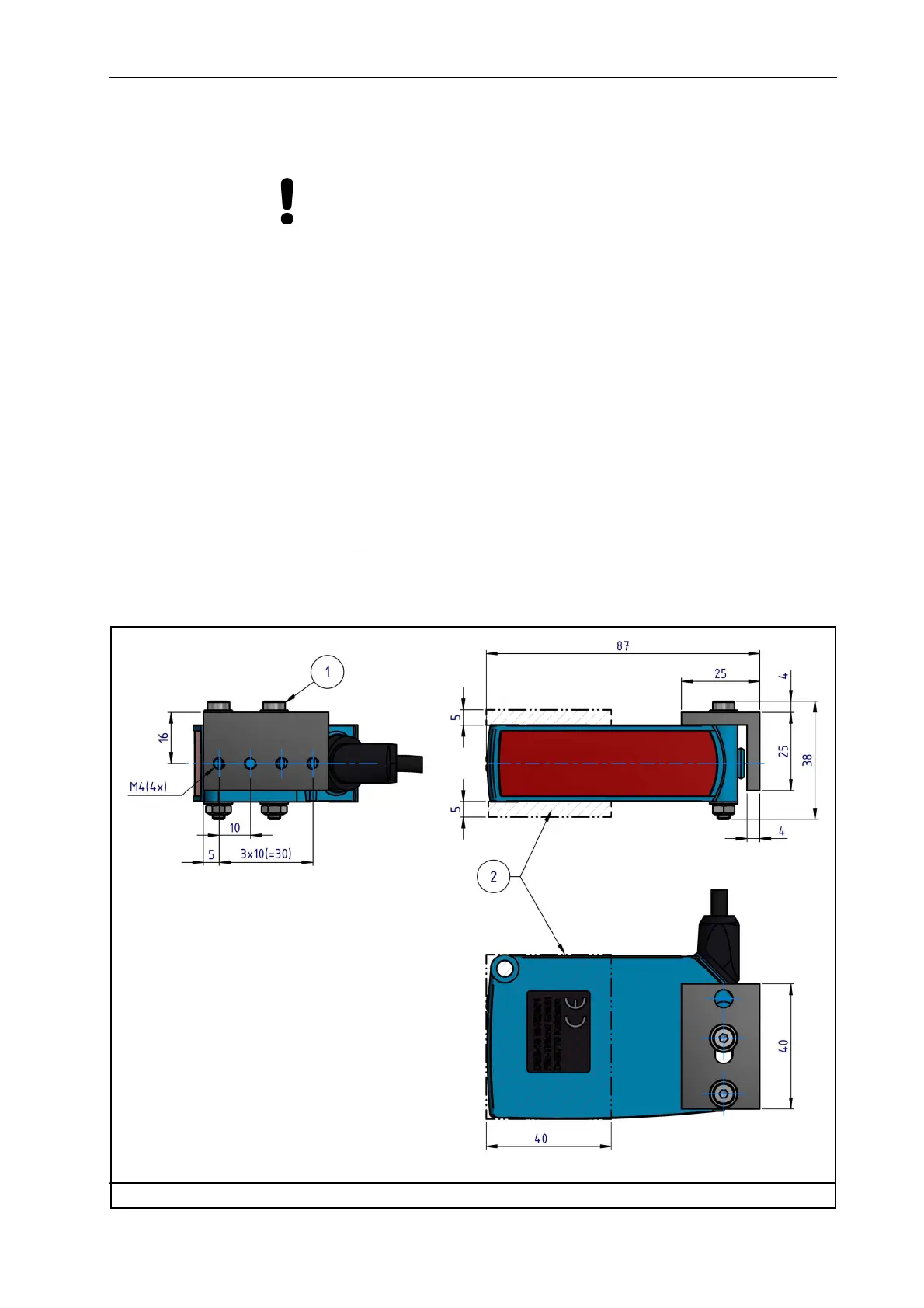

Figure 3.2: DSE-15 with mounting bracket
