INSTALLATION3 - 4
DSE-15 www.maxcess.euMI 1094 1

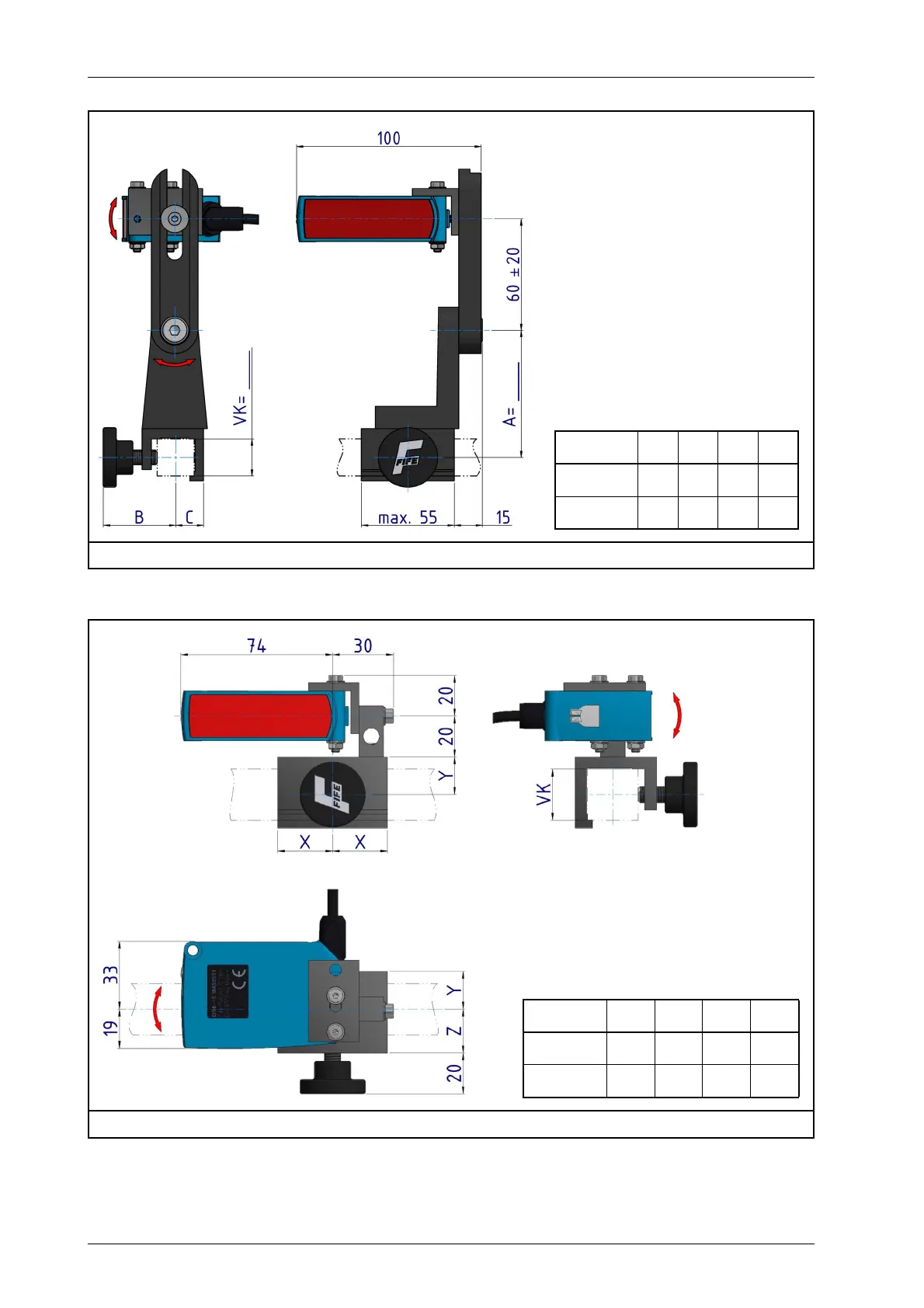

Figure 3.3: DSE-15 on sensor bracket type MO
Type A B C VK
MO-20/869391520
MO-25/871421925
Figure 3.4: DSE-15 on sensor bracket type MB
Type X Y Z VK
MB-20 25 15,5 17,5 20
MB-25 27 18,5 21,5 25
