7.9 Oil Circuit of Hydraulic System (Main Oil Circuit):
Refer to Fig 7-12 for principle of hydraulic system.
Refer to Fig 7-13 for oil circuit diagram of hydraulic system for 5-10t forklift truck.

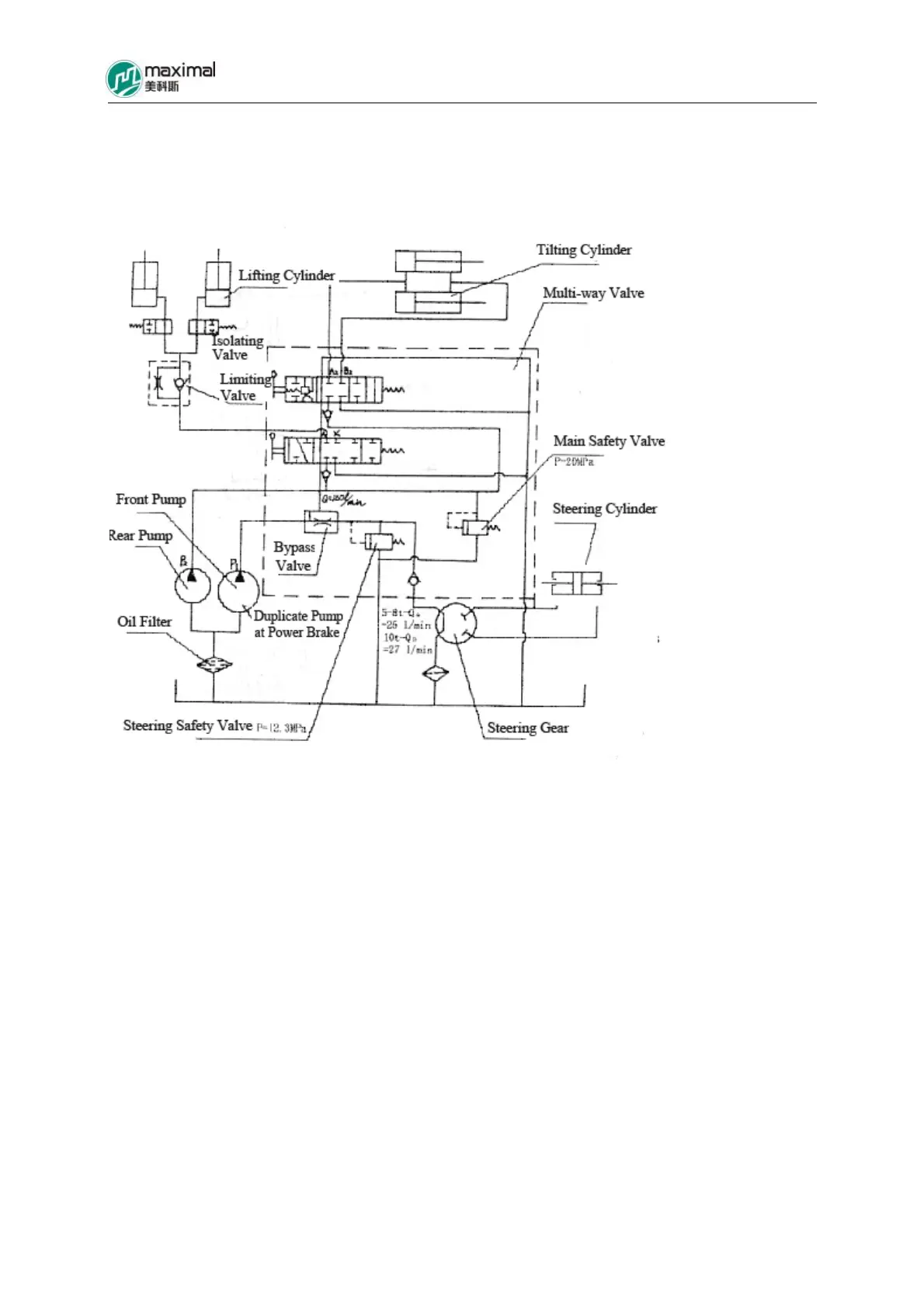

Fig 7-12 Schematic Drawing of Hydraulic System
