5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual

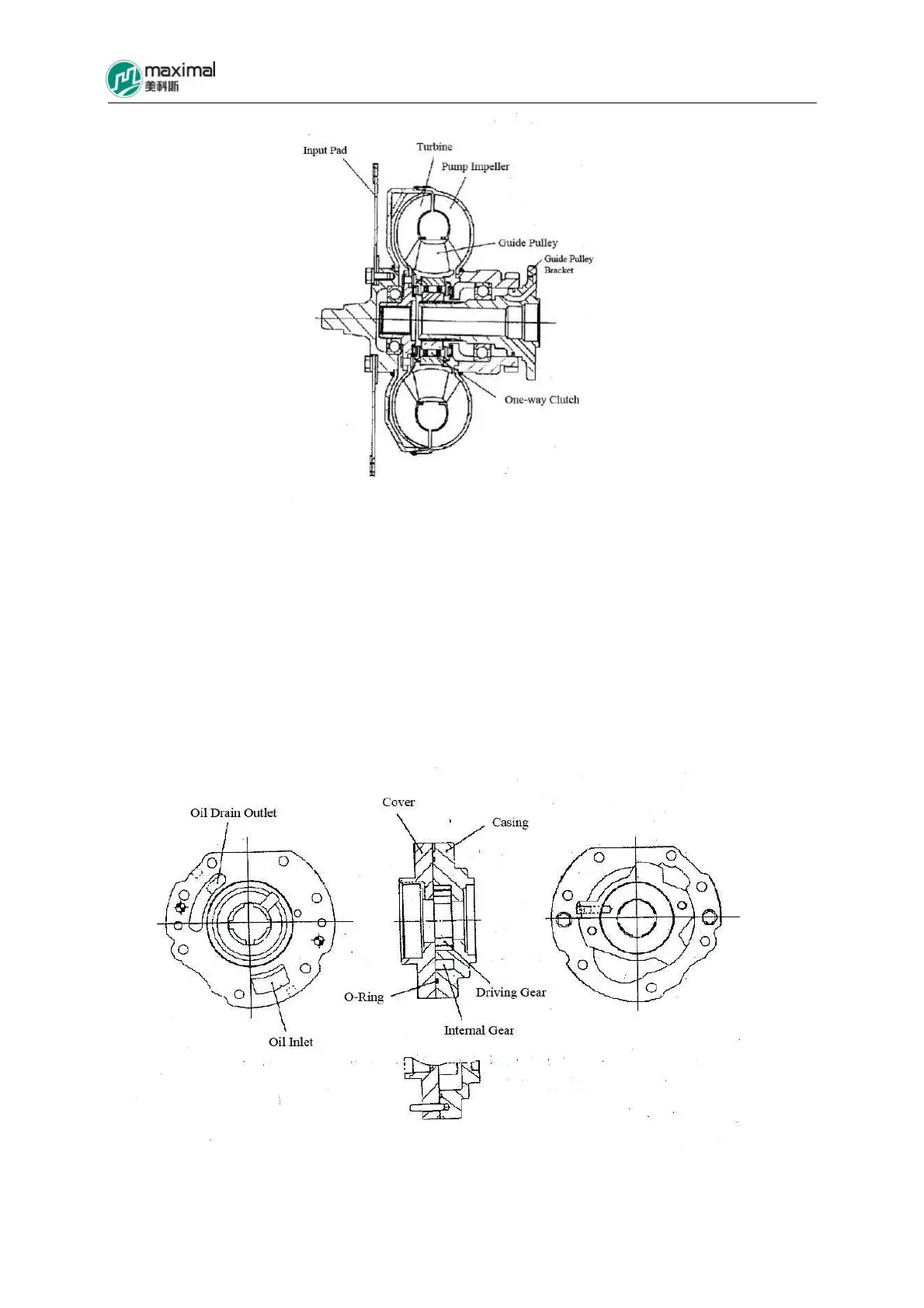

Fig 3-2 Torque Converter
3.3 Oil Feed Pump
Refer to Fig 3-3 for structure of oil feed pump.
Oil feed pump is composed of driving gear, and internal gear (driven gear), as well as housing,
and cover, installed on the upper end of torque converter case. The driving gear is actuated by
pump impeller, neutral-position gear, and driving gear of oil pump of torque converter, and
the oil feed pump supplies oil in the lower part of transmission to respective parts of the
transmission.
Fig 3-3 Oil Feed Pump
