5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual
6.1 Steering Unit
6.1.1 Overview
The steering unit is a cycloid full hydraulic steering unit, able to convey the pressure oil from bypass
valve to steering cylinder according to the size of the rotating angle for the steering wheel in a
measuring way, to achieve the rear wheel steering. When engine is flamed out, the oil pump is unable
to supply oil, and steering may be achieved manually. Refer to Fig 6-2 for the schematic drawing of
full hydraulic steering system, and refer to Fig 6-3 for the drawing for the structure of steering unit.

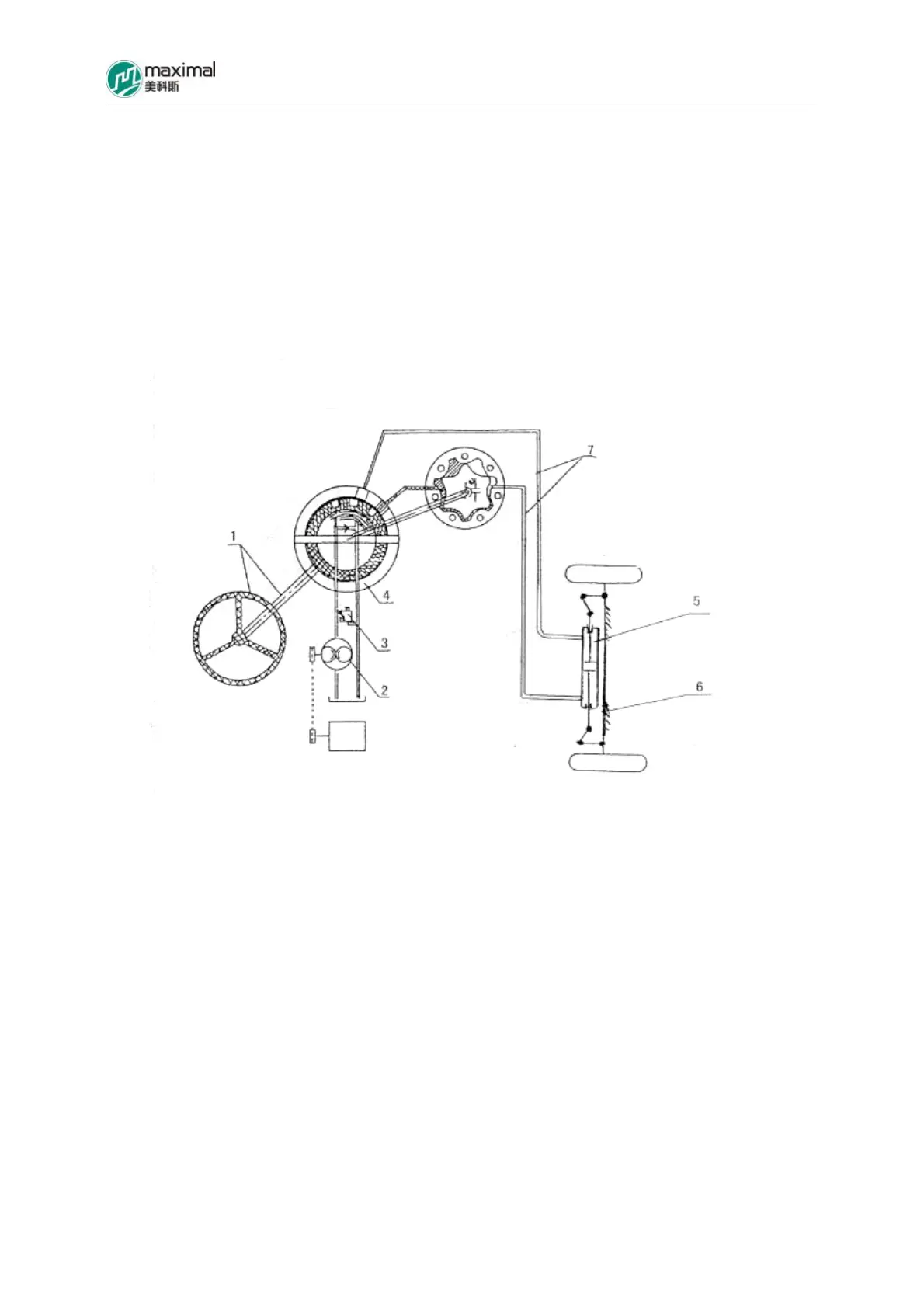

Fig 6-2 Schematic Drawing for Fully Hydraulic Steering System
1. Steering Wheel and Steering Shaft 5. Steering Cylinder
2. Oil Pump 6. Steering Axle
3. Flow Rate Control Valve 7. Flexible Pipe
4. Hydraulic Steering Unit
