5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual
9. Lifting System
Refer to Table 9-1 for main technical parameters.

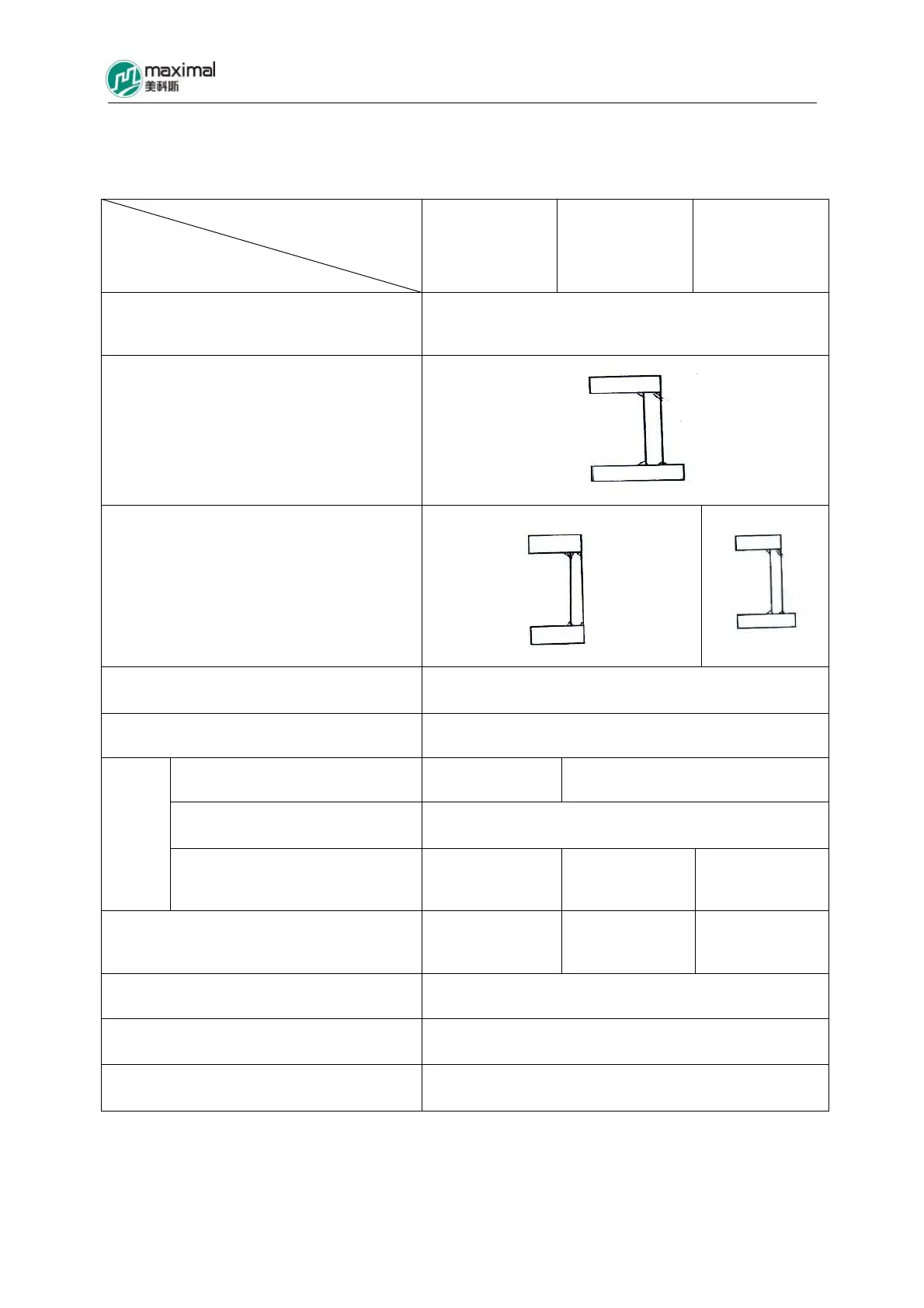

Table 9-1
Forklift Truck
Item 5-7t 8t 10t
Type of Mast
Rolling Type, Welded Mast with Free Lift and 2-stage
Telescopic Type
Section Shape of Inner Mast
Section Shape of Outer Mast
Max Lifting Height (Standard Mast) 3000 ㎜
Front-Back Tip Angle (Standard Status) 6°/12°
Outer Diameter of Main Roller ㎜ Φ151.5 Φ183.5
Outer Diameter of Side Roller ㎜ Φ82
Roller
Outer Diameter of Side Roller (on
Fork Carriage) ㎜
Φ102 Φ109.7 Φ119
Lift Chain (Leaf Chain)
LH2044，4×4
Pitch 31.75
LH2444，4×4
Pitch 38.1
LH2844，4×4
Pitch 44.5
Fork Lifting Mode Hydraulic Type
Mast Tipping Mode Hydraulic Type
Adjusting Mode for Fork Spacing Manual
