5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual
IV. Structure, Principle, Adjustment, and Maintenance of Forklift Truck
1. Power System
1.1 Overview
Power system mainly includes engine, fuel system, cooling system, and exhaust system.
Engine is installed on truck frame through rubber pads, to reduce vibration. Engine, torque

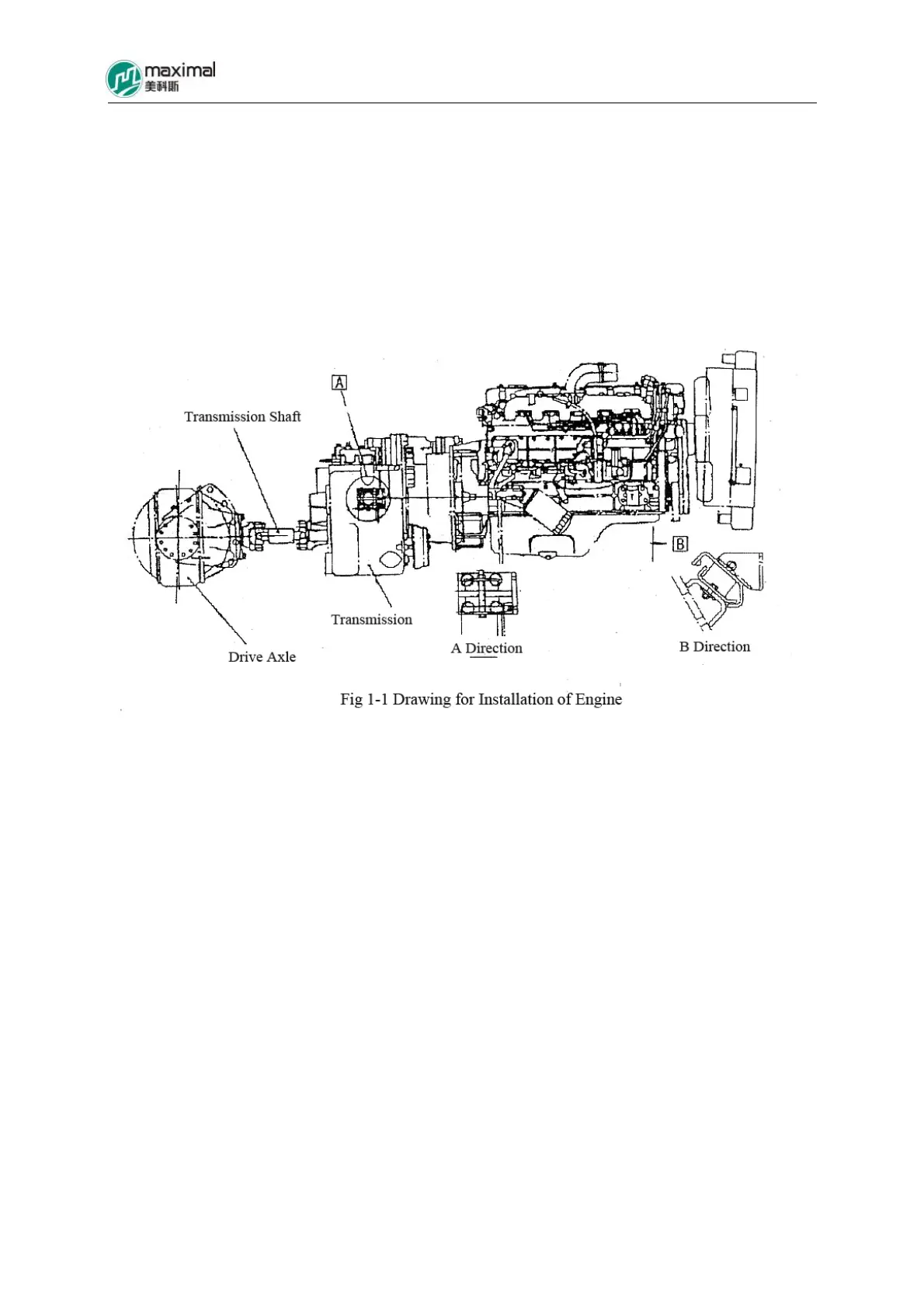

converter, transmission, transmission shaft, and drive axle are formed into a unit. Refer to Fig
1-1.
