5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual
1.3 Fuel System
Fuel system consists of fuel tank, filter, and fuel sensor device.
1.3.1 Fuel Tank
Fuel tank is a welded structure, connected with truck frame into a whole, mounted on the left
side of the truck frame, with fuel tank cover plate on top, and fuel sensor mounted on the plate.

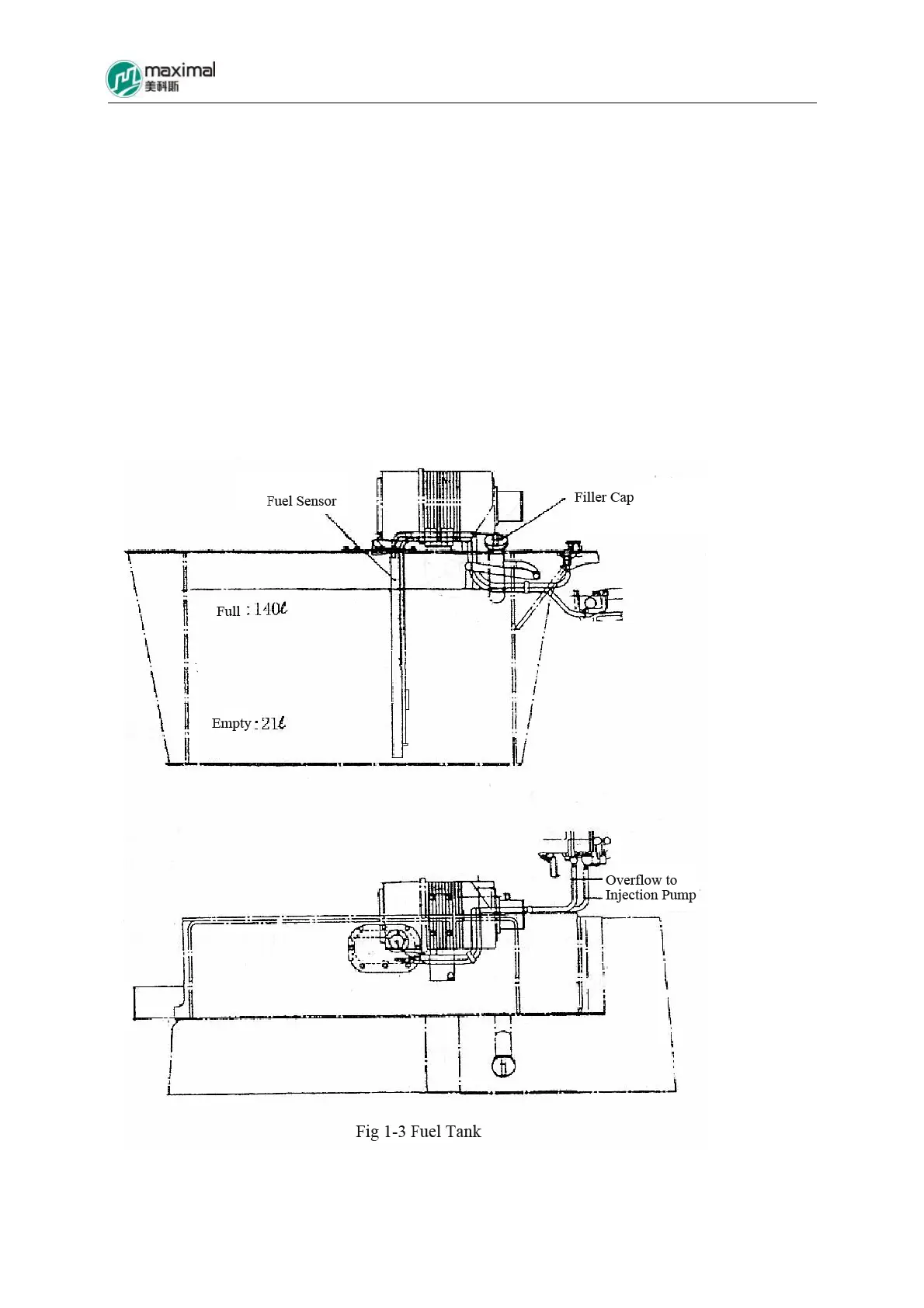

Refer to Fig 1-3.
1.3.2 Fuel Sensor Device
The function of fuel sensor device is to transform the oil quantity stored in fuel tank into
current through up and down movement of float, to be ultimately responded to the fuel gage
on instrument panel, to allow people to visually understand the fuel quantity inside the fuel
tank. Refer to Fig 1-4.
