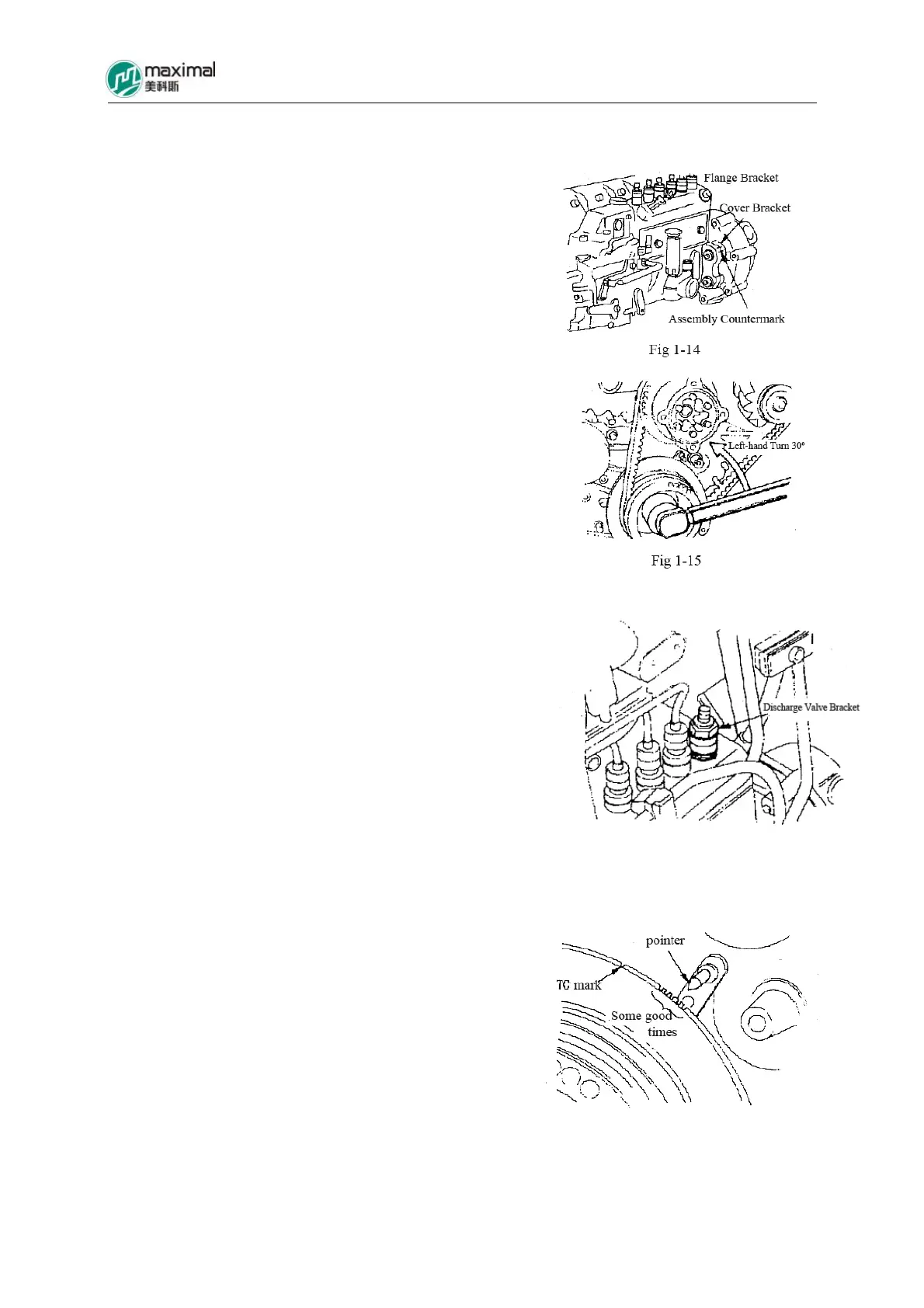

1.5.7 Confirmation of Ignition Time for Fuel Injection
(1)Firstly confirm whether or not the “Assembly
Countermark” in the place of flange for the injection
pump is consistent. Refer to Fig 1-14.
(2)Put the 1
st
cylinder at the position of upper dead
center for compression stroke, and turn the crankshaft
from this position in clockwise direction by about 30°.
Refer to Fig 1-15
(3)Loosen the injection pipe of the 1
st
cylinder, then
detach the spring and discharge valve on the bracket of
discharge valve, and then mount the bracket for
discharge valve on the fuel injection pump. Refer to Fig
1-16
Fig 1-16
(4)Slow turn the crankshaft in the clockwise direction,
at the same time while fuel feed pump is compressing
and delivering fuel, and stop turning the crankshaft
when the level of the first end for bracket of discharge
valve has risen to the stop position. Confirm the mark
of pointer symbol. Refer to Fig 1-17.
Fig 1-17
