5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual

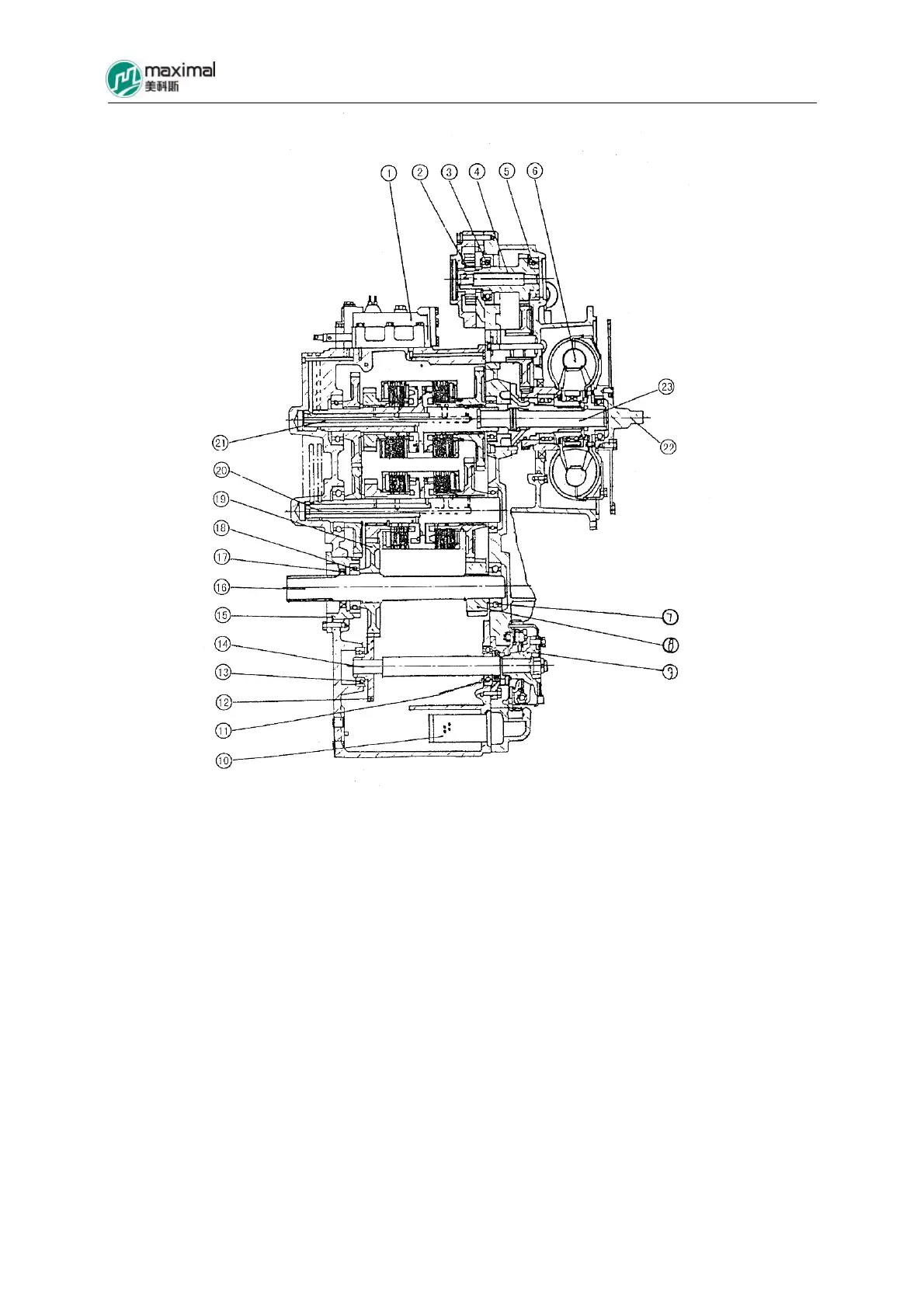

Fig 3-1 Hydraulic Transmission
1. Control Valve 9. Parking Brake 17. Oil Seal
2. Oil Feed Pump 10. Oil Filter 18. Ball Bearing
3. Ball Bearing 11. Oil Seal 19. Gear
4. Shaft 12. Gear 20. Backward Gear Clutch Subassembly
5. Ball Bearing 13. Ball Bearing 21. Forward Gear Clutch Subassembly
6. Torque Converter 14. Shaft 22. Elastic Pad (Input Pad)
7. Ball Bearing 15. Bearing Cover 23. Transmission Input Shaft
8. Gear 16. Output Shaft
